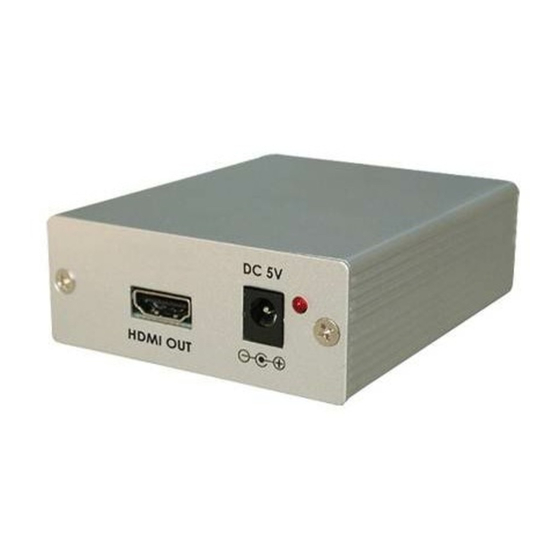

- Page 1 CP-268S DVI/Coaxial to HDMI Converter Operation Manual CP-268S...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................1 2. Features..................1 3. Package Contents..............1 4. Operation Controls and Functions......... 2 4.1 Front Panel................. 2 4.2 Rear Panel................3 5. Pin Configuration..............3 6. HDMI Output Pin Assignment ..........3 6.1 General Specifications............. 3 6.2 Supports Resolution............ -
Page 3: Introduction
1. Introduction This converter box is converts DVI/Coaxial to HDMI output. It enables to connect the DVI source and digital audio to a HDMI digital display. This converter box also does signal amplification and equalization for incoming TMDS data before re-transmitting them with optimal quality regardless of the incoming signal quality. -
Page 4: Operation Controls And Functions
4. Operation Controls and Functions 4.1. Front Panel 1. DVI input: Connect the DVI input port to the DVI output port of your source equipment such as DVD player or set-top-box. It supports only DVI-D signal via a DVI-I connector. 2. -
Page 5: Pin Configuration
5. Pin Configuration A. DVI-D Input Pin Assignment DVI-Digital(DVI-D): Supports digital-only connections between the host computer and display. This interface is designed for a 12 or 24-pin connection to enable single or dual-link mode activation. 8 C1 C2 Digital only connector pin assignments Signal Assignment Signal Assignment Signal Assignment... -
Page 6: Specifications
7. Specifications Input ports 1 x DVI (only DVI-D supported) , 1 x Coaxial (S/PDIF) Output port 1 x HDMI Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 105(W) x 76(D) x 30(H) Weight(g) Chassis Material Aluminum Silkscreen Color Silver Operating Temperature 0°C ~ 40°C... - Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20080324 MPM-CP268S...
