Adjustments

Your scooter has been pre-adjusted to meet most customers' needs, however your scooter includes
several adjustments to adapt it to specific height and width requirements. These adjustments include:
• Adjusting the Seat (armrest width and armrest/backrest angles)
• Adjusting the Handlebar and Dash Position
• Adjusting the Footplate (600C Chair models only)
Instructions to perform these adjustments are presented in the following section:

Adjusting Armrest Width

The two armrests of the seat can be adjusted to different
widths. Armrest adjustments are shown in Illustration 4.
Follow these instructions to adjust armrest width:
• Loosen corresponding knob behind the seat
• Adjust width by pulling armrest out from seat to
desired position
• Re-tighten knob to secure armrest at selected
width
Be sure to repeat armrest adjustment on other side
before riding.

Adjusting Armrest Angle

In addition to width adjustments, the armrests of the seat
can be set at different angles for greater comfort. Follow
these instructions to adjust armrest angle.
• Lift armrest to full up position.
• Locate adjustment bolt within armrest joint. Turn
bolt to vary armrest angle (wrench may be needed).
• Put armrest down into riding position and test for
comfort before riding.
Rascal R600 Scooter Owner's Manual
EMC Part: 19271200 • Rev. 03 • 06/01/2003
13
MOVE TO
ADJUST
LOOSEN
KNOBS
19271200/4

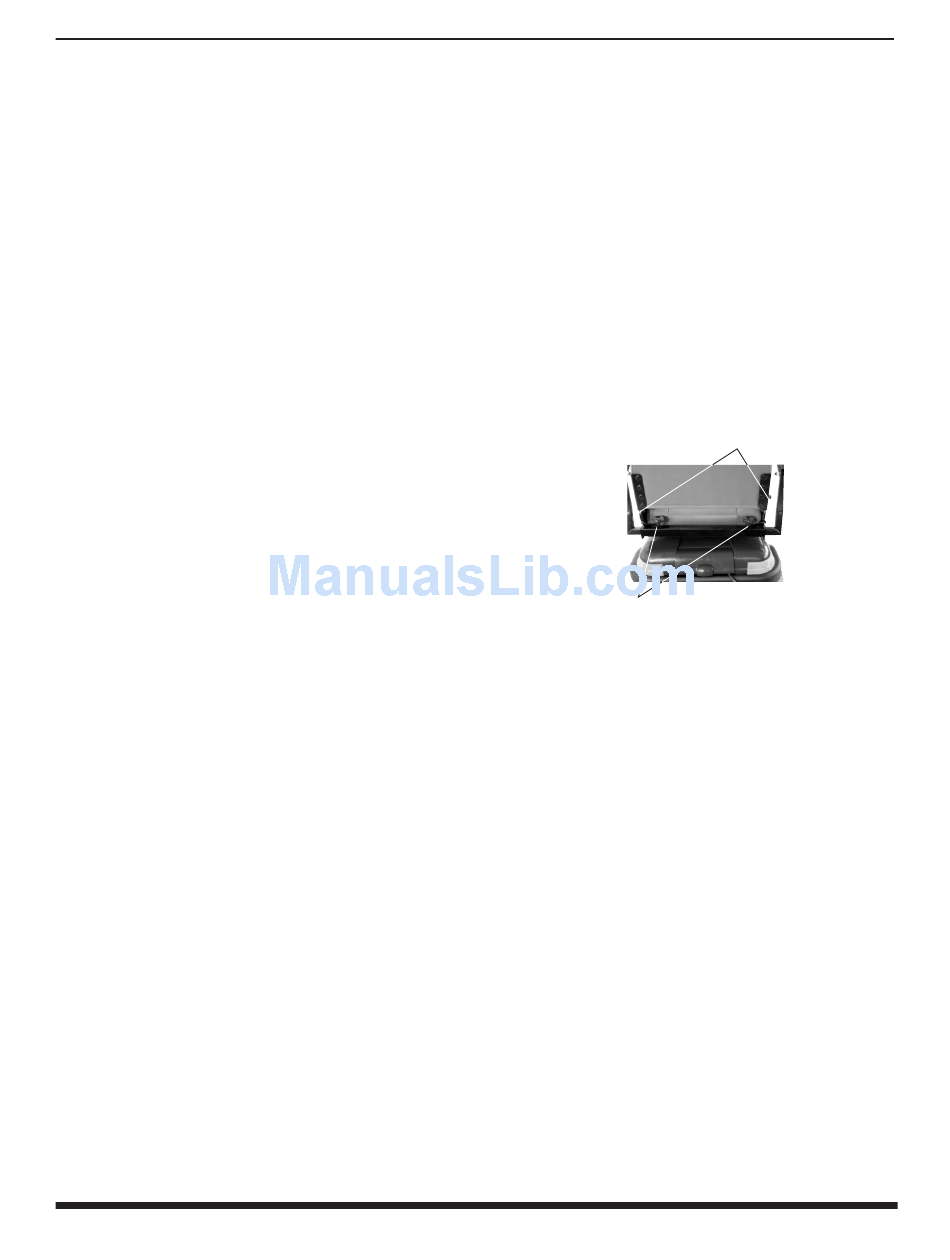

Illustration 4 — Armrest Adjustments
