- Page 1 Rascal Ventura Scooter Owner’s Manual & Service Record Rascal Ventura Electric Mobility Euro Limited, Canal Way, Ilminster , Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk Issue 3: 01/2014...
- Page 2 Electric Mobility Euro Ltd has designed this powerful, durable, medium to long range, road-capable scooter for comfort during outdoor use. The Ventura scooter is of fixed frame construction and not designed to be fully dismantled for transportation, however it is compact enough to fit into some larger cars, MPVs and vans.
-
Page 3: Table Of Contents
Contents Dealer information Features and layout Safety information Intended use Safety Information Controls Freewheel Device Brakes Armrest adjustment Seat-back angle adjustment Swivel seat Seat position adjustment Tiller folding Transferring in and out of your scooter. Operation Driving the vehicle Driving the vehicle - hazards Transporting your scooter Assembling your scooter following transportation Battery charging... -
Page 4: Dealer Information

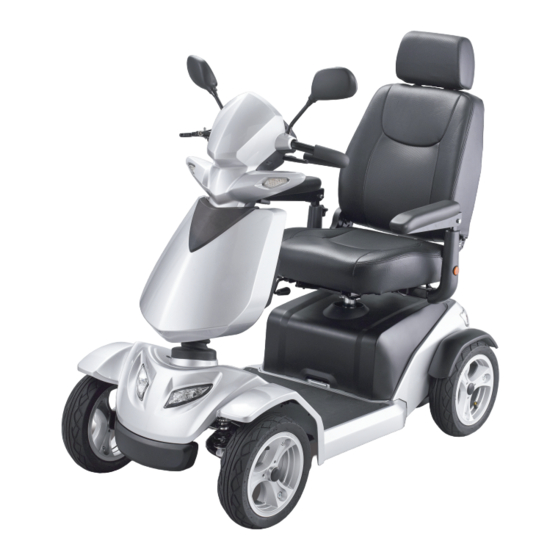

Electric Mobility Euro Limited Canal Way, Ilminster, Somerset TA19 9DL Company Registration in England No. 2419231 Features and Layout Photo shows the Rascal Ventura scooter. See the technical specification for full details. Fold down lever Rear view mirrors adjustable backrest... -
Page 5: Safety Information
- see Technical Specification Sheet) who require a robust, comfortable scooter that is ideal for shopping and other visits. The Rascal Ventura is a medium to long range 8mph scooter which is suited for travel on public roads when this is required. When driven on pavements and other pedestrian areas, your scooter should be set on the low preset speed setting (max 4 mph - see controls section of this manual). -
Page 6: Safety Information
Warning ! Sitting for long periods may increase the chance of thromboses or pressure sores. Users prone to such conditions are advised to take medical advice. Warning ! The Rascal Ventura scooter has been designed and tested for drivers with weights up to those in the Technical Specification Sheets. These weights should never be exceeded. - Page 7 Warning ! Battery Charge Level. Before driving off, always check the battery indicator. If you are in any doubt, ensure all the batteries are fully charged before starting on a journey. Warning ! Castoring. Be aware that, if you set off when the front wheels are not straight, the initial movement could be partially sideways.
-
Page 8: Controls
"I" position. 4. Horn: Press the button and the horn will sound, if power is on. Release and the horn will cease. Rascal Ventura Scooter Owner's Manual and Service Record... - Page 9 5. Ignition Key: Remember to remove the key when not in use. Do not leave the ignition on when not in use, especially when charging the vehicle (Fig.1). Note: You may need to press the ignition key gently inwards before it will allow itself to be turned. 6.
-
Page 10: Freewheel Device
16. USB Accessory socket outlet: The Rascal Ventura is equipped with a back-lit USB accessory outlet that can provide power for charging phones, tablet computers etc. This outlet provides 5 Volts DC at a maximum current of 3 Amperes. Make sure your accessory does not exceed the current available. -
Page 11: Brakes
Brakes There are 3 braking systems. The first works with the finger controls. When the finger control is released the scooter will automatically brake and bring the scooter to a stop. When the scooter stops the automatic parking brake will engage. This will stop the vehicle rolling forward or backward. When you start the brake will automatically disengage. -
Page 12: Armrest Adjustment
Pull the lever and fold the seat forwards. Warning! Make sure you are ready for the seat back to release as you could topple backwards a little if taken by surprise! Rascal Ventura Scooter Owner's Manual and Service Record... -
Page 13: Swivel Seat
Swivel seat This allows easy access 1. To operate, locate the release lever under the seat (Fig.11). 2. Pull the lever up and the seat will release allowing it to rotate. 3. Release the lever and the seat should lock automatically, but always check it has. -
Page 14: Transferring In And Out Of Your Scooter
Suitable clothes should always be worn. A high visibility jacket should be considered if you are in poor visibility conditions or intending to drive on the road. Remember not to use the scooter in poor light or darkness. Rascal Ventura Scooter Owner's Manual and Service Record... -
Page 15: Driving The Vehicle
Driving the Vehicle Warning! Read this before driving the vehicle! Whether or not this is your first mobility vehicle, please read these guidelines as all vehicles differ. Failure to do this may cause damage to you, a third party or the vehicle. Before you set out, do check the weather forecast. -
Page 16: Driving The Vehicle - Hazards
– If there is a blind corner sound the horn. Tip: The Rascal Ventura Scooter is equipped with an inertia sensor that will automatically reduce the scooter speed during potentially dangerous cornering. If you feel power loss during a very tight turn, this is quite normal. -
Page 17: Transporting Your Scooter
Turning Circle: Practice manoeuvring your scooter so you can judge the turning circle. This is important to avoid tipping off kerbs or for negotiating tight spaces. Bad Weather: If it is snowing or icy stay at home! Remember that ice, snow and slippery surfaces such as manhole covers, wet grass and drains could affect braking and steering. - Page 18 Do not attempt to lift any of the scooter components unless you are capable of doing so. The weight for each component is shown in the Technical Specification (page 27). Warning! Do not attempt to lift the chassis un-assisted - back or other injury may result! Rascal Ventura Scooter Owner's Manual and Service Record...
-
Page 19: Assembling Your Scooter Following Transportation
Assembling your Scooter following Transportation Warning! Assembling the scooter involves lifting and handling heavy parts. Your scooter is not designed for unassisted loading into and out of a car or similar vehicle. Specialist ramps and hoists are available for transferring the scooter into and out of a vehicle. Your dealer should advise you on the best way to assemble your scooter. -
Page 20: Battery Charging
Always ensure that the lamp shows green before switching off and disconnecting the charger at the mains. Rascal Ventura Scooter Owner's Manual and Service Record... - Page 21 Connection Instructions When you receive your vehicle the batteries are only partially charged – always fully charge them before use, preferably over-night. Place your machine in an area that is dry and well ventilated. Make sure a power point is nearby. Check the vehicle is switched off and the key removed.
-
Page 22: User Maintenance
• Does the vehicle perform as well as it did when it was new? • Are there noises or rattles that were not there before? • Are there any signs of damage, corrosion or cracking? Rascal Ventura Scooter Owner's Manual and Service Record... -
Page 23: Scooter Diagnostic Functions
Scooter Diagnostic Functions Your Scooter Controller provides diagnostic information in the form of number and/or symbol codes. The spanner symbol will appear on the LCD display if a fault is detected and a number in the range 1 to 10 will be displayed. -
Page 24: Troubleshooting Guide
This product is designed to be operated by adults. Children should not be allowed to tamper with the controls or play on the vehicle. Do not carry children as passengers. The product is designed for single person use only. Keep all packaging well away from children. They could be harmed. Rascal Ventura Scooter Owner's Manual and Service Record... -
Page 25: Additional Information
I want to transport my vehicle in a car. You may need to use hoists and / or ramps to load and unload your Ventura scooter into and out of a car or similar vehicle. Your dealer can advise you on the correct equipment to be used depending on your vehicle and your physical capabilities. -
Page 26: Engineers Checklist
Important Note for the Engineer Enquire if the customer is satisfied with the product. Please report all points good or bad directly to: Electric Mobility 01460 258100 If you have any comments please include them. Rascal Ventura Scooter Owner's Manual and Service Record... -
Page 27: Guarantees
Guarantees 12 Month Guarantee Electric Mobility Euro Limited (the ‘Company’) guarantees its products against defects in materials and workmanship under normal use for a period of one year from the date of purchase by the original retail purchaser (the ‘Guarantee Period’). If a defect arises and a valid claim is received within the Guarantee Period, at its option, the Company may either (1) repair the defect at no charge, using new or replacement parts;... -
Page 28: Technical Information Regarding Emi
• Avoid getting close to transmitter masts, such as television and radio masts. • Note you may experience interference when close to ambulance or fire stations. If your vehicle starts to operate by itself switch it off and report this to your Dealer. Rascal Ventura Scooter Owner's Manual and Service Record... -
Page 29: Technical Specification
Technical Specification - Rascal Ventura Scooter Wheelchair type Class Class A, B or C Class C Department of Transport Class Class 1 2 or 3 Class 3 Overall dimensions fully assembled length x width x height mm (in) 1310 (51.6) x 684 (26.9) x 1073 (42.3) -
Page 30: Notes
Notes Rascal Ventura Scooter Owner's Manual and Service Record... - Page 31 Notes...
- Page 32 Notes Rascal Ventura Scooter Owner's Manual and Service Record...
-
Page 33: Brochure Request
Brochure Request Do you have a friend or colleague that would be interested in an Electric Mobility product? If so cut out this coupon and send it to the address shown on the back of the manual. My Dealer’s Company name is: Please can I have a free no-obligation home demonstration. - Page 34 Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA...
-
Page 35: Service Log
Service Log Notice for the Service Engineer. Please make sure this part is stamped and dated after each service. Dealer stamp - 1st Service Dealer stamp - 2nd Service Dealer stamp - 3rd Service Dealer stamp - 4th Service Dealer stamp - 5th Service Dealer stamp - 6th Service Dealer stamp - 7th Service Dealer stamp - 8th Service... - Page 36 Rascal Ventura Scooter Manufactured by Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk E. and O.E. Issue 3: 01/2014...
