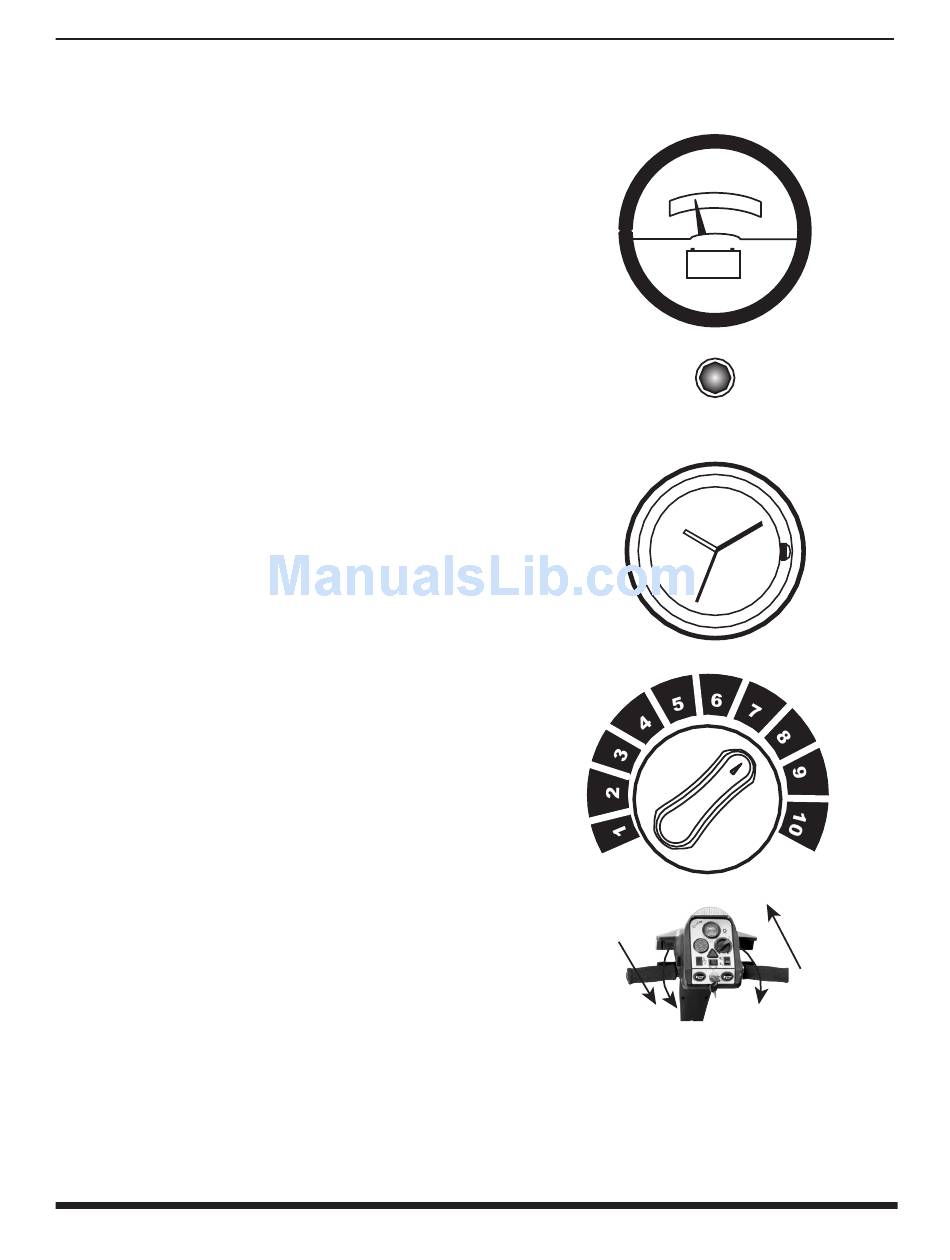

Fuel Gauge
Indicates the charge level of your batteries. If the needle
20 22 24
18
26
goes into the red area, the batteries need to be charged
as soon as possible. If the needle is all the way to the
right side of the green area, the batteries are fully
- +
charged. As the needle moves to the red area it indicates
the level of charge remaining in the batteries.
FUEL GAUGE
Status Lamp
A green LED lamp indicates that power is available and
serves as a troubleshooting indicator when faults or
errors are detected (see "Controller Troubleshooting" on
STATUS LAMP
page 31).
Clock
12
For convenience, the dash includes an analog clock
displaying the current time of day. The clock may be set
3
9
or adjusted by removing the casing from the dash and
using the stem to change time settings. The clock is
powered by a separate battery and does not require the
6
vehicle to be turned on to operate.
Speed Control
The Dial-A-Speed knob regulates the maximum speed of
the scooter. Start at the slowest speed (settings: 0, 1)
until you feel confident with controlling your scooter.
Turning the speed dial counter-clockwise (towards "1")
decreases speed. Turning it clockwise (towards "10")
increases speed. Use slower speeds when first driving
your scooter to avoid accidents.
Engager Lever
The operating speed of your vehicle is proportional to the
amount you squeeze the engager lever. Smooth starts
FORWARD
and stops can be accomplished by gradually moving the
engager lever (similar to a gas pedal in an automobile).
Squeeze the engager lever on the right side to move
forward. Or squeeze the engager lever on the left side to
REVERSE
move in reverse.
