Illustration 15 - Removing Front Section - Rascal 600T Owner's Manual

5. Pull out the Quick-Disconnect Pin.
6. Carefully rotate front end downward, away from rear
section, as shown in Illustration 15. Only rotate
partially down (less than 60°) to avoid damaging
surfaces of scooter. Lift front section away and set
aside.
7. Position the Model 600C front section onto rear
section and align Quick Disconnect pin locations on
front and rear. Replace Quick Disconnect Pin,
ensuring that it goes through and locks at both
locations, front and rear. Route wiring harness
through Harness Guide and re-connect, as shown in
Illustration 14.
8. Lower scooter onto all four wheels. Position footplate
as required. Install tiller. Test before using.
Rascal R600 Scooter Owner's Manual
EMC Part: 19271200 • Rev. 03 • 06/01/2003
23
FRONT
SECTION
REAR
SECTION

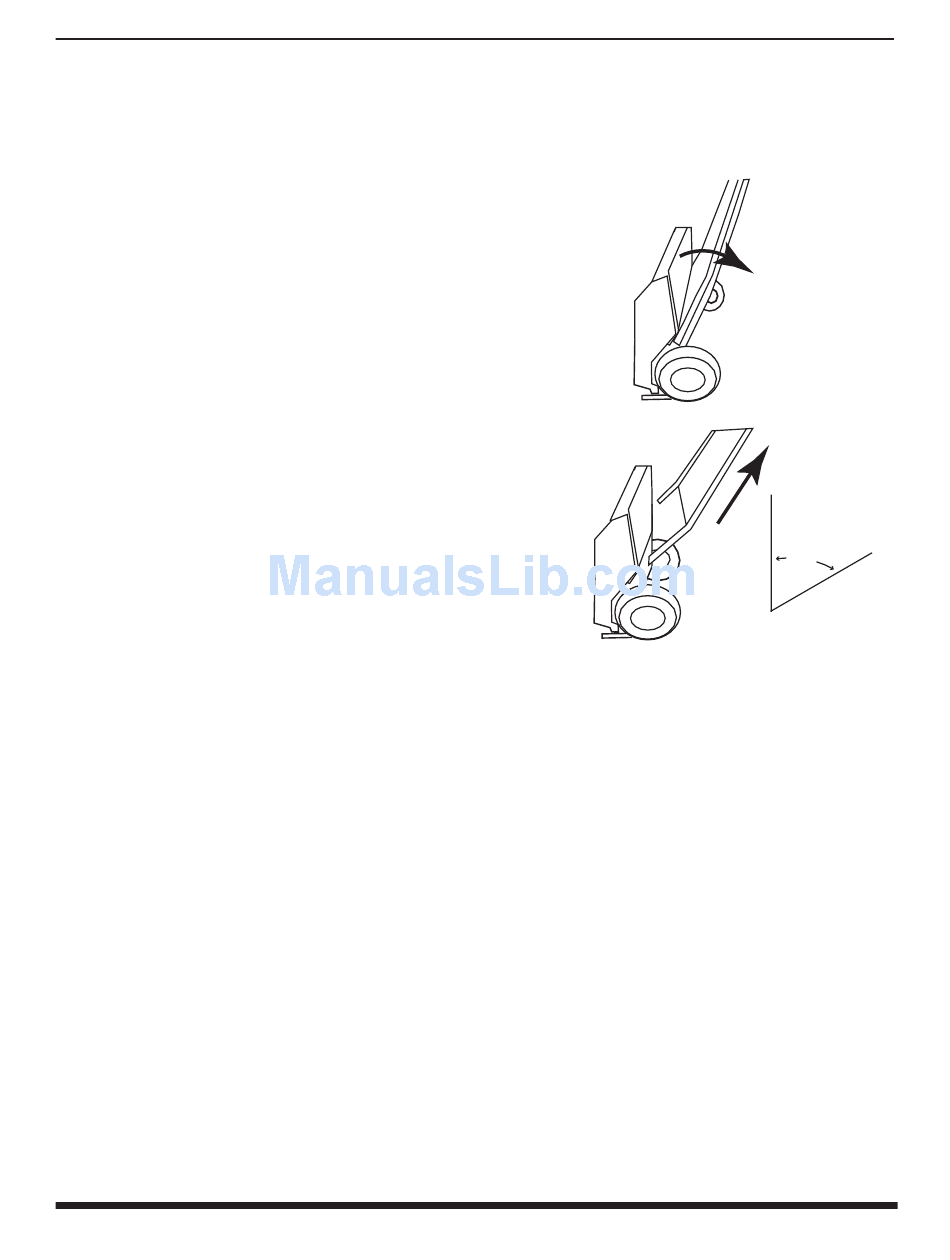

Illustration 15 — Removing Front Section
60°
19271200/15
