- Page 1 Rascal Vantage and Vantage X Scooters Owner’s Manual & Service Record Rascal Vantage and Vantage X Scooters Electric Mobility Euro Limited, Canal Way, Ilminster , Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk Issue 1: 04/2013...
- Page 2 Electric Mobility Euro Ltd has designed these two durable scooters for outdoor short to medium range use. The Vantage and Vantage X scooters are of fixed frame construction and not designed to be fully dismantled for transportation, however they are compact enough to fit into some larger cars, MPVs and vans.
-
Page 3: Table Of Contents
Dealer information Contents Features and layout Safety information Intended use Safety Information Controls Freewheel Device Brakes Armrest adjustment Swivel seat Tiller folding Transferring in and out of your scooter. Operation Driving the vehicle Driving the vehicle - hazards Transporting your scooter Assembling your scooter following transportation Battery charging User maintenance... -
Page 4: Dealer Information

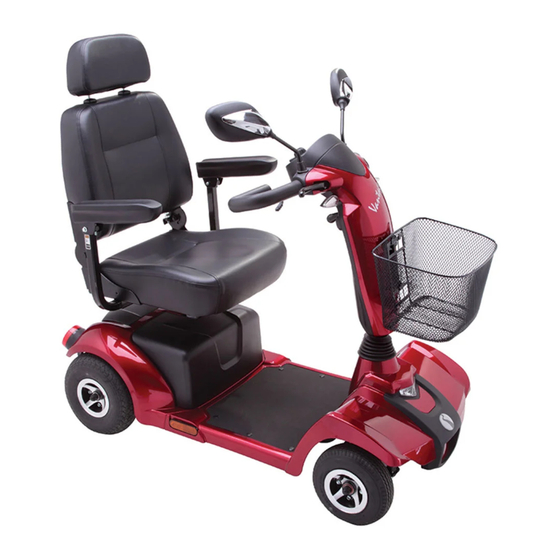

Mobility uro Limited Canal Way, Ilminster, Somerset TA19 9DL Company Registration in England No. 2419231 Features and Layout Photo shows the Rascal Vantage X scooter. See the Technical Specifications section of this manual for detailed information. Fold down backrest Rear view mirrors... -
Page 5: Safety Information
The Rascal Vantage X is a medium range 6mph scooter which is suited for travel on public roads when this is required. The Rascal Vantage is similar to the Vantage X, however it is not suitable for use on public roads and is limited to 4 MPH by design. -
Page 6: Safety Information
Warning ! The Rascal Vantage and Vantage X scooters have been designed and tested for drivers with weights up to those in the Technical Specification section of this manual. These weights should never be exceeded. - Page 7 Warning ! Battery Charge Level. Before driving off, always check the battery indicator. If you are in any doubt, ensure all the batteries are fully charged before starting on a journey. Warning ! Castoring. Be aware that, if you set off when the front wheels are not straight, the initial movement could be partially sideways.
-
Page 8: Controls
Turn the key to the "0" or off position, disengage the free-wheel mode and turn the key back to the on or "I" position. 4. Horn: Press the button and the horn will sound. Rascal Vantage and Vantage X Scooters Owner's Manual and Service Record... - Page 9 (2) knob. This means that the scooter will not be able to travel at more than 4mph. To turn this function off, press the switch for a second time. Only featured on Vantage X model. 11. Indicator (right turn): Press the right hand side of the indicator button once to start the left turn indicator flashing, to switch off, re-center the switch.
-
Page 10: Freewheel Device
Warning! Do not use the emergency brake for normal driving. Rascal Vantage and Vantage X Scooters Owner's Manual and Service Record... -
Page 11: Armrest Adjustment
Warning! Never attempt to disassemble or adjust the braking system. Any maintenance must be carried out by your authorised dealer. Armrest adjustment When preparing to sit on the scooter, first lift one armrest to enable easy access (Fig.6). When riding always have the armrests in the down position. -
Page 12: Tiller Folding
Tip: The tiller can be adjusted in the same way to achieve a comfortable driving position. Warning! Before driving, always check that the tiller is securely in the comfortable upright driving position. Safe steering may be impossible if you do not ! Rascal Vantage and Vantage X Scooters Owner's Manual and Service Record... -
Page 13: Transferring In And Out Of Your Scooter
Transferring In And Out Of The Scooter If you feel at all uncertain about getting in or out of the scooter seek assistance. Transferring into the Scooter from the Front Before getting in: • Make sure that the scooter is on a level surface, and it is not in Freewheel mode. -
Page 14: Driving The Vehicle
Note: Never push or pull both paddles at the same time as you may damage your scooter's control system and cause it to behave erratically. 17. As you get accustomed to the power you can increase the speed. Rascal Vantage and Vantage X Scooters Owner's Manual and Service Record... -
Page 15: Driving The Vehicle - Hazards
18. Switch off when not in use. To conserve your batteries and prevent the vehicle accidentally moving, always switch off the power when your Scooter is not in use. (On/Off or ignition key). Tip: If you do leave your scooter switched on for a prolonged period of time without using it, it will enter a sleep mode to conserve power. -
Page 16: Transporting Your Scooter
Tip: Removing the seat may be easier if you first use the seat swivel function to rotate the seat so it is at 90˚ to the scooter before lifting. Rascal Vantage and Vantage X Scooters Owner's Manual and Service Record... - Page 17 To fold the tiller: Push the tiller release lever downwards as shown - this will allow the tiller to be put in the desired position. Release the tiller lever and the tiller will be set in that position. (Fig.13) Tip: Alternatively the seat and tiller can be folded towards each other to reduce overall height and facilitate easier storage of the scooter (Fig.14) Warning! Do not attempt to lift any of the scooter components unless you are capable of doing so.
-
Page 18: Assembling Your Scooter Following Transportation
You are now ready to drive the scooter away. Rascal Vantage and Vantage X Scooters Owner's Manual and Service Record... -
Page 19: Battery Charging
Battery Charging Warning! When charging batteries NEVER smoke or charge batteries in a place where there are naked flames such as gas-fired heaters as, under exceptional circumstances, batteries may give off gases that could ignite and explode. If the scooter has been damaged, it is possible that the batteries have been affected. - Page 20 Your batteries are built-into the scooter and are not user-serviceable. Your dealer will replace them when they are exhausted and dispose of them in line with environmental regulations applicable at the time. Rascal Vantage and Vantage X Scooters Owner's Manual and Service Record...
-
Page 21: User Maintenance
User Maintenance It is important for safety that you carry out the following checks before use. Visually check the machine for damage. Visually check the tyres for damage. Check the steering moves freely. Check that the tiller is secure and that the tiller thumb-wheel is tight. Check that the seat is located correctly. -
Page 22: Scooter Diagnostic Functions
Tell them about the flash code; this will help the engineer to identify the problem before he calls to fix it. Your dealer is there to help you. Rascal Vantage and Vantage X Scooters Owner's Manual and Service Record... -
Page 23: Troubleshooting Guide
Troubleshooting Guide This table is a guide to fault finding. The fault may be a simple fix. If you have any doubts phone your dealer. Symptom Solution • Scooter does not move. • Batteries flat - check level. when power is switched on. •... -
Page 24: Additional Information
Consult your dealer on the condition of your vehicle and remember vehicles of any type become more expensive to maintain the older they get. Rascal Vantage and Vantage X Scooters Owner's Manual and Service Record... -
Page 25: Engineers Checklist
Engineer’s Checklist for the Rascal Vantage and Vantage X scooters Obtain all comments from the customer on the condition and serviceability of the scooter and then complete an Initial diagnostic road test. Record all defects to be corrected. Now check, test and complete the following: •... -
Page 26: Guarantees
In addition to the above, the Company shall be under no liability in respect of any defect arising from wilful damage, negligence, or misuse. Rascal Vantage and Vantage X Scooters Owner's Manual and Service Record... -
Page 27: Technical Information Regarding Emi
The Guarantees only apply to the original purchaser and are non-transferable. Except in respect of death or personal injury caused by the Company’s negligence, the Company shall not be liable by reason of any representation (unless fraudulent), or any implied warranty, condition or other term, or any duty at common law or under the terms of the Guarantees, for any indirect, special or consequential loss or damage (whether for loss of profit or otherwise), costs, expenses or other claims for compensation whatsoever (whether caused by the negligence of the Company or its employees or otherwise) which arise out of or in connection with the... -
Page 28: Technical Specification
This scooter meets the relevant requirements of ISO 7176:14 2008 *Range on full charge and flat ground. Due to a policy of continual improvement, Electric Mobility reserves the right to change specifications without prior notice. Rascal Vantage and Vantage X Scooters Owner's Manual and Service Record... - Page 29 Technical Specification - Rascal Vantage X Scooter Wheelchair type Class Class A, B or C Class C Department of Transport Class Class 1 2 or 3 Class 3 Overall dimensions fully assembled length x width x height mm (in) 1200 (47.24) x 585 (23.03) x 955 (37.59)
-
Page 30: Service Log
Dealer stamp - 3rd Service Dealer stamp - 4th Service Dealer stamp - 5th Service Dealer stamp - 6th Service Dealer stamp - 7th Service Dealer stamp - 8th Service Rascal Vantage and Vantage X Scooters Owner's Manual and Service Record... -
Page 31: Brochure Request
Brochure Request Do you have a friend or colleague that would be interested in an Electric Mobility product? If so cut out this coupon and send it to the address shown on the back of the manual. My Dealer’s Company name is: Please can I have a free no-obligation home demonstration. - Page 32 Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA...
-
Page 33: Notes
Notes... - Page 34 Notes Rascal Vantage and Vantage X Scooters Owner's Manual and Service Record...
- Page 35 Notes...
- Page 36 Rascal Vantage & Vantage X Scooters Manufactured by Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk E. and O.E. Issue 1: 04/2013...
