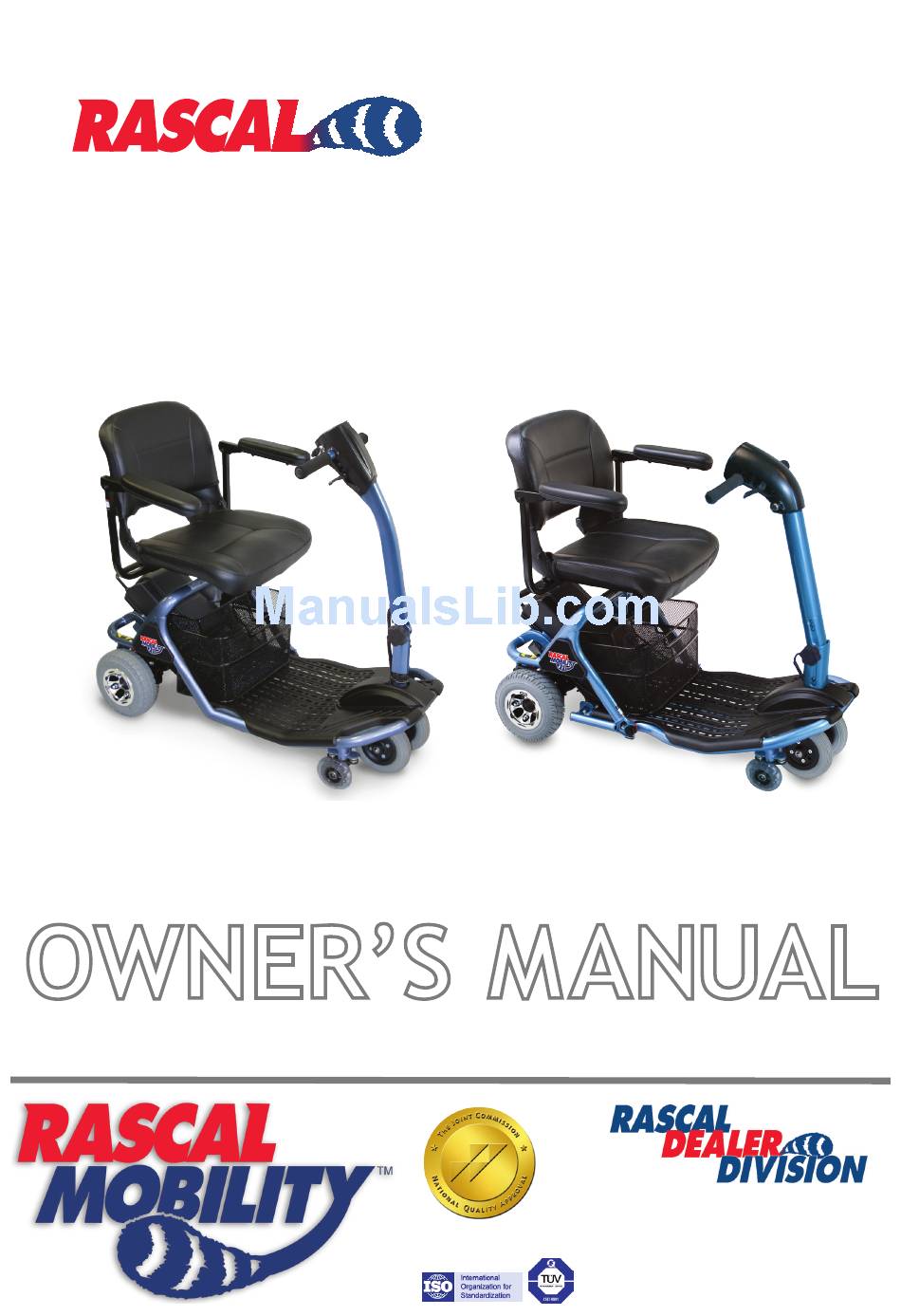

LiteWay
Mid-Size 3 Wheel Scooters with Magnetic Stabilizer™ Technology
214
OWNER'S MANUAL
TM
Models
®
224
Electric Mobility Corporation DBA
Rascal Mobility is Accredited by the
Joint Commission on Accreditation
of Healthcare Organizations.
214 & 224
1 - 8 6 6 - 6 8 5 - 3 4 9 2
www.RascalMobility.com
Rascal Mobility/Rascal Dealer Division
591 Mantua Blvd. Sewell, NJ 08080

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LiteWay 214 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rascal LiteWay 214

Summary of Contents for Rascal LiteWay 214

  • Page 1 OWNER’S MANUAL 1 - 8 6 6 - 6 8 5 - 3 4 9 2 Electric Mobility Corporation DBA www.RascalMobility.com Rascal Mobility is Accredited by the Joint Commission on Accreditation of Healthcare Organizations. Rascal Mobility/Rascal Dealer Division 591 Mantua Blvd. Sewell, NJ 08080...

  • Page 2: Vehicle Information

    Rascal LiteWay 214 & 224 Owner’s Manual Please read this entire manual before operating the vehicle. Failure to do so may result in damage to scooter or serious injury. Model 214 – Fixed Frame Model 224 – Take-Apart Frame VEHICLE INFORMATION Please record your vehicle’s information for future reference:...

  • Page 3: Table Of Contents

    CONTENTS Vehicle Information ……….…………………………………………………1 Warnings and Safety Information ……….…………………………………3 Important Information Regarding Electromagnetic Interference (EMI) .4 Features and Layout – Rascal LiteWay 214 ……………………………. 5 Features and Layout – Rascal LiteWay 224 ……………………………..6 Dashboard Controls ………………………………………………………..7 Driving Controls ………………………………………………………………8 Armrest Adjustment ………………………………………………………….9 Seat Post Height Adjustment ………………………………………………10...

  • Page 4: Warnings And Safety Information

    Rascal LiteWay 214 & 224 Owner’s Manual WARNINGS AND SAFETY INFORMATION WARNING! Failure to follow these instructions may result in serious or fatal injury to the user or damage the scooter. 1. DO NOT exceed the specifications of this unit, modify it, or use for a purpose other than a mobility scooter.

  • Page 5: Important Information

    Rascal LiteWay 214 & 224 Owner’s Manual IMPORTANT INFORMATION Regarding Electromagnetic Interference (EMI) This vehicle has an immunity level of 20 V/m which should protect it from Electromagnetic Interference (EMI) from Radio Wave Sources. The rapid development of electronics, especially in the area of communications, has saturated our environment with electromagnetic (radio) waves that are emitted by television, radio and communication signals.

  • Page 6: Features And Layout - Rascal Liteway 214

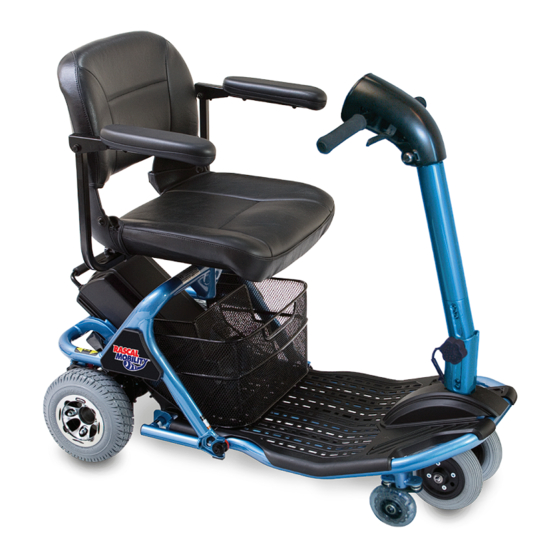

    Rascal LiteWay 214 & 224 Owner’s Manual FEATURES AND LAYOUT - Model 214 EMC Part: 43132600 ~ Rev.02 ~ 08/24/10...

  • Page 7: Features And Layout - Rascal Liteway 224

    Rascal LiteWay 214 & 224 Owner’s Manual FEATURES AND LAYOUT – Model 224 EMC Part: 43132600 ~ Rev.02 ~ 08/24/10...

  • Page 8: Dashboard Controls

    Rascal LiteWay 214 & 224 Owner’s Manual DASHBOARD CONTROLS Before driving your vehicle it is important to familiarize yourself with the controls. Do not attempt to drive the vehicle before reading the rest of this User Manual. DASHBOARD DESCRIPTION 1. Power Indicator Light: The light illuminates when the ignition is on. If there is a fault it will flash –...

  • Page 9: Driving Controls

    Rascal LiteWay 214 & 224 Owner’s Manual DRIVING CONTROLS FINGER CONTROL To operate, turn on the ignition. Pull the right hand lever towards you and the scooter moves forward. The more you pull the lever the faster the scooter goes. To brake, release the lever.

  • Page 10: Armrest Adjustment

    Rascal LiteWay 214 & 224 Owner’s Manual ARMREST ADJUSTMENT When getting seated on the scooter lift the armrest up. When riding always have the armrest in the down position. Avoid pinching fingers as you lower the armrest. If you require more room in the width of the seat undo the knobs at the rear of the seat.

  • Page 11: Seat Post Height Adjustment

    Rascal LiteWay 214 & 224 Owner’s Manual SWIVEL SEAT Note: The swivel seat is standard on the LiteWay 224. It is available as an option on the LiteWay 214. 1. To operate, locate the release lever under the seat. 2. Pull the lever up and the seat will release allowing it to rotate.

  • Page 12: Tiller Adjustment And Folding

    Rascal LiteWay 214 & 224 Owner’s Manual TILLER ADJUSTMENT & FOLDING The tiller can be folded down for transporting. Take care when lowering the tiller not to pinch your fingers at the base of the tiller.  Rotate the adjustment knob counterclockwise sufficiently for the retaining serrations to allow the tiller to move.

  • Page 13: Disassembly

    Rascal LiteWay 214 & 224 Owner’s Manual DISASSEMBLY The LiteWay 224 has been designed for disassembly for convenient transporting and storage. The sequence listed below is for complete disassembly of your vehicle. Assembly is accomplished by reversing these steps. You may only need to disassemble a portion of the vehicle depending on your space requirements.
  • Page 14 Rascal LiteWay 214 & 224 Owner’s Manual Note: Step 5 below pertains to both models 214 and 224 Lower the tiller to the horizontal position. Remove the drop-out drive train. Pull the release bar of the drive train down, and then towards you.

  • Page 15: Re-Assembly

    Rascal LiteWay 214 & 224 Owner’s Manual RE-ASSEMBLY After removing your scooter from a vehicle and placing it on level ground, check if it is undamaged before starting to assemble it as follows: 1. Undo the adjustment knob, release strap and raise the tiller into the upright position and secure by tightening the knob.
  • Page 16 Rascal LiteWay 214 & 224 Owner’s Manual 7. Place the drive train behind frame. The forks on the drive train mount have to line up to the spigots on the frame (see photo below). Lift the frame over the drive train, lining up the spigots to the forks.

  • Page 17: Battery Charging

    Rascal LiteWay 214 & 224 Owner’s Manual BATTERY CHARGING The charging socket is located in the rear of the battery box. Slide the charger protective cap over and push in the round silver charging plug into the receptacle. Once the vehicle is charged, remove the plug and slide the protective cover back over the receptacle.

  • Page 18: Specifications

    Rascal LiteWay 214 & 224 Owner’s Manual SPECIFICATIONS – MODEL 214 Dimension (L x W x H) 41” x 21” x 36” 104.2 cm x 53.4 cm x 91.5 cm Weight of Scooter 120 lbs./53.43 kg Battery 12 volt 15ah x2 Charger 2.0 amp Off Board...

  • Page 19: Diagnostic Fault Codes

    Rascal LiteWay 214 & 224 Owner’s Manual DIAGNOSTIC FAULT CODES Your scooter controller provides diagnostic information in the form of a flash code. The LED Status light on the battery gauge flashes to indicate a problem has been detected. When switching on, the controller conducts a diagnostic test.

  • Page 20: Troubleshooting Guide

    Rascal LiteWay 214 & 224 Owner’s Manual TROUBLESHOOTING GUIDE Symptom Solution   Scooter does not move Batteries dead – check voltage when power switched  Is the charger connected?  Is freewheel lever in drive?   Steering is loose or Check for tire damage.

  • Page 21: Dealer Division Limited Warranty

    Rascal Mobility or its dealer immediate notice, the defective part will be repaired or at the option of Rascal Mobility, replaced with an equal or superior part. No allowance will be made for repairs to any equipment without the express written or verbal approval of Rascal Mobility.
  • Page 22 Brake pads are a wear item and will not be warranted. This warranty also excludes the following 1. Batteries: Rascal Mobility will replace defective batteries at no cost during the first six (6) months following date of purchase. After six months, battery replacement costs are the responsibility of the original purchaser.
  • Page 23 Rascal LiteWay 214 & 224 Owner’s Manual Warranty Service Warranty Service must be performed by an authorized Rascal Mobility Dealer or Service Center. Rascal Mobility reserves the right to replace warranted part(s) with refurbished or new part(s) at our discretion. There is no other express warranty.
  • Page 24 ® Since 1983, The Rascal Company has designed ® and manufactured Rascal Mobility scooters. ™ In this time, Rascal has become world famous for ease-of-use, comfort and safety features. Today, Rascal continues to unveil new products, adding to their product line of innovative mobility solutions for people seeking a better quality of life.
