Page 1: Owners Manual
Owners Manual Model 600T • Model 600F • Model 600C ELECTRIC MOBILITY EMC Part: 19271200 World Leader in Personal Independent Mobility Rev. 01 • Date 02/28/03 591 Mantua Blvd., Sewell, NJ 08080... - Page 2 ® ® Electric Mobility wishes to thank you for choosing the ConvertAble Rascal Scooter to improve your freedom and independence. As the World’s leader in the design and manufacture of personal mobility vehicles, we take great pride in our ability to improve the quality of life for those people experiencing limitations in movement.
-
Page 3: Table Of Contents
Rascal R600 Scooter Owner’s Manual Contents Title Page Safety Information ........................1 Important Information Regarding Electromagnetic Interference (EMI) ....... 2 Getting to Know Your Rascal Scooter ..................3 Model Designation ........................3 Components ..........................4 Illustration 1 — Major Components ................4 Controls ........................... - Page 4 Rascal R600 Scooter Owner’s Manual Removing the Seat ......................24 Removing Batteries ......................25 Removing the Footrest Plate (600C Only) ..............25 Quick Disconnect Drive Train (QDDT) Removal ............25 Illustration 16 — Drivetrain Removal ..............25 Transporting your Scooter ....................26 Maintenance and Servicing .....................27 Preventative Maintenance ....................27 Battery Connections .......................27 Tire Pressure ........................27...
- Page 5 © 2003 Electric Mobilty Corp. Electric Mobility ® Rascal® and ConvertAble® are registered trademarks of Electric Mobilty Corp. No liability is assumed with respect to the use of any information contained in this publication. While every precaution has been taken in the preparation of this publication, Electric Mobilty Corp., assumes no responsibility for errors or omissions nor is any liability assumed for...
-
Page 6: Safety Information
Rascal R600 Scooter Owner’s Manual Safety Information Read and understand these Warnings and the entire manual before using your Scooter. WARNING! Failure to follow these instructions may result in serious or fatal injury to the user or damage to the vehicle. 16. -
Page 7: Important Information Regarding Electromagnetic Interference (Emi)
• Be aware that if you do operate any electrically powered accessories, radios, or other devices, that your scooter may become more susceptible to interference from outside electromagnetic source. • Report all incidents of unintended movement or unexpected brake releases to the Service department of Electric Mobility Corp. EMC Part: 19271200 • Rev. 03 • 06/01/2003... -
Page 8: Getting To Know Your Rascal Scooter
Congratulations on your purchase of a Rascal 600 Series scooter, the latest in easy, convenient personal mobility from Electric Mobility Corp. Before attempting to use your scooter, we recommend you read this section first to learn about your new scooter. Included in this section are: Model Designation Used to correctly identify the model and type of scooter. -
Page 9: Components

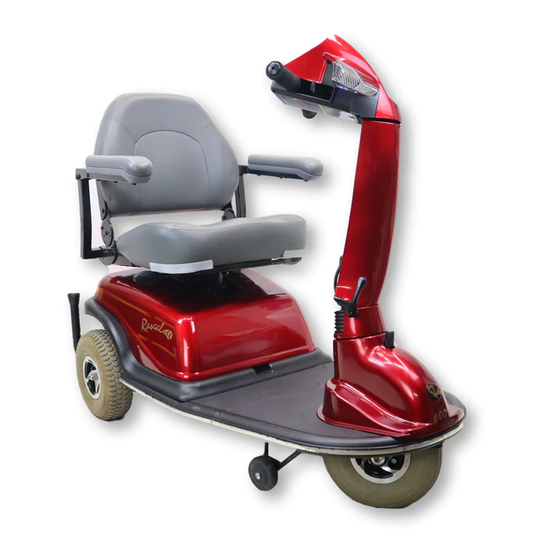

Rascal R600 Scooter Owner’s Manual Components Rascal 600 Series Scooters consists of the following major components, as shown in Illustration 1. You should familiarize yourself with the location and general functioning before proceeding. MODEL 600C MODEL 600F CONTROLS TILLER SEAT WHEELS &... - Page 10 Rascal R600 Scooter Owner’s Manual 3-Wheel Front End The Model 600T uses a 3-wheel front end for tight, sure-footed turning with a maximum of maneuverability. The steering handlebar is connected directly to the front fork for easy, yet precise steering control. Large, side-mounted casters provide persistent stability.
- Page 11 Rascal R600 Scooter Owner’s Manual Drivetrain The scooter is propelled by a motorized differential drivetrain mounted at the rear of the scooter. It drives the two rear wheels for forward/ reverse motion. An integral parking brake mounted on the motor maintains the vehicle’s stopped position when the engager is released.
-
Page 12: Controls
Rascal R600 Scooter Owner’s Manual Controls The Rascal Scooter includes the following controls used for its operation. These controls are shown in Illustration 2. FUEL GAUGE STATUS LAMP DIAL-A-SPEED CLOCK LIGHT SWITCH HAZARD SWITCH ENGAGER SEAT LIFT LEVERS SWITCH KEYSWITCH TURN SIGNALS HORN... - Page 13 Rascal R600 Scooter Owner’s Manual Fuel Gauge Indicates the charge level of your batteries. If the needle 20 22 24 goes into the red area, the batteries need to be charged as soon as possible. If the needle is all the way to the right side of the green area, the batteries are fully charged.
- Page 14 Rascal R600 Scooter Owner’s Manual Hazard Switch The Rascal includes Hazard Indicators to alert others that you’ve stopped or require assistance. Pressing the Hazard Switch flashes front and rear amber lamps. Pressing again turns lamps off. Note: This feature is not included on tiller-equipped 600C models.
- Page 15 Rascal R600 Scooter Owner’s Manual the toggle switch. To deactivate the turn signals place toggle switch in the centered position. Note: Turn signals are not included on tiller-equipped 600C models. Light Switch The Rascal includes a complete complement of Headlight, Taillights, and Running Lights for increased visibility and safety.
-
Page 16: Initial Setup And Adjustments
Rascal R600 Scooter Owner’s Manual We recommend that you put one away in a secure place in case you lose your operating key. 600C Chair Tiller Controls The tiller used on the 4-Wheel Chair model is available in left hand or right hand configurations and includes the following controls: Right Hand Operation FORWARD... -
Page 17: Illustration 3 - Ammeter
Rascal R600 Scooter Owner’s Manual Use the following to charge batteries of your Rascal scooter. 1. Park the vehicle near a 3-Prong Grounded Electrical Receptacle. WARNING! Use of a non-grounded receptacle could result in an electrical shock. 2. Lift the trunk lid and remove the power cord from the trunk area. -
Page 18: Adjustments
Rascal R600 Scooter Owner’s Manual Adjustments Your scooter has been pre-adjusted to meet most customers’ needs, however your scooter includes several adjustments to adapt it to specific height and width requirements. These adjustments include: • Adjusting the Seat (armrest width and armrest/backrest angles) •... -
Page 19: Adjusting Backrest Angle
Rascal R600 Scooter Owner’s Manual Adjusting Backrest Angle The seat is designed with five available backrest settings (90°, 95°, 100°, 105° and 115°) to allow you to adjust the angle of the back of your seat. The 90° setting provides the most upright position and the 115°... -
Page 20: Adjusting The Handlebar And Dash Position
Rascal R600 Scooter Owner’s Manual Adjusting the Handlebar and Dash Position Both the handlebar and dash include adjustments to allow them to be positioned according to your individual riding style. The angle of the dash can be adjusted up or down for maximum comfort and easier use of dash controls. -
Page 21: Dashboard Clock
Rascal R600 Scooter Owner’s Manual Dashboard Clock Your Rascal 600 Series Scooter comes with a removable, battery-powered, quartz clock that mounts directly in the dashboard of the scooter. This clock is shipped separately to allow you to set it to your local time before installing in the dashboard. -
Page 22: Seat Post Height Adjustment
Rascal R600 Scooter Owner’s Manual Seat Post Height Adjustment If the scooter does not include the electric seat lift, the seat height can be adjusted manually. The Seat Post tube has 3 holes; this makes it adjustable so you can set the seat height that is most comfortable for you. -
Page 23: Using The Scooter
Rascal R600 Scooter Owner’s Manual Using the Scooter Once you are familiar with the components, controls, charged the batteries, and any height or width adjustments, you can follow these instructions in this section to operate it. • Transferring On & Off •... -
Page 24: 600C Chair Models Only
Rascal R600 Scooter Owner’s Manual 600C Chair Models Only If using the 4-Wheel Chair front section with a footrest plate, it can be placed in the UP position by lifting the front of plate up towards the seat. When plate is vertical it will drop slightly and lock into position. -
Page 25: Driving
Rascal R600 Scooter Owner’s Manual Driving Once seated on your Rascal scooter, driving is simple. Set Speed Dial to desired speed range. Use the Engager Lever to move forward (squeeze right side) or reverse (squeeze left side) Steer in the desired direction. -
Page 26: Illustration 12 - Brake Release Lever
Rascal R600 Scooter Owner’s Manual WARNING! Never sit in vehicle if it is in “freewheel” mode on an incline. Illustration 12 — Brake Release Lever PUSH POSITION DRIVE POSITION 19271200/12 When finished pushing the vehicle, place the lever back into the ‘RIDE’ (down) position to prevent the vehicle from rolling. -
Page 27: Converting Between 3 & 4 Wheel Operation
Rascal R600 Scooter Owner’s Manual Converting Between 3 & 4 Wheel Operation The Model 600T and 600F to be easily converted to an indoor model by replacing the front section with the Chair Front End of the Model 600C. Conversion requires lifting the existing front end off and installing another front end (either 600C or 3- wheel, 4-wheel versions). -
Page 28: Illustration 15 - Removing Front Section
Rascal R600 Scooter Owner’s Manual 5. Pull out the Quick-Disconnect Pin. FRONT SECTION 6. Carefully rotate front end downward, away from rear section, as shown in Illustration 15. Only rotate partially down (less than 60°) to avoid damaging surfaces of scooter. Lift front section away and set aside. -
Page 29: Vehicle Disassembly & Re-Assembly
Rascal R600 Scooter Owner’s Manual Vehicle Disassembly & Re-Assembly Your vehicle has been designed for easy disassembly for convenient transporting and storage. The sequence listed below is for complete disassembly of your vehicle. Assembly is accomplished by reversing these steps. You may only need to disassemble a portion of the vehicle depending on your space requirements. -
Page 30: Removing Batteries
Rascal R600 Scooter Owner’s Manual Removing Batteries 1. Remove top cover and unwrap the battery tie down strap. 2. Unplug the connectors attached to each battery and lift each battery up and out of the vehicle. Re-Assembly Notes: Make sure that the Velcro straps are securely and completely fastened. It is normal for the batteries to spark when re-assembled. -
Page 31: Transporting Your Scooter
Rascal R600 Scooter Owner’s Manual 1. Remove Seat, Batteries, Dash or Tiller, and Front Section as described previously. 2. With the unit still standing upright on the rear bumper, disconnect both electrical connectors (4 prong and 2 prong) of the Drivetrain Power Harness. Remove both of the Quick Disconnect Pins used to hold leaf springs into position. -
Page 32: Maintenance And Servicing
If the tire continues to lose air, replace the tire and sealant-injected inner tube. Replacement tires and inner tubes with sealant are available from Electric Mobility’s Customer Service Department or your authorized service center. Rear Wheel Removal Remove the center hardware holding wheel onto axle. -
Page 33: Front Wheel Removal
Rascal R600 Scooter Owner’s Manual Re-Assembly Notes: Slide the wheel onto axle, align key with slot in axle. If snug, tap on wheel lightly with a rubber mallet. Replace the hardware and tighten securely. Front Wheel Removal Using the proper size wrenches on the nut and bolt, remove nut. Hold wheel and slide the bolt out of fork, being careful not to lose any of the wheel spacers. -
Page 34: Hardware Inspection
Rascal R600 Scooter Owner’s Manual Hardware Inspection Check and make sure all fasteners are present and secure. Replace any missing fasteners and tighten any loose fasteners. Cleaning Instructions Wash your scooter with a sponge using household detergent diluted in warm water to clean all components (i.e., seat, front cover, floor pan, rear cover, etc.). -
Page 35: Troubleshooting
This table is only a guide to aid you in getting your vehicle operating, should you have any problems. If you are unable to get your vehicle operating, call either Electric Mobility Customer Service toll free number located at the front of this manual or your local Authorized Service Center. -
Page 36: Controller Troubleshooting
Scooter will not operate. Contact Factory Service. Factory Return Procedures If a part or the entire product is to be returned, call Electric Mobility Customer Service Department for shipping instructions and to obtain a Return Authorization Number that must be placed on the return package. -
Page 37: Limited Warranty Information
Electric Mobility One Year Limited Warranty For one year from date of purchase Electric Mobility Corporation will repair or replace at our option to the original purchaser, free of charge, any part found upon examination by an authorized representative of Electric Mobility Corporation to be defective in material and/or workmanship. - Page 38 This warranty gives you specific rights and you may also have other rights which vary from state to state. Please fill out and return the warranty card to Electric Mobility Corporation. This will aid Electric Mobility Corporation in providing the best possible Technical and Customer Service.
-
Page 39: Application Certification Standards
Rascal R600 Scooter Owner’s Manual Application Certification Standards The supplier must meet and must certify in its application for billing privileges that it meets and will continue to meet the following standards: Operates its business and furnishes Medicare-covered items in compliance with all Federal and State licensure and regulatory requirements; Has not made, or caused to be made, any false statement or misrepresentation of a material fact on its application for billing privileges. -
Page 40: Specifications
Rascal R600 Scooter Owner’s Manual Specifications Designation Model 600T Model 600F Model 600C Overall Length 46” (116.8 cm) 48.75” (123.8 cm) 42” (107 cm) Width 25” (63.5 cm) 25” (63.5 cm) 25” (63.5 cm) Turning Radius 41.5” (105.4 cm) 66.5” (169 cm) 37.25”... -
Page 41: Index
Rascal R600 Scooter Owner’s Manual INDEX 600C Chair Models Only, 19 Illustration 8 — Handlebar Adjustment, 15 600C Chair Tiller Controls, 11 Illustration 9 — Clock Installation, 16 Adjusting Armrest Angle, 13 Illustration 10 — Seat Post Height Adjustment, 17 Adjusting Armrest Width, 13 Illustration 11 —... - Page 42 Electric Mobility is a family owned and operated company with its headquarters in Southern New Jersey. The company has a proud tradition of innovation and achievement that began in 1974 with company founder Francis Flowers. Today, Electric Mobility employs over 450 men and women and maintains a sales and service network that reaches all 50 states and 22 foreign countries.
