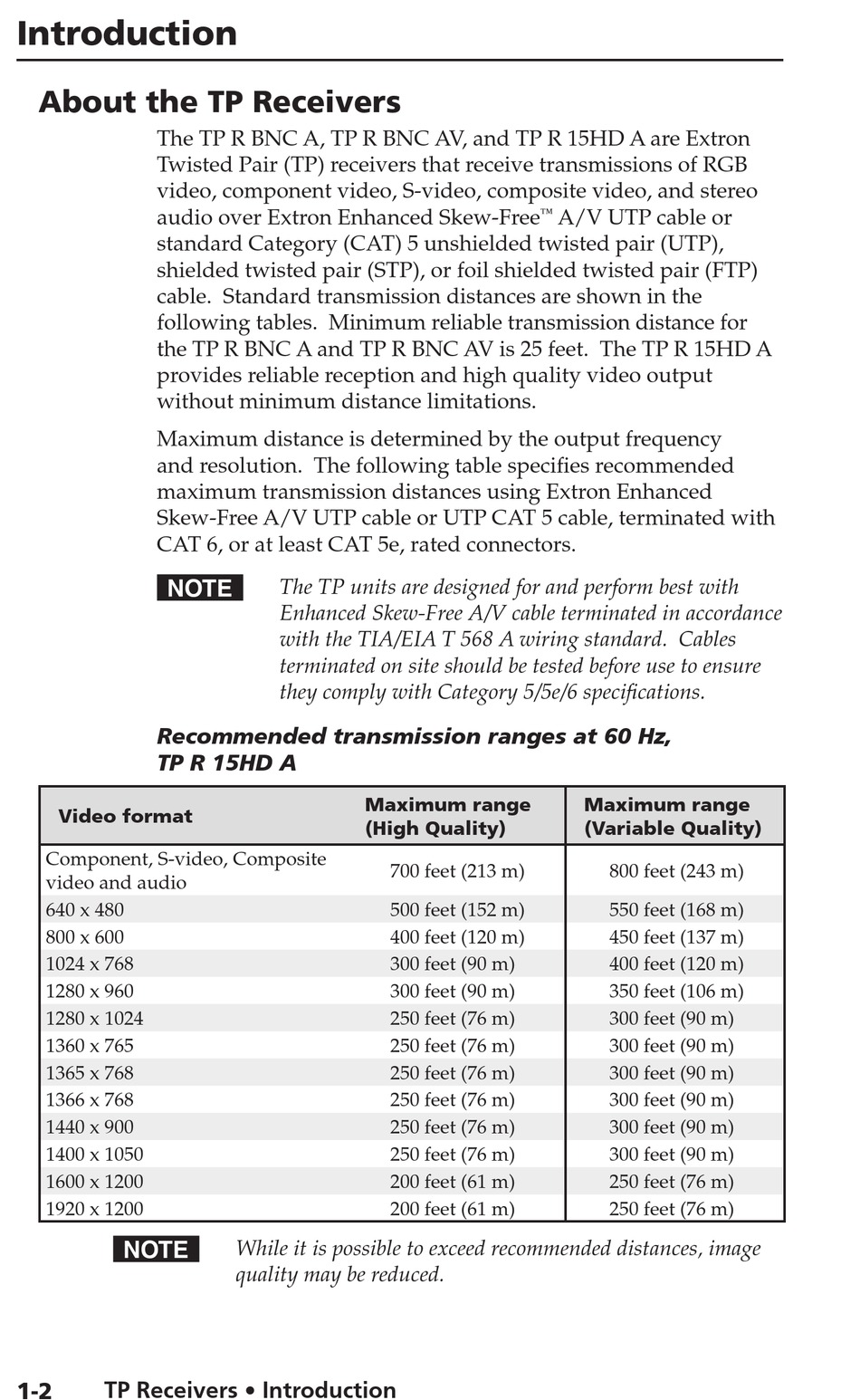

About the TP Receivers

The TP R BNC A, TP R BNC AV, and TP R 15HD A are Extron
Twisted Pair (TP) receivers that receive transmissions of RGB
video, component video, S-video, composite video, and stereo
audio over Extron Enhanced Skew-Free
standard Category (CAT) 5 unshielded twisted pair (UTP),
shielded twisted pair (STP), or foil shielded twisted pair (FTP)
cable. Standard transmission distances are shown in the
following tables. Minimum reliable transmission distance for
the TP R BNC A and TP R BNC AV is 25 feet. The TP R 15HD A
provides reliable reception and high quality video output
without minimum distance limitations.
Maximum distance is determined by the output frequency
and resolution. The following table specifies recommended
maximum transmission distances using Extron Enhanced
Skew-Free A/V UTP cable or UTP CAT 5 cable, terminated with
CAT 6, or at least CAT 5e, rated connectors.
N
Recommended transmission ranges at 60 Hz,
TP R 15HD A
Video format
Component, S-video, Composite
video and audio
640 x 480
800 x 600
1024 x 768
1280 x 960
1280 x 1024
1360 x 765
1365 x 768
1366 x 768
1440 x 900
1400 x 1050
1600 x 1200
1920 x 1200
N
TP Receivers • Introduction
1-2
The TP units are designed for and perform best with
Enhanced Skew-Free A/V cable terminated in accordance
with the TIA/EIA T 568 A wiring standard. Cables
terminated on site should be tested before use to ensure
they comply with Category 5/5e/6 specifications.
While it is possible to exceed recommended distances, image
quality may be reduced.
Maximum range
(High Quality)
700 feet (213 m)
500 feet (152 m)
400 feet (120 m)
300 feet (90 m)
300 feet (90 m)
250 feet (76 m)
250 feet (76 m)
250 feet (76 m)
250 feet (76 m)
250 feet (76 m)
250 feet (76 m)
200 feet (61 m)
200 feet (61 m)
A/V UTP cable or
™
Maximum range
(Variable Quality)
800 feet (243 m)
550 feet (168 m)
450 feet (137 m)
400 feet (120 m)
350 feet (106 m)
300 feet (90 m)
300 feet (90 m)
300 feet (90 m)
300 feet (90 m)
300 feet (90 m)
300 feet (90 m)
250 feet (76 m)
250 feet (76 m)
