Extron electronics TPT101 User Manual

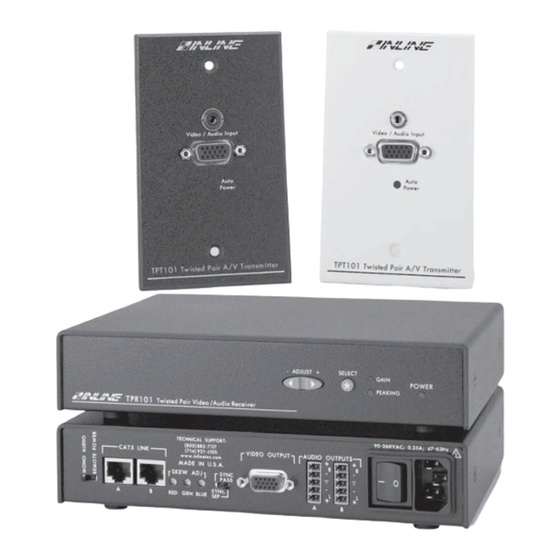

Twisted pair transmitter and receiver for vga and stereo audio signals
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PRELIMINARY
TPT101/TPR101
Twisted Pair Transmitter and Receiver for VGA and Stereo Audio Signals
Rev. Ax2
Printed in the USA
08 03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPT101 and is the answer not in the manual?

Questions and answers

Related Manuals for Extron electronics TPT101

Summary of Contents for Extron electronics TPT101

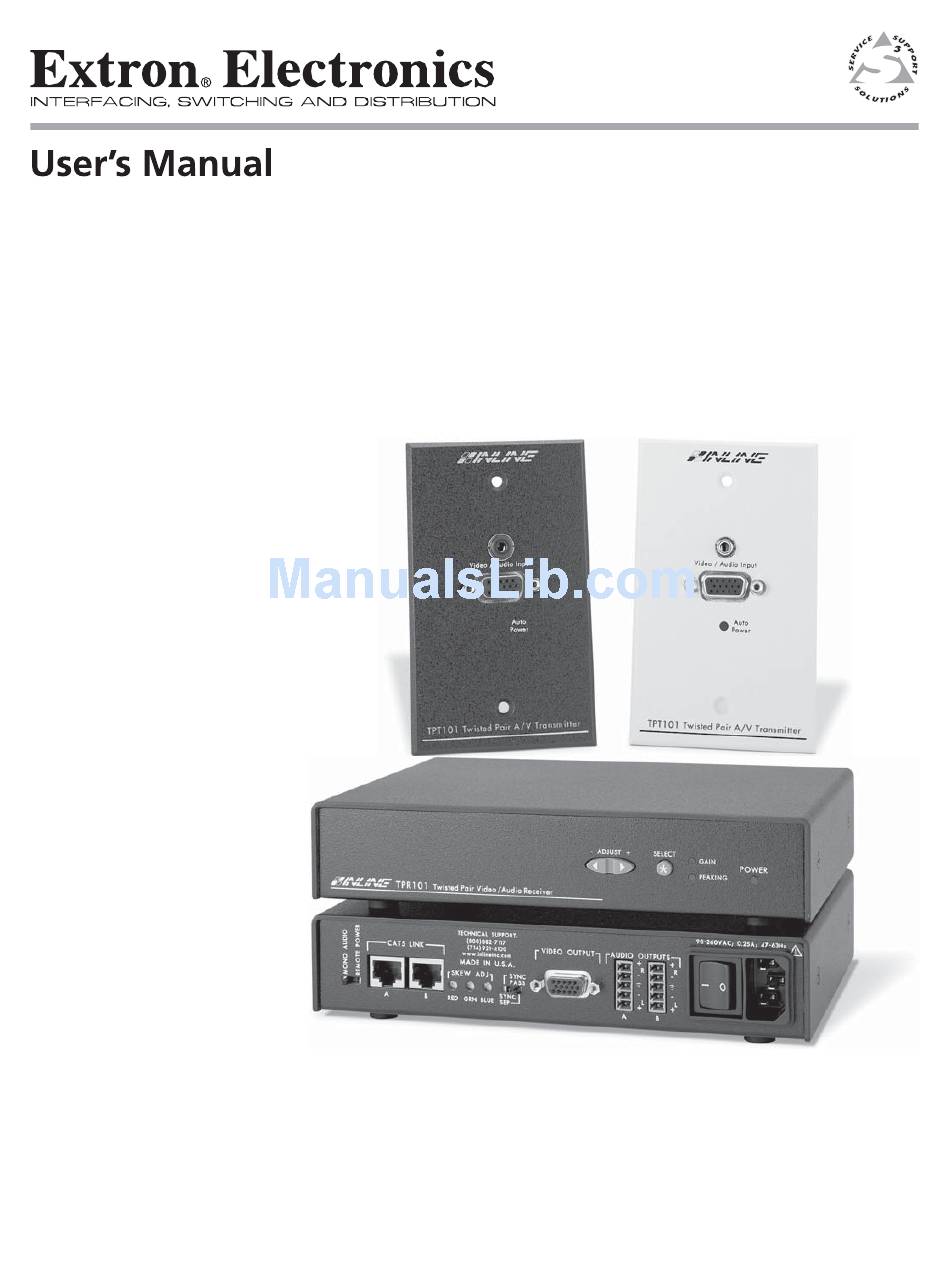

  • Page 1 PRELIMINARY TPT101/TPR101 Twisted Pair Transmitter and Receiver for VGA and Stereo Audio Signals Rev. Ax2 Printed in the USA 08 03...

  • Page 2: Safety Instructions • English

    Precautions Safety Instructions • English Warning This symbol is intended to alert the user of important operating and maintenance Power sources • This equipment should be operated only from the power source indicated on the product. This equipment is intended to be used with a main power system with a grounded (servicing) instructions in the literature provided with the equipment.

  • Page 3: Product Overview

    / presentation furniture using a standard 1-gang junction box. In addition, the TPT101 / TPR101 twisted pair video / audio transmission system lets A/V system designers and installers take advantage of the compact size, flexibility, and extremely low cost of CAT5 UTP cable.
  • Page 4 Terminal B is reserved (only used with TPT111 transmitter). CAT5 CABLE LINKS Dual RJ45 female output ports are provided on the back of the TPT101 for connection to one or two CAT5 cables. Dual RJ45 female input ports are provided on the back of the TPR101 for connection to one or...
  • Page 5 RGB skew timing delays. For this reason, CAT5 cable skew performance is not as critical with the TPT101 / TPR101 twisted pair transmission system as it is with other CAT5 transmission systems.

  • Page 6: Installation

    1.) Install the Junction Box - in accordance to the standards set forth in the National Electrical Code. The TPT101 can also be installed in an existing 1-gang junction box (see Dimensions Diagram on page 18). You may also install the TPT101 in any desired wall location using an optional IN9181 wall-mounting bracket.
  • Page 7 TPR101) to the MONO AUDIO position. CAT5 Cable Connection: Connect one end of the CAT5 cable to the LINK A VIDEO Output Port on the rear of the TPT101, and the other end to the LINK A Input Port on the rear of the TPR101.
  • Page 8 BNC connectors can be connected using the appropriate input cables listed in the chart on the following page. 9.) Connect the Computer Sound Card Output - (if applicable) to the TPT101 3.5mm female stereo audio input connector using an IN8200-1 Series cable [15-pin HD with 3.5mm stereo mini], or an IN9106 audio patch cable (3.5mm stereo mini male to 3.5mm stereo mini male).
  • Page 9 ADAPTER / EXTENSION CABLES The TPT101 has a female 15-pin HD VGA-type video input port. The following input cables / adapters are available to support various computers and video signals: Computer 3’...
  • Page 10 SUGGESTED MAXIMUM CABLE LENGTHS Several factors will affect the video signal quality you can expect using the TPT101 / TPR101 system including the input signal resolution and refresh rate, the quality of the CAT5 cable and the length of the cable run. Generally speaking, the higher the signal bandwidth, the shorter the distance it can be transmitted along any cable (coaxial or UTP) before it begins to degrade.
  • Page 11 © 2003 - EXTRON, Inc. TPT101 / TPR101 Operation Manual - Preliminary 8/18/2003...
  • Page 12 TPT101 / TPR101 Operation Manual - Preliminary 8/18/2003 © 2003 - EXTRON, Inc.
  • Page 13 © 2003 - EXTRON, Inc. TPT101 / TPR101 Operation Manual - Preliminary 8/18/2003...

  • Page 14: External Controls

    For example, if the leading edge of a large black-to-white transition on the display screen is red, adjust the red pot until the inappropriate color is gone. The factory default setting is minimum. TPT101 / TPR101 Operation Manual - Preliminary 8/18/2003 © 2003 - EXTRON, Inc.
  • Page 15 © 2003 - EXTRON, Inc. TPT101 / TPR101 Operation Manual - Preliminary 8/18/2003...
  • Page 16 Power Indicator Power TPT101 Twisted Pair A/V Transmitter Front View Back View Power Indicator CAT5 Link B CAT5 Link A Power Mode Switch Audio Mode Switch GroundingTerminal TPT101 / TPR101 Operation Manual - Preliminary 8/18/2003 © 2003 - EXTRON, Inc.

  • Page 17: Specifications

    Regulatory Approvals CE: EN55022 (1987), EN50081-1 (1991), EN50082-1 (1992 and 1994), EN60950-92 Parts Included TPT101-1 or TPT101-2: Twisted Pair Transmitter for High-Resolution Video and Stereo Audio IN9206: 15VDC; 1A Power Supply TPT101 / TPR101 Operation Manual TPR101 Twisted Pair Receiver...

  • Page 18: Troubleshooting

    IN9252: Table Mounting Brackets - For mounting the TPR101 to virtually any flat surface Troubleshooting Problem: The TPT101 / TPR101 is plugged in but the power indicator light / front panel LED is dark. Solution 1: Make sure that the power adapter is securely plugged into the TPR101 and the A/C source.
  • Page 19 Make sure that the Grounding terminal on the back of the TPT101 is properly grounded to local earth ground to prevent possible electrical shock and / or damage of the system.

  • Page 20: Product Dimensions

    1.69" 0.10" 1.59" 2.75" 0.85" 0.85" Video / Audio Input 4.50" Auto 1.98" Power 0.85" TPT101 Twisted Pair A/V Transmitter front view right side view bottom view TPT101 / TPR101 Operation Manual - Preliminary 8/18/2003 © 2003 - EXTRON, Inc.
  • Page 21 90-260 VAC; 0.25A; 47-63HZ VIDEO OUTPUT AUDIO OUTPUT CAT5 LINK SYNC SKEW ADJ PASS SYNC RED BLUE GRN © 2003 - EXTRON, Inc. TPT101 / TPR101 Operation Manual - Preliminary 8/18/2003...
  • Page 22 TPT101 / TPR101 Operation Manual - Preliminary 8/18/2003 © 2003 - EXTRON, Inc.
  • Page 23 Extron’s Warranty Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:...
  • Page 24 Extron Electronics, USA Extron Electronics, Europe Extron Electronics, Asia Extron Electronics, Japan 1230 South Lewis Street Beeldschermweg 6C 135 Joo Seng Road, #04-01 Daisan DMJ Building 6F Anaheim, CA 92805 3821 AH Amersfoort PM Industrial Building 3-9-1 Kudan Minami The Netherlands Singapore 368363 Chiyoda-ku, Tokyo 102-0074 Japan 714.491.1500...
