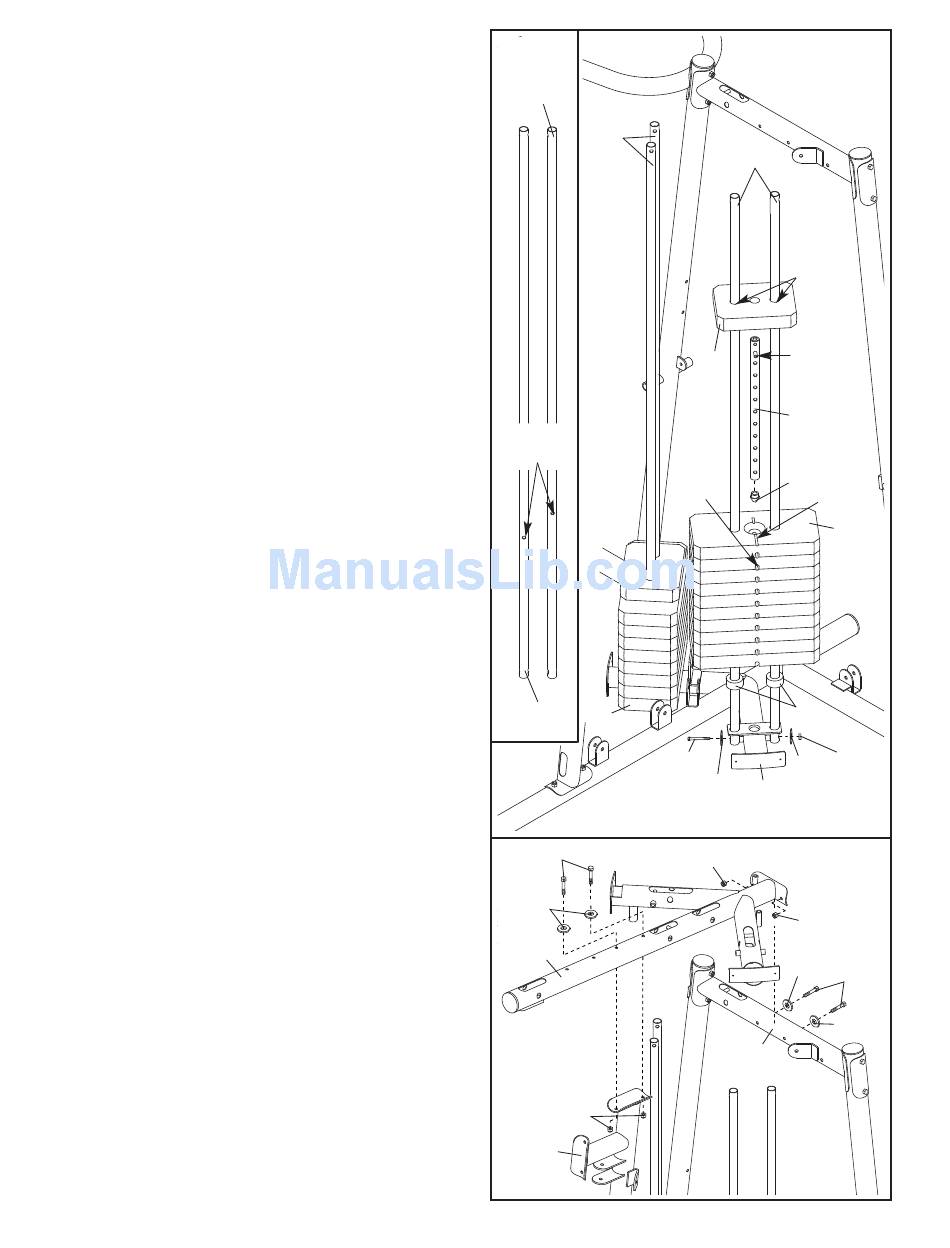

10. See the inset drawing. Identify the Front Weight
Guides (136), which have the lock holes closer to
the center than the Rear Weight Guides (24).
Orient the Weight Guides with the holes closer to
the bottom.
Attach the Front Weight Guides (136) to the Right
Base (1) with an M10 x 155mm Bolt (130), two
M10 Washers (116), and an M10 Nylon Locknut
(114).
Slide two Weight Bumpers (65) onto the Front
Weight Guides (136). Slide the ten Weights (35),
with the pin holes on the indicated side, onto the
Weight Guides.
Press a Weight Tube Bumper (66) into the Long
Weight Tube (36). Insert the Weight Tube into the
stack of Weights (35). Make sure the pin on the
Weight Tube sits in the groove on the top
Weight.
Grease the indicated holes in a Top Weight (34)
with an included grease pack. Slide the Top
Weight onto the Front Weight Guides (136).
Repeat this step with the Rear Weight Guides
(24) and eight Weights (35).
11. Attach the Right Top Frame (7) to the Right
Upright (4) with two M8 x 77mm Bolts (94), two
M8 Washers (117), and two M8 Nylon Locknuts
(115). Do not tighten the Locknuts yet.
Attach the Right Top Frame (7) to the Left Top
Frame (8) with two M8 x 77mm Bolts (94), two
M8 Washers (117), and two M8 Nylon Locknuts
(115). Do not tighten the Locknuts yet.
10
136
24
Lock
Holes
24
35
94
11
117
7
115
4
9
136
Grease
Pin
34
36
Pin
66
Holes
Groove
35
65
114
130
116
116
1
115
115
117
94
117
8
