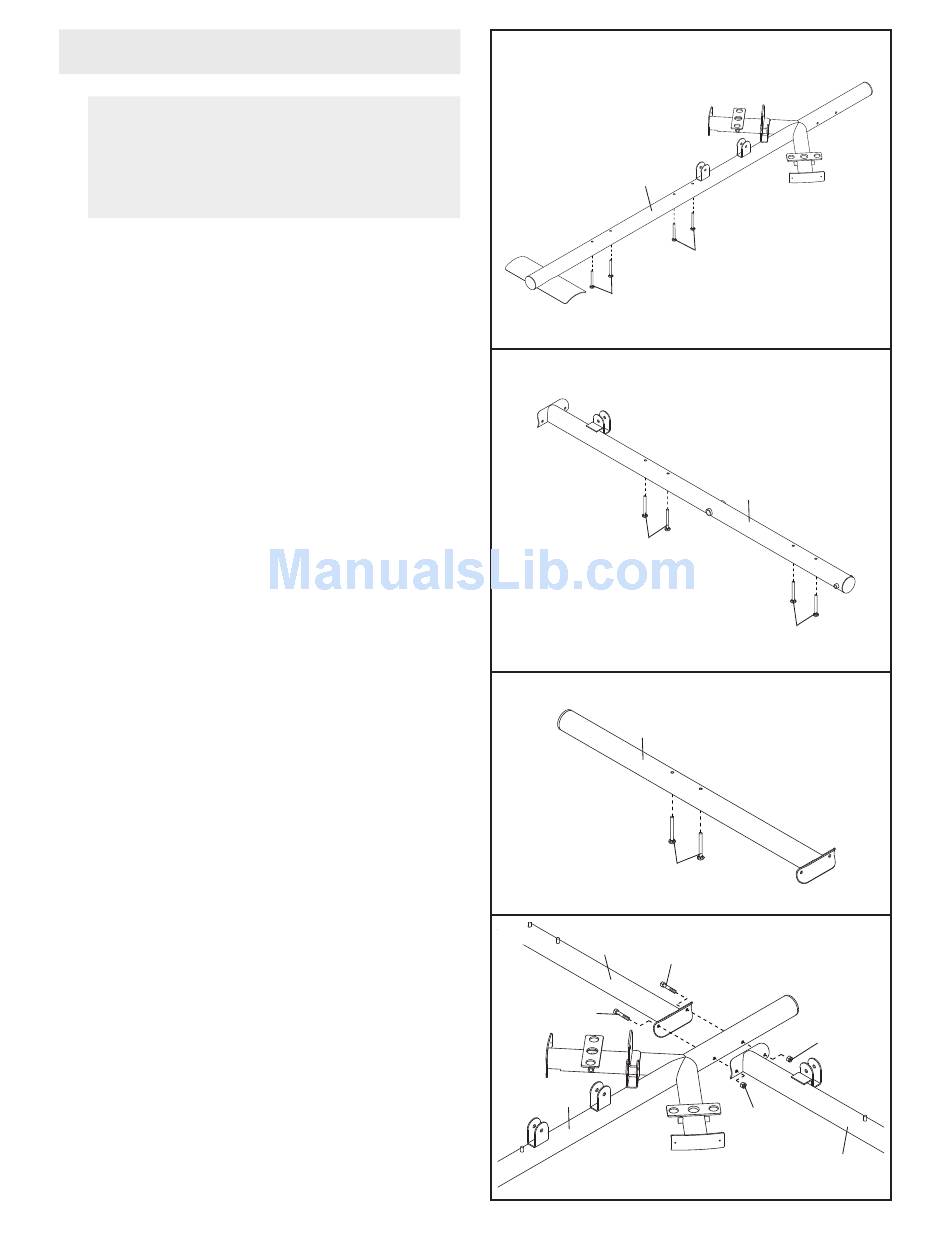

Frame Assembly
1.
Before beginning assembly, make sure you
understand the information in the box on
page 5. See the PART IDENTIFICATION
CHART in the center of this manual for help
identifying small parts.
Insert four M8 x 72mm Carriage Bolts (84) up
through the Right Base (1). Note: It may be
helpful to place a piece of tape over the bolt
heads to hold them in place.
2. Insert four M8 x 72mm Carriage Bolts (84) up
through the Left Base (2). Note: It may be help-
ful to place a piece of tape over the bolt heads
to hold them in place.
3. Insert two M8 x 72mm Carriage Bolts (84) up
through the Rear Base (3). Note: It may be help-
ful to place a piece of tape over the bolt heads
to hold them in place.
4. Attach the Rear Base (3) and the Left Base (2) to
the Right Base (1) with two M8 x 80mm Bolts (89)
and two M8 Nylon Locknuts (115). Do not tight-
en the Locknuts yet.
