Weider Pro 4900 Weight Exerciser User Manual page 13

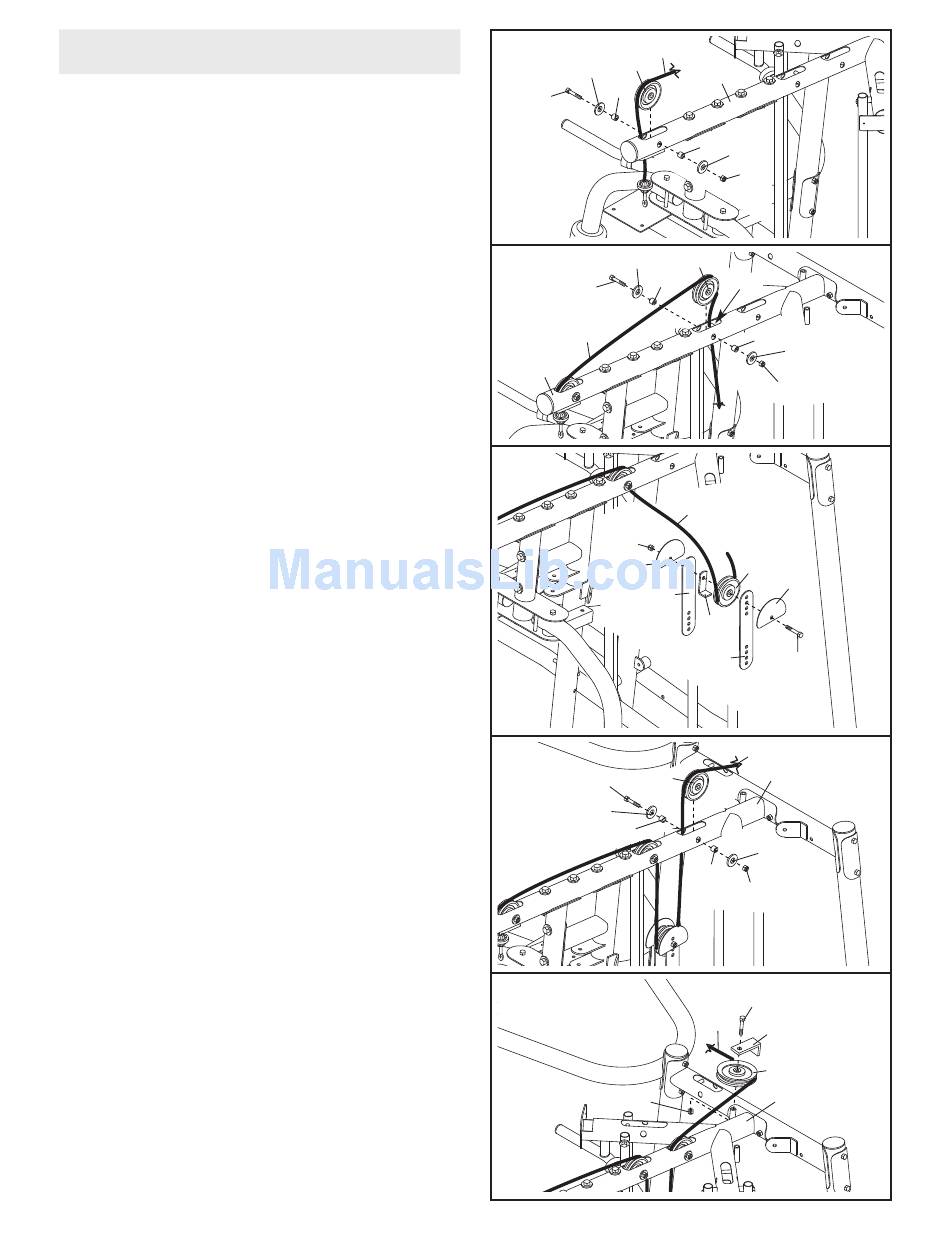

Cable Assembly
22. See the CABLE DIAGRAMS on pages 27 and
28 as you assemble the cables and to identify
the cables.
Locate the Lat Cable (71). Route the Cable up
through the Right Top Frame (7) and over a
90mm Pulley (39). Make sure the Cable is
between the Pulley and the rod in the Top
Frame. Attach the Pulley inside the Top Frame
with an M10 x 80mm Bolt (111), two M10
Washers (116), two 19mm Spacers (77), and an
M10 Nylon Locknut (114).
23. Route the Lat Cable (71) over a 90mm Pulley
(39) and down through the Right Top Frame (7).
Make sure the Cable is between the Pulley
and the rod in the Top Frame. Attach the Pulley
inside the Top Frame with an M10 x 80mm Bolt
(111), two M10 Washers (116), two 19mm
Spacers (77), and an M10 Nylon Locknut (114).
24. Wrap the Lat Cable (71) under a 90mm Pulley
(39). Attach the Pulley, a Small Cable Trap (48),
and two Half Finger Guards (42) at the second
hole from the top of the two Pulley Plates (51)
with an M10 x 48mm Bolt (102) and an M10
Nylon Locknut (114). Make sure the Cable Trap
and Finger Guards are oriented as shown.
25. Route the Lat Cable (71) up through the Right
Top Frame (7) and over a 90mm Pulley (39).
Make sure the Cable is between the Pulley
and the rod in the Top Frame. Attach the Pulley
inside the Top Frame with an M10 x 80mm Bolt
(111), two M10 Washers (116), two 19mm
Spacers (77), and an M10 Nylon Locknut (114).
26. Wrap the Lat Cable (71) around a 115mm Pulley
(41). Attach the Pulley and a Large Cable Trap
(125) to the Right Top Frame (7) with an M10 x
107mm Bolt (99) and an M10 Nylon Locknut
(114).
