Arm Assembly

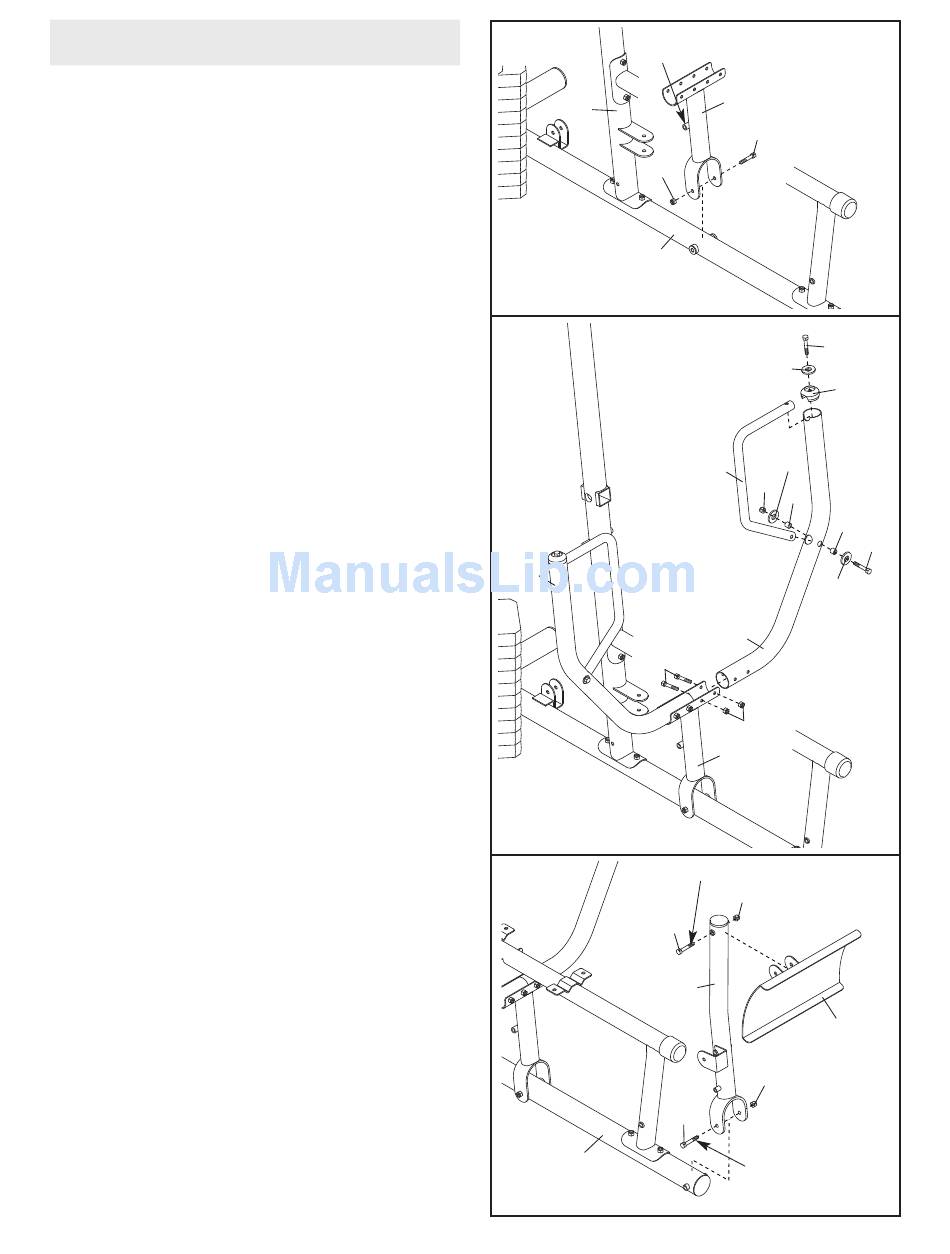

16. Grease an M10 x 107mm Bolt (99). Orient the
Press Frame (13) so that the welded tube is on
the side toward the Left Upright (5). Attach the
Press Frame to the Left Base (2) with the Bolt
and an M10 Nylon Locknut (114). Do not over-
tighten the Locknut; the Press Frame must be
able to pivot easily.
17. Remove the M10 x 45mm Button Bolt (105) from
a Press Arm (14).
Attach a Press Handle (16) to a Press Arm (14)
with an M10 x 65mm Bolt (96), two M10 Washers
(116), two M10 x 12mm Spacers (75), and an
M10 Nylon Locknut (114).
Attach a Press Arm Cap (56) to the Press Arm
(14) with an M10 x 45mm Button Bolt (105) and
an M10 Large Washer (134).
Attach the Press Arm (14) to the Press Frame
(13) with two M8 x 67mm Bolts (97) and two M8
Nylon Locknuts (115).
Repeat this step with the other Press Arm
(14).
18. Grease an M10 x 107mm Bolt (99). Attach the
Leg Press Frame (12) to the Left Base (2) with
the Bolt and an M10 Nylon Locknut (114). Do not
overtighten the Locknut; the Leg Press Frame
must be able to pivot easily.
Grease an M10 x 75mm Bolt (133). Attach the
Foot Plate (23) to the Leg Press Frame (12) with
the Bolt and an M10 Nylon Locknut (114). Make
sure the decal on the Foot Plate is right side
up. Do not overtighten the Locknut; the Foot
Plate must be able to pivot easily.
16
Tube
5
17
14
18
2
11
13
99
114
2
134
116
16
114
75
116
14
97
115
13
Grease
114
133
12
114
99
Grease
105
56
75
96
23
