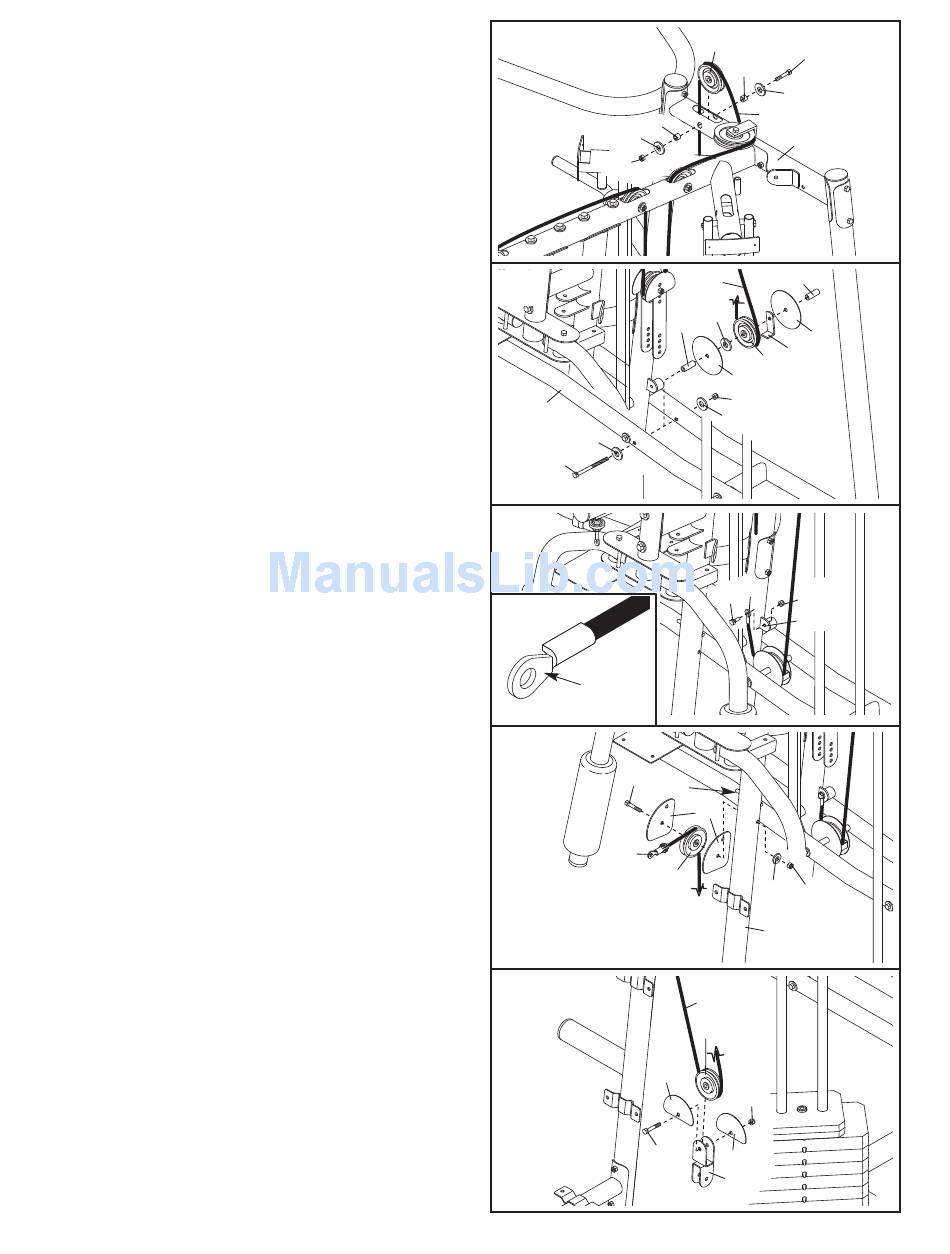

27. Route the Lat Cable (71) over a 90mm Pulley
(39) and down through the Left Top Frame (8).
Attach the Pulley inside the Top Frame with an
M10 x 80mm Bolt (111), two M10 Washers (116),
two 19mm Spacers (77), and an M10 Nylon
Locknut (114).
28. Wrap the Lat Cable (71) under a 90mm Pulley
(39). Attach the Pulley, a Small Cable Trap (48),
and two Full Finger Guards (43) to the Dip Assist
(21) with an M10 x 229mm Bolt (108), three M10
Washers (116), two 40mm Spacers (74), and an
M10 Nylon Locknut (114). Make sure the Cable
Trap is oriented as shown.
29. Attach the Lat Cable (71) to the bracket on the
Rear Upright (6) with an M8 x 20mm Shoulder
Bolt (88) and an M8 Nylon Locknut (115). Make
sure the flat edge of the Cable is against the
bracket.
30. Locate the Ab Cable (72). Wrap the Cable over
a 90mm Pulley (39). Attach the Pulley and the
two Quarter Guards (95) to the Right Upright (4)
with an M10 x 107mm Bolt (99), an M10 Washer
(116), and an M10 Nylon Locknut (114). Make
sure that the rod is inserted through both
Quarter Guards and is over the Cable.
31. Wrap the Ab Cable (72) under a 90mm Pulley
(39). Attach the Pulley and two Half Finger
Guards (42) to the Double "U"-bracket (52) with
an M10 x 45mm Bolt (101) and an M10 Nylon
Locknut (114). Make sure the Finger Guards
are oriented as shown.
