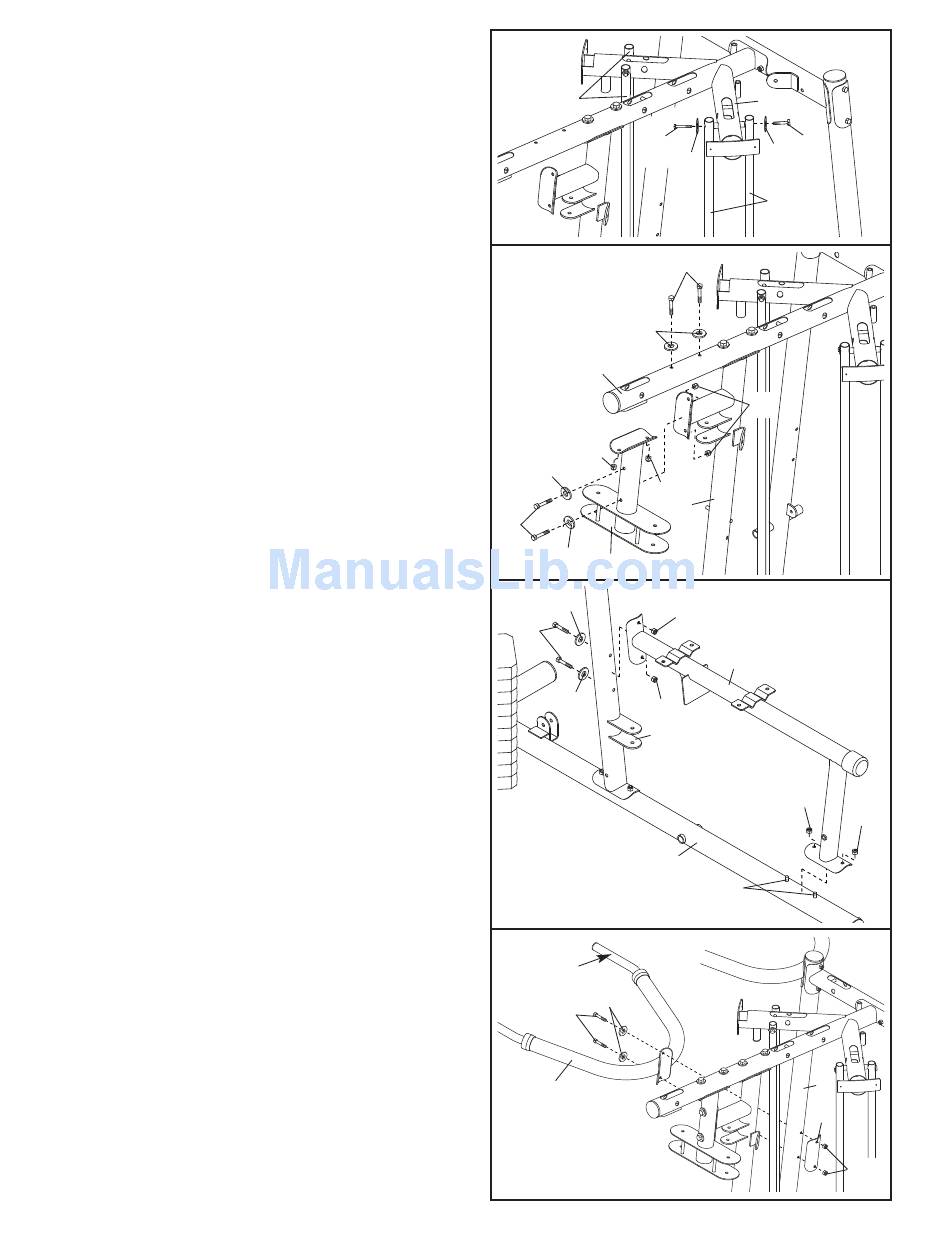

12. Attach the Front Weight Guides (136) to the Right
Top Frame (7) with two M10 x 38mm Screws (82)
and two M10 Washers (116).
Repeat this step with the Rear Weight Guides
(24).
13. Orient the Butterfly Frame (22) as shown. Attach
the Butterfly Frame to the Right Upright (4) with
two M8 x 70mm Bolts (91), two M8 Washers
(117), and two M8 Nylon Locknuts (115). Do not
tighten the Locknuts yet.
Attach the Butterfly Frame (22) to the Right Top
Frame (7) with two M8 x 77mm Bolts (94), two
M8 Washers (117), and two M8 Nylon Locknuts
(115). Do not tighten the Locknuts yet.
14. Attach the Left Seat Frame (10) to the Left Base
(2) with the two indicated M8 x 72mm Carriage
Bolts (84) and two M8 Nylon Locknuts (115). Do
not tighten the Locknuts yet.
Attach the Left Seat Frame (10) to the Left
Upright (5) with two M8 x 77mm Bolts (94), two
M8 Washers (117), and two M8 Nylon Locknuts
(115). Do not tighten the Locknuts yet.
Attach the Right Seat Frame (9) to the Right
Base (1) and the Right Upright (4) in the same
manner.
15. Attach the Dip Arm (20) to the Rear Upright (6)
with two M8 x 80mm Bolts (89), two M8 Washers
(117), the Rear Upright Plate (38), and two M8
Nylon Locknuts (115). Make sure the indicated
handle is horizontal.
Tighten the M8 Nylon Locknuts (115) used in
steps 4–15.
12
24
13
117
7
115
117
91
117
22
14
117
94
117
15
Handle
117
89
20
10
7
82
82
116
116
136
94
115
115
4
115
10
115
5
115
2
84
6
38
115
115
