BNC Port

The BNC port provides a 10 Mbps connection only.
The following table shows the cable requirement and maximum network cable length for
the BNC port.
Port
BNC
To connect the BNC port:

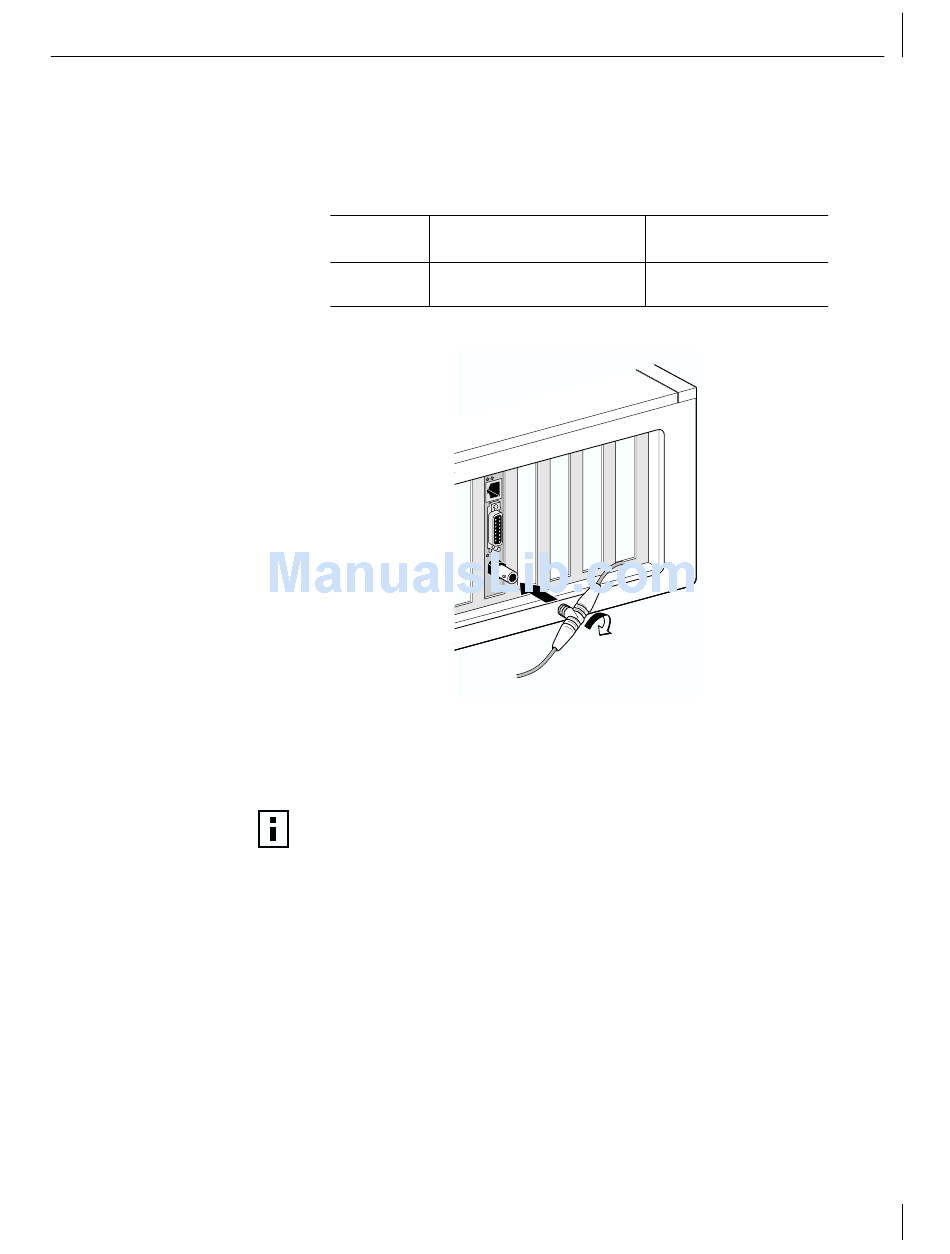

1 Connect the BNC connector on the thin Ethernet cable to the BNC port on the NIC.
2 Connect the other end of the network cable to another PC or to a 50-ohm terminator.
NOTE: If your PC is the last physical device in the network daisy chain, you must
connect a 50-ohm terminator to the other end of the BNC T-connector.
The next step is to install the NIC driver. Go to "Installing the NIC Driver and Software
in Windows" on page 19 or "Installing the NetWare Server Driver" on page 27.
Connecting the NIC to the Network
Cable Required
10BASE2 thin Ethernet coaxial
(10 Mbps only)
Maximum Network
Cable Length
185 m (607 ft)
15
