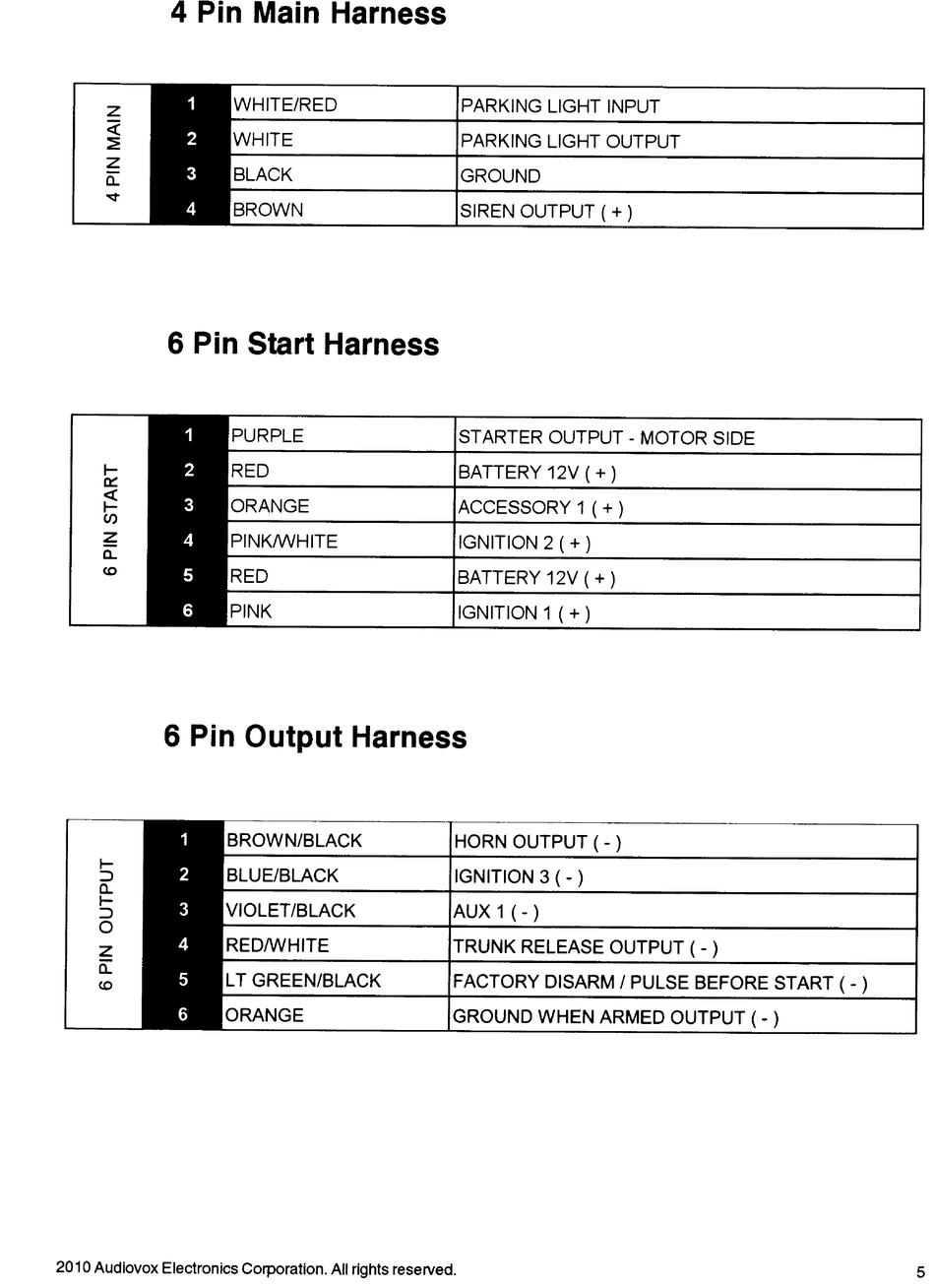

Pin Main Harness; Pin Start Harness; Pin Output Harness - Code Alarm CA 6551 Owner's Manual

4 Pin Main Harness
z
WHITE/RED PARKING LIGHT INPUT
«
WHITE PARKING LIGHT OUTPUT
~
z
BLACK GROUND
a..
~
SIREN OUTPUT (
+ )
BROWN
6 Pin Start Harness
PURPLE STARTER OUTPUT - MOTOR SIDE
l-
RED BATTERY 12V (+)
c:::
~
ORANGE ACCESSORY 1 ( + )
(/)
z
PINKIWHITE
IGNITION 2 (+)
a..
<0
RED
BATTERY 12V (+)
PINK IGNITION 1 ( + )
6 Pin Output Harness
l-
=>
a..
l-
=>
o
z
a:
<0
BROWN/BLACK
BLUE/BLACK
VIOLET/BLACK
REDIWHITE
LT GREEN/BLACK
ORANGE
HORN OUTPUT ( - )
IGNITION
3 ( - )
AUX 1 ( - )
TRUNK RELEASE OUTPUT ( - )
FACTORY DISARM / PULSE BEFORE START (-)
GROUND WHEN ARMED OUTPUT ( - )
2010 Audiovox Electronics Corporation. All rights reserved.
5
