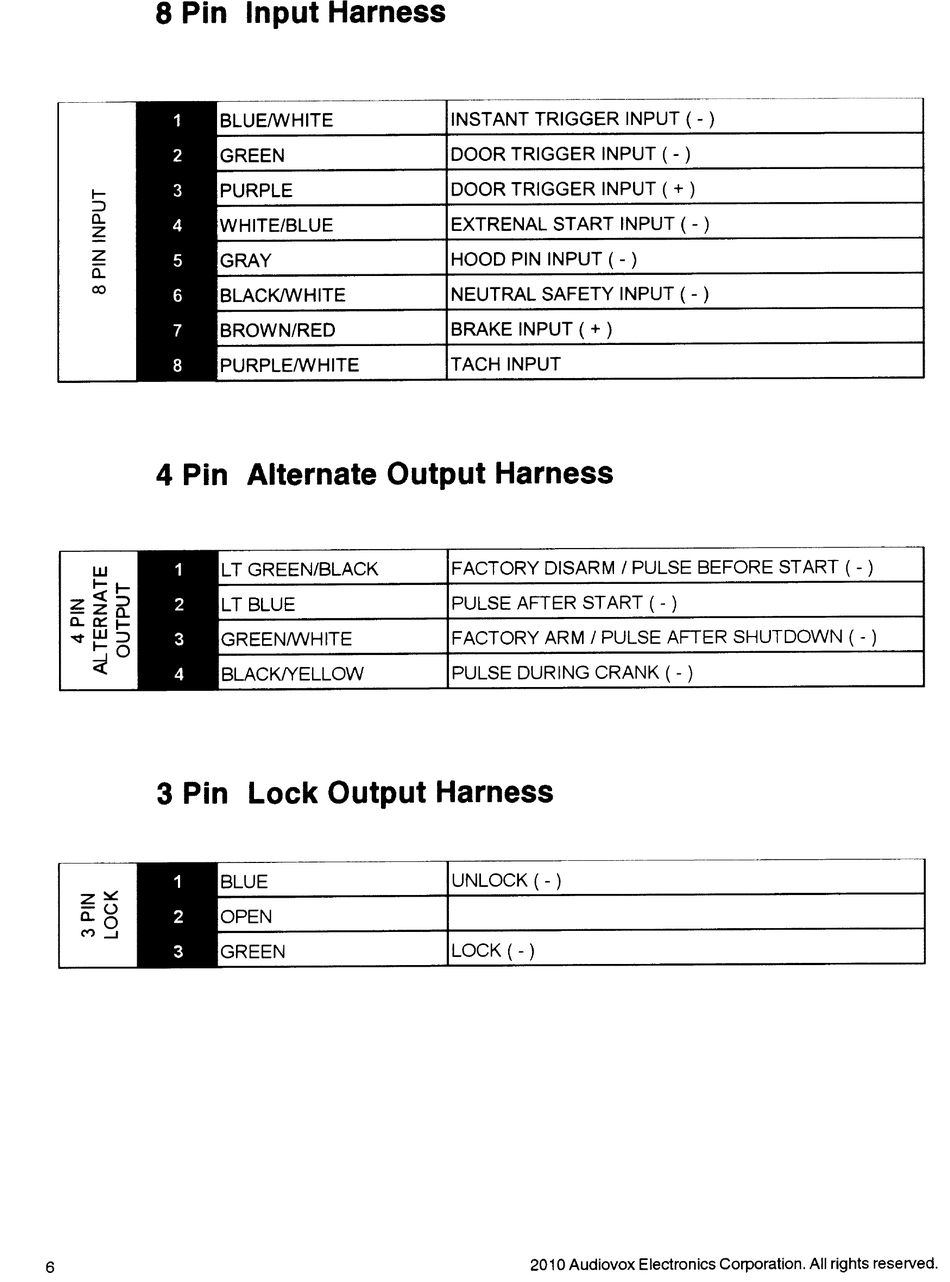

8 Pin Input Harness
BLUEIWHITE INSTANT TRIGGER INPUT ( - )
GREEN DOOR TRIGGER INPUT ( - )
t-
PURPLE
DOOR TRIGGER INPUT ( + )
~
a..
WHITE/BLUE EXTRENALSTARTINPUT(-) z
z
GRAY HOOD PIN INPUT ( - )
a..
co
BLACKIWHITE NEUTRALSAFETYINPUT(-)
BROWN/RED BRAKE INPUT ( + )
PURPLEIWHITE TACH INPUT
4 Pin Alternate Output Harness
LT GREEN/BLACK
LT BLUE
GREENMIHITE
BLACKIYELLOW
FACTORY DISARM / PULSE BEFORE START ( - )
PULSE AFTER START ( - )
FACTORY ARM / PULSE AFTER SHUTDOWN (-)
PULSE DURING CRANK (-)
3 Pin Lock Output Harness
z~
-u
0..
0
("').....J
BLUE
OPEN
GREEN
UNLOCK (-)
LOCK ( - )
6
