Code Alarm PROFESSIONAL SERIES ca6554 Owner's Manual

Deluxe vehicle security and remote start system with 2 way confirming lcd remote control professional series
Hide thumbs Also See for PROFESSIONAL SERIES ca6554:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual

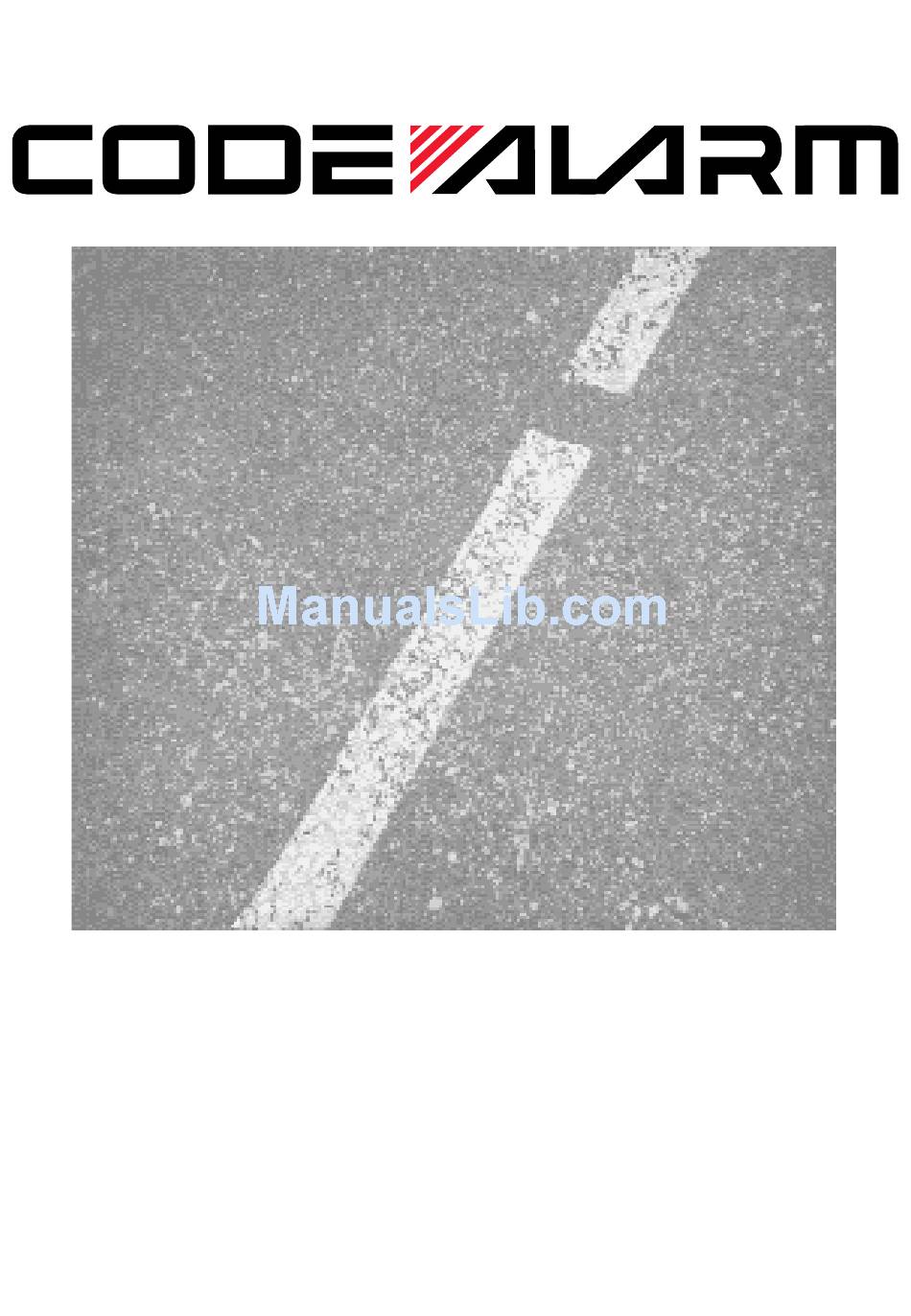

PROFESSIONAL
SERIES
Owner's Guide
For Models:
ca6554
Deluxe Vehicle Security and
Remote Start System with 2 Way Confirming

LCD Remote Control

IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is
applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR
SAFETY PRECAUTIONS may not apply. Please see your installing dealer for more information.
2014 Voxx Electronics Corporation. All rights reserved.
1

Advertisement

Table of Contents
loading

Related Manuals for Code Alarm PROFESSIONAL SERIES ca6554

Summary of Contents for Code Alarm PROFESSIONAL SERIES ca6554

  • Page 1: Lcd Remote Control

    PROFESSIONAL SERIES Owner’s Guide For Models: ca6554 Deluxe Vehicle Security and Remote Start System with 2 Way Confirming LCD Remote Control IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR SAFETY PRECAUTIONS may not apply.

  • Page 2: Table Of Contents

    Table of Contents Using Your Remote Control ..............3 Arming the Security System .............. 3 Passive Arming Bypass ..............3 Bypassing the Shock Sensor ............3 Hidden Alarm Function ..............3 Disarming the Security System ............3 Two Stage Door Unlock (optional) ............. 4 Activating Trunk Release (optional) ...........

  • Page 3: Using Your Remote Control

    Using Your Remote Control Arming the Security System To arm the system, exit the vehicle, close all doors, then press the button. The parking lights will flash 2 times, indicating the system is armed, has locked the doors (if equipped and connected) and activated the starter disable feature. The LED status indicator will blink steadily, once per second.

  • Page 4: Two Stage Door Unlock (Optional)

    Two Stage Door Unlock (Optional) If this feature is enabled on your system, pressing the button one time will unlock only the driver’s door. Press again within three seconds to unlock the remaining doors. Activating the Trunk Release Feature (Optional) If this feature is enabled on your system, pressing and holding the button for 3 seconds will open the vehicle’s trunk or hatch.

  • Page 5: Using The Progressive Car Finder Feature

    Using the Progressive Car Finder Feature Press the button to locate your vehicle. The system will flash the parking lights and sound 5 times at low volume, increasing in volume each time the button is pressed. Using the Personal Protection Alarm (Panic) Press and hold the button for 3 seconds to activate the personal protection alarm.

  • Page 6: Manually Overriding The Security System

    Manually Overriding the Security System Your system can be disarmed without the use of the transmitter. This is necessary, since you will need the ability to operate your vehicle if the transmitter is lost or its battery fails. To by-pass the alarm system; Open the vehicle door.

  • Page 7: Using Your Remote Vehicle Starter

    Using Your Remote Starter Remote Start Ready Mode must be enabled if your vehicle is equipped with a manual transmission. Remote Start Ready Mode - Manual Transmission Vehicles Only To activate the remote start function, the system must first be in Remote Start Ready Mode.

  • Page 8: Remote Starting Your Vehicle

    Remote Starting Your Vehicle To activate the remote vehicle start function, press and release the button 2 times within 2 seconds. The system will sound, the parking lights will flash 1 time and the system will check the vehicle to ensure it is safe to start. If all safety parameters are correct, the vehicle will start within 5 seconds.

  • Page 9: User Programmable Run Time / Run Time Extension

    User Programmable Run Time / Run Time Extension The system has the ability to allow the user to extend the time the vehicle will be running under control of the remote start. This will only extend the run time back to the current run time setting during the current remote start cycle.

  • Page 10: Turbo Timer Mode (Optional)

    To begin the 2 / 3 hour start up timer mode: Turn the vehicle’s ignition ON then OFF. Press and hold the valet button. Press the button 4 times, the system will; When set for 3 Hour (default) - chirp 2 times and flash the parking lights 4 times.

  • Page 11: Operating The Daily Start Timer

    Operating the Daily Start Timer The system has the ability to start your vehicle based on a 24-hour countdown timer. This feature requires a two-part activation sequence. From the remote, while in range of the vehicle, pressing both the & buttons together will activate the 24 hour countdown timer (the vehicle will start 24 hours from this time).

  • Page 12: Led And Siren/Horn Indications

    LED and Siren/Horn Indications LED Display Indications Function DISARMED SLOW FLASH ARMED FAST FLASH PASSIVE ARMING ON (SOLID) VALET MODE 2 FLASH... PAUSE ZONE 2 TRIGGER, HOOD/TRUNK 3 FLASH... PAUSE ZONE 3 TRIGGER, DOOR 4 FLASH... PAUSE ZONE 4 TRIGGER, SHOCK 5 FLASH...

  • Page 13: Additional 2-Way Lcd Remote Control Functions

    Additional 2-Way LCD Remote Control Functions Check Vehicle Status Press and release 2 times then press within 3 seconds, the transmitter will display the current status of the vehicle. Display Illumination Press and hold the button for 1 second. The display will illuminate for 5 seconds. Melody / Vibration Mode To have the remote control vibrate, play a melody tone or both each time it receives a response from the vehicle press and release...
  • Page 14 Button Lock Press and release then press hold the for 2 seconds to toggle the button lock on or off. When the button lock is active, the remote control will beep/vibrate 2 times when a button is pressed indicating it is locked. Illumination Press and release 2 times then press and hold...

  • Page 15: Lcd Remote Control Icon's

    LCD Remote Control ICON’s UNLOCK LOCK VALET MODE SYSTEM ARMED IGNITION ON/TRIGGER TRANSMITTING TRUNK TRIGGER DOOR TRIGGER HOOD TRIGGER FULL SHOCK TRIGGER SYSTEM TRIGGER TIME COUNT DOWN BATTERY INDICATOR BATTERY SAVE MODE MELODY MODE VIBRATE/SILENT MODE TIME DISPLAY 2 CAR MODE ALARM CLOCK ENGINE RUNNING TIMER / TEMP.

  • Page 16: Transmitter Button Functions

    Transmitter Button Functions 1 Way Car Find / Lock Unlock Start Operation Method Transmitter Panic Lock Press and Release Unlock Press and Release 2 Step Unlock Press and Release 2 times Trunk Push and Hold (3 Sec) Car Finder Press and Release Panic Push and Hold (3 Sec) Press and Release (1 or 2 times...
  • Page 17 2 Way Car Find / Lock Unlock Start Function Operation Method Transmitter Panic Lock Press and Release Unlock Press and Release 2 Step Unlock Press and Release 2 times Trunk Push and Hold (3 Sec) Car Finder Press and Release Panic Push and Hold (3 Sec) Press and Release (1 or 2 times...

  • Page 18: Replacing Remote Control Batteries

    Replacing Remote Control Batteries 1 Way 4 Button Remote Control - Model CAT4 The batteries inside each remote control should last approximately 1 year under normal use. When the batteries become weak you will notice the remote control range (the distance from the vehicle the remote control will work) deteriorate and the small LED on the remote control will dim.

  • Page 19: Warranty Information

    Code Systems, Inc. Limited Lifetime Warranty Code Systems Inc. (“CODE”) warrants to the ORIGINAL PURCHASER of this CODE vehicle security product (the “Product”), purchased from an authorized CODE dealer, that (except as provided below) should this Product under normal use and conditions, be proven defective in material or work- manship DURING THE LIFETIME OF THE VEHICLE IN WHICH IT WAS ORIGINALLY INSTALLED, such defect(s) will be repaired or replaced (at CODE’s option) without charge for parts directly related to repairs of the defect(s).
  • Page 20 ca6554 Owners revA...

  • Page 21: Customer Service

    Voxx Electronics Corporation. Customer Service 1-800-421-3209 WWW.CODE-ALARM.COM FCC COMPLIANCE This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
