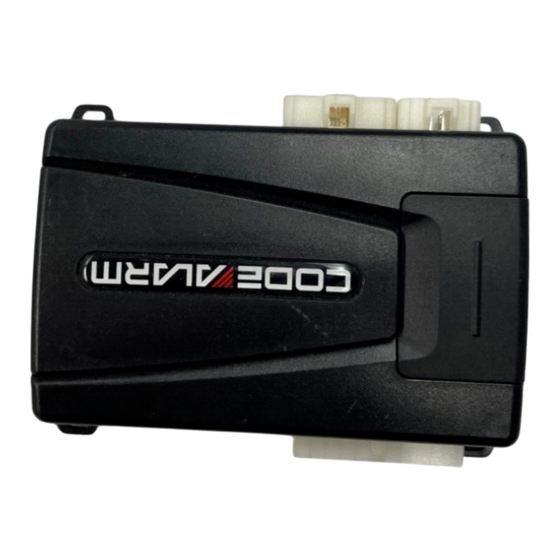

Code Alarm CA 680 Owner's Manual

Code Alarm CA 680 Owner's Manual

Deluxe vehicle security and remote start system with two way confirming dot matrix remote control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Remote Vehicle Control System
CA 680
Owner's Manual
Deluxe Vehicle Security and Remote
Start System with Two Way
Confirming Dot Matrix Remote
Control
IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is
applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR SAFETY
PRECAUTIONS may not apply. Please see your installing dealer for more information.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA 680 and is the answer not in the manual?

Questions and answers

Related Manuals for Code Alarm CA 680

Summary of Contents for Code Alarm CA 680

  • Page 1 Remote Vehicle Control System CA 680 Owner's Manual Deluxe Vehicle Security and Remote Start System with Two Way Confirming Dot Matrix Remote Control IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR SAFETY...

  • Page 2: Table Of Contents

    Table of Contents Using Your Remote Control ... 3 Arming the security system Pre-arm mode Disarming the security system Disabling/Enabling confirmation chirps Attempted intrusion identification Two stage door unlock* Activating the trunk release feature* Using Your Remote Control, continued ... 4 Turning on the vehicle’s headlights* Activating optional AUX 1* Activating optional AUX 2*...

  • Page 3: Using Your Remote Control

    Using Your Remote Control Arming the Security System To arm the system, exit the vehicle, close all doors, then press the LOCK icon button on the remote control. The system will sound twice and the parking lights will flash twice, indicating the system is armed.

  • Page 4: Using Your Remote Control, Continued

    Using Your Remote Control, continued Turning on the Vehicle’s Headlights (Optional) If this feature is enabled on your system, pressing and holding the LOCK icon button on the remote control for 2 seconds will turn on the vehicle’s headlights for 30 seconds. Activating Optional AUX 1 (Optional) If this feature is enabled on your system, pressing and holding the LOCK icon button and the TRUNK icon button on the remote control simultaneously will activate an optional feature.

  • Page 5: Using Your Remote Vehicle Starter

    Using Your Remote Vehicle Starter Remote Starting Your Vehicle To activate the remote vehicle start function, press and release the OPTION button on the remote control two (2) times within 2 seconds. The system will sound, the parking lights will flash 1 time and the system will check the vehicle to ensure it is safe to start, if all safety parameters are correct, the vehicle will start within 5 seconds (diesel vehicles will take longer).

  • Page 6: Using Your Remote Vehicle Starter, Continued

    Using Your Remote Vehicle Starter, continued Operating the 2 / 4 Hour Start Up Timer Mode The system has the ability to start the vehicle every 2 or 4 hours over a 48 hour period. This feature is especially useful in cold climates where the only means to keep the engine and engine fluids warm is to periodically start the engine.

  • Page 7: Using Your Remote Vehicle Starter, Continued

    Using Your Remote Vehicle Starter, continued Operating the Daily Start Timer The system has the ability to start your vehicle based on a 24-hour countdown timer. To activate this feature, using the remote control press the LOCK and OPTION buttons simultaneously for 1 second. The system will begin counting down from 24 hours, and start the vehicle when it reaches zero.

  • Page 8: Additional Dot Matrix Remote Control Features

    Additional Dot Matrix Remote Control Functions Dot Matrix Remote Control Display Illumination Press and release the “F” button on the LCD remote control one time. The display will illuminate for 10 seconds. Dot Matrix Remote Control Vibrate or Tones Press an release the “F” button and the UNLOCK icon button on the LCD remote control simultaneously one time to toggle between beep tones and vibrate mode.

  • Page 9: Additional Dot Matrix Remote Control Features, Continued

    Additional Dot Matrix Remote Control Functions, cont. Check Vehicle Status Press the LOCK icon button, TRUNK icon button and OPTION button simultaneously for 1 second. The Dot Matrix remote control will display the system’s current status. Check Temperature Press the TRUNK icon button and OPTION button simultaneously for 1 second. The LCD remote control will display the vehicle’s interior temperature.

  • Page 10: Dot Matrix Remote Control Options Menu

    Additional Dot Matrix Remote Control Functions, cont. Dot Matrix Remote Control Options Menu Accessing the Options Menu 1. Press and hold the “F” button for 3 seconds. 2. Use the TRUNK or OPTION button to scroll up and down through the the menu. 3.

  • Page 11: Dot Matrix Remote Control Icons And Their Indications

    Optional Screen Icons and their Indications (Icon Mode only) SECURITY FUNCTIONS DOOR OPEN/TRIGGER IGNITION TRIGGER SENSOR BYPASS SENSOR TRIGGER CHANNEL OUTPUT 1-4 REMOTE START FUNCTIONS INHIBIT REMOTE START REMOTE START INHIBIT SILENT ARM TRUNK OUTPUT/TRIGGER SENSOR 2 TRIGGER SAFETY SW SAFTY SWITCH VALET MODE DISARM...

  • Page 12: Optional Song Bird Feature

    Optional Song Bird Feature The optional Song Bird feature (Code Alarm SB1 accessory Speaker and labor required) allows you to program songs and tones to your system (i.e. Setting a different tone for Lock activation and unlock activation). Turning Song Bird On: Press and release the TRUNK icon button on the remote control, then press and hold the LOCK icon button on the remote control within 2 seconds.

  • Page 13: Emergency Override Procedure

    Emergency Override Procedure If your transmitter is lost or disabled, it will be necessary use the emergency override button to turn the security system off. There are two types of emergency override procedures. Check with your installing dealer to find out what has been activated on your system. Standard Emergency Override Procedure Enter the vehicle (the security system will trigger.
  • Page 15 FCC COMPLIANCE This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including any interference that may cause undesired operation.
