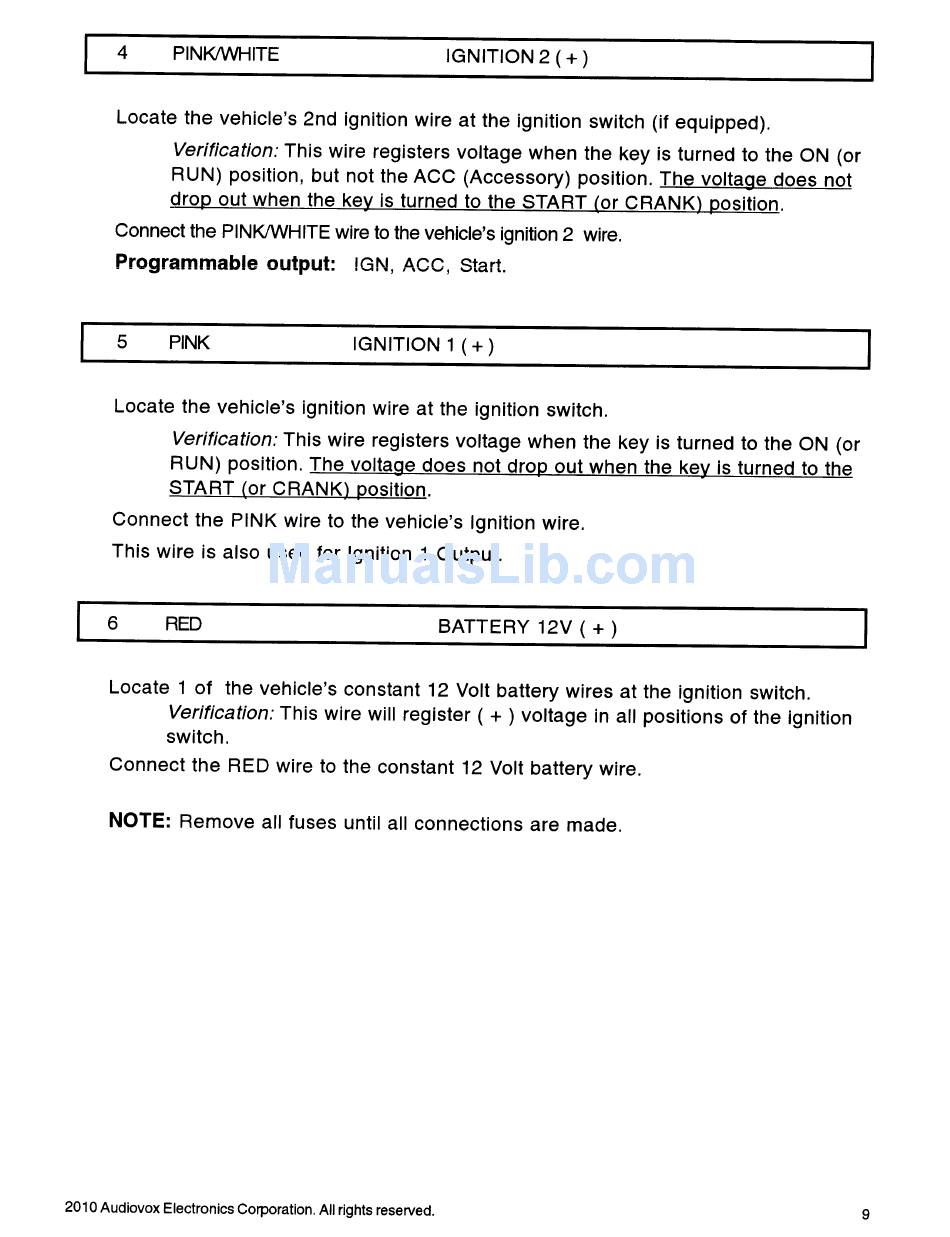

4
PINKtWHITE
IGNITION 2 (
+ )
Locate the vehicle's 2nd ignition wire at the ignition switch (if equipped).
Verification: This wire registers voltage when the key is turned to the ON (or
RUN) position, but not the ACC (Accessory) position. The voltage does not
drop out when the key is turned to the START (or CRANK) position.
Connect the PINKIWHITE wire to the vehicle's ignition 2 wire.
Programmable output: IGN, ACC, Start.
5 PINK IGNITION 1 (
+ )
Locate the vehicle's ignition wire at the Ignition switch.
Verification: This wire registers voltage when the key is turned to the ON (or
RUN) position. The voltage does not drop out when the key is turned to the
START (or CRANK) position.
Connect the PINK wire to the vehicle's Ignition wire.
This wire is also used for Ignition 1 Output.
6
RED BATTERY 12V ( + )
Locate 1 of the vehicle's constant 12 Volt battery wires at the ignition switch.
Verification: This wire will register (
+ )
voltage in all positions of the ignition
switch.
Connect the RED wire to the constant 12 Volt battery wire.
NOTE: Remove all fuses until all connections are made.
