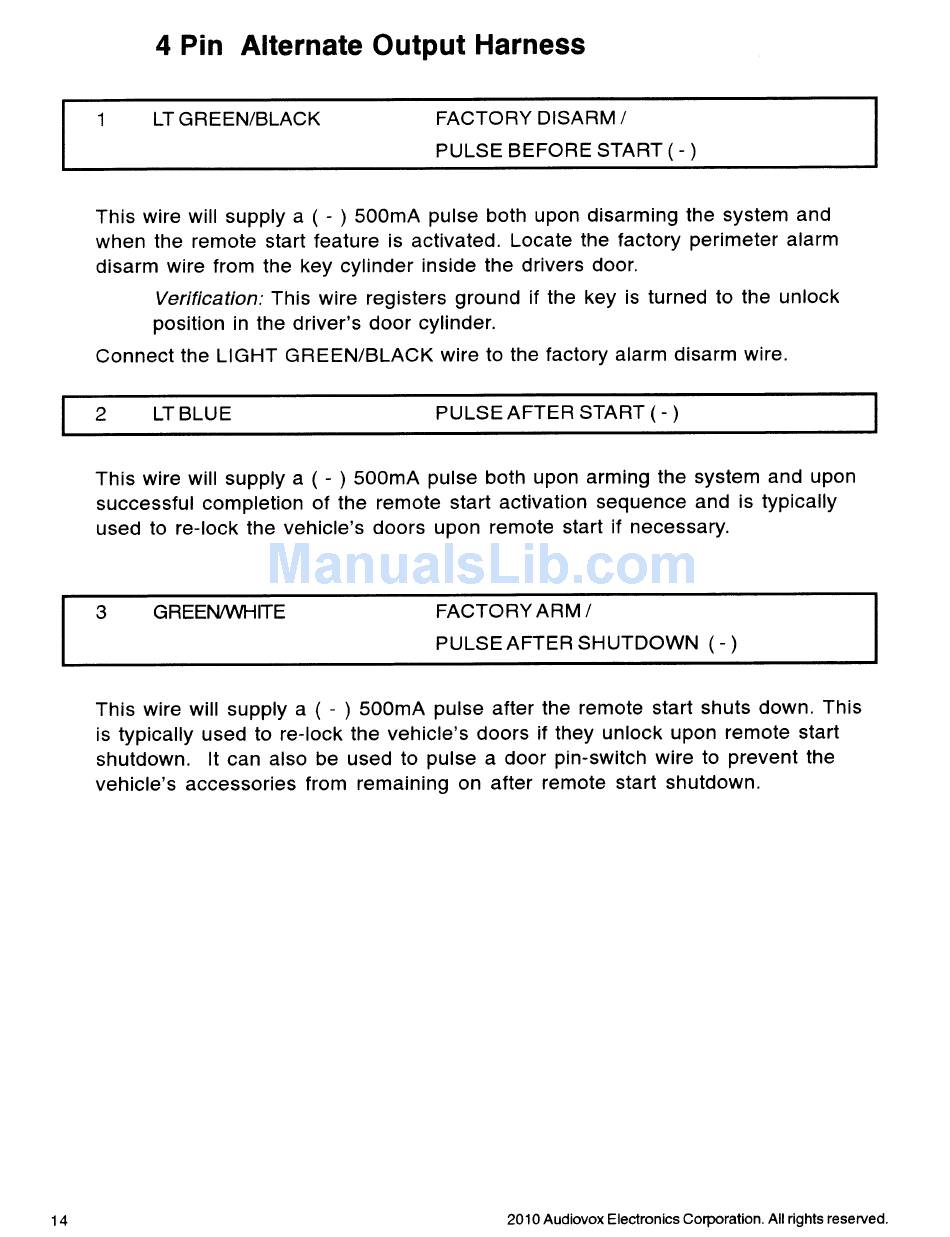

4 Pin Alternate Output Harness
1 LT GREEN/BLACK FACTORY DISARM /
PULSE BEFORE START ( - )
This wire will supply a ( - ) 500mA pulse both upon disarming the system and
when the remote start feature is activated. Locate the factory perimeter alarm
disarm wire from the key cylinder inside the drivers door.
Verification: This wire registers ground if the key is turned to the unlock
position in the driver's door cylinder.
Connect the LIGHT GREEN/BLACK wire to the factory alarm disarm wire.
2 LT BLUE PULSE AFTER START ( - )
This wire will supply a ( - ) 500mA pulse both upon arming the system and upon
successful completion of the remote start activation sequence and is typically
used to re-Iock the vehicle's doors upon remote start if necessary.
3 GREENlWHITE
FACTORY ARM /
PULSE AFTER SHUTDOWN (-)
14
This wire will supply a ( - ) 500mA pulse after the remote start shuts down. This
is typically used to re-Iock the vehicle's doors if they unlock upon remote start
shutdown. It can also be used to pulse a door pin-switch wire to prevent the
vehicle's accessories from remaining on after remote start shutdown.
