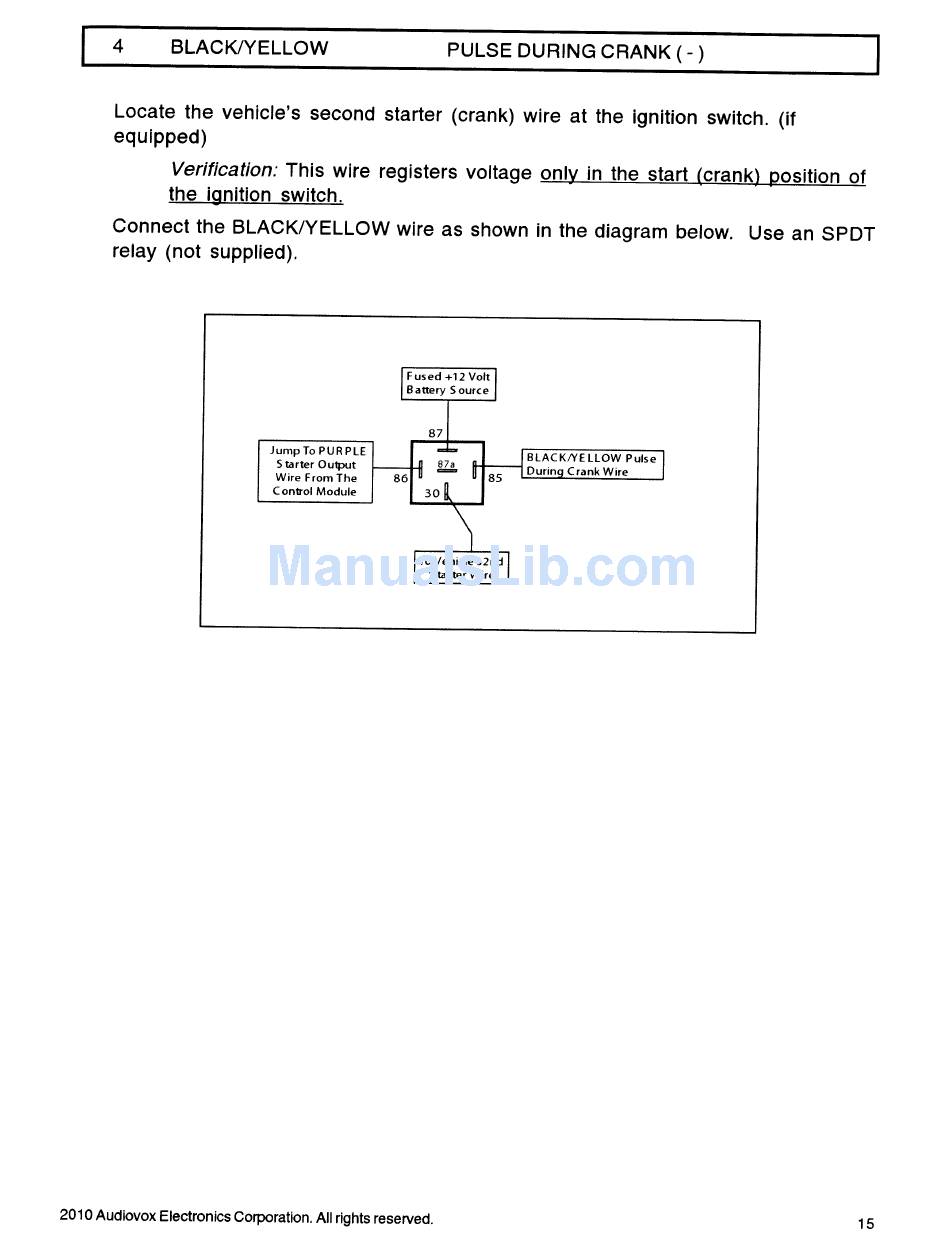

4 BLACK/YELLOW PULSE DURING CRANK ( - )
Locate the vehicle's second starter (crank) wire at the ignition switch. (if
equipped)
Verification: This wire registers voltage only in the start (crank) position of
the ignition switch.
Connect the BLACK/YELLOW wire as shown in the diagram below. Use an SPOT
relay (not supplied).
Fused +12 Volt
Battery
SOUr(
e
Jump To PURPLE
S tarter Output
1---+11
Wire From The
Control Module
