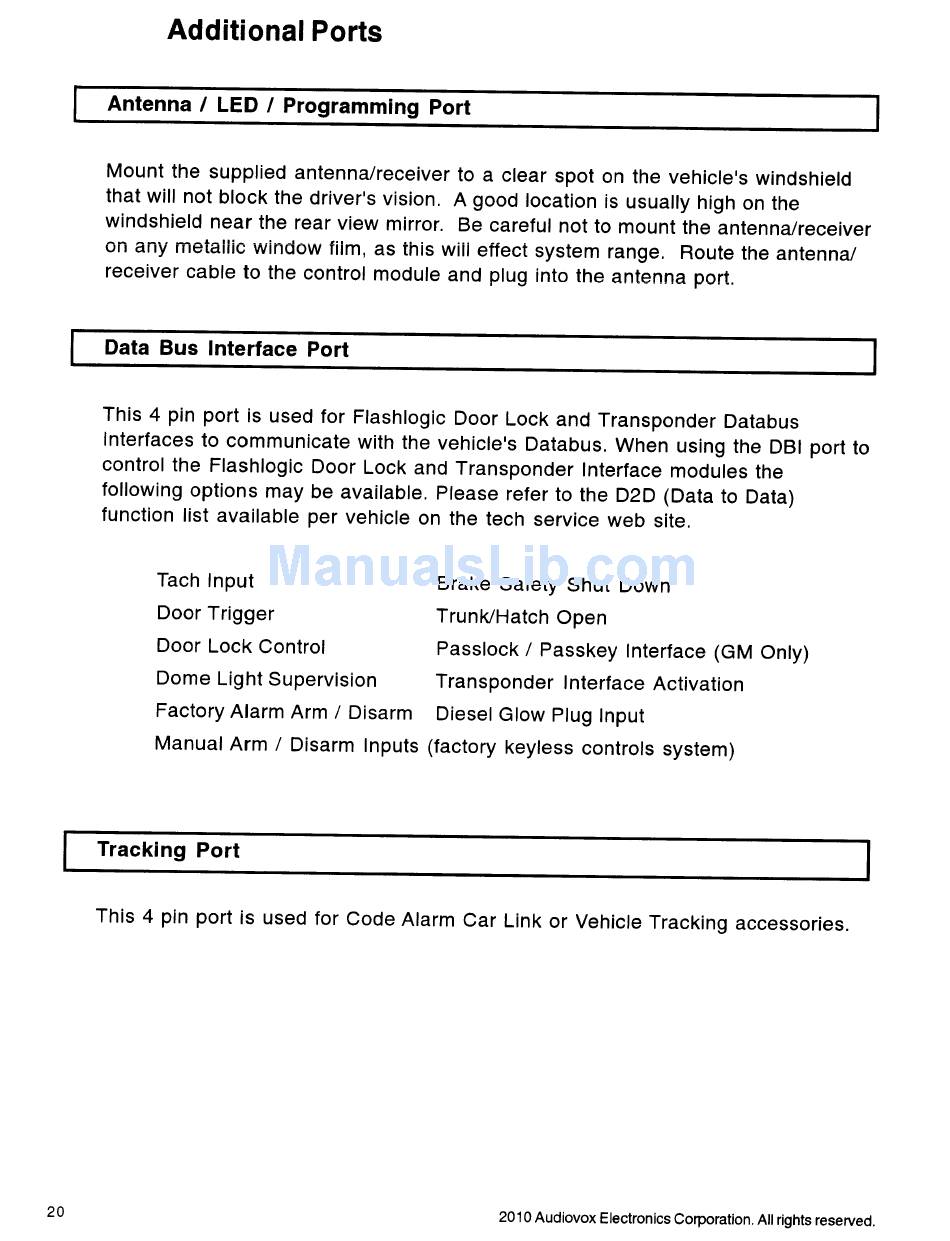

Additional Ports
Antenna I LED I Programming Port
Mount the supplied antenna/receiver to a clear spot on the vehicle's windshield
that will not block the driver's vision. A good location is usually high on the
windshield near the rear view mirror. Be careful not to mount the antenna/receiver
on any metallic window fiim, as this will effect system range. Route the antenna!
receiver cable to the control module and plug into the antenna port.
Data Bus Interface Port
This 4 pin port is used for Flashlogic Door Lock and Transponder Databus
Interfaces to communicate with the vehicle's Databus. When using the OBI port to
control the Flashlogic Door Lock and Transponder Interface modules the
following options may be available. Please refer to the 020 (Data to Data)
function list available per vehicle on the tech service web site.
Tach Input Brake Safety Shut Down
Door Trigger Trunk/Hatch Open
Door Lock Control Passlock / Passkey Interface (GM Only)
Dome Light Supervision Transponder Interface Activation
Factory Alarm Arm / Disarm Diesel Glow Plug Input
Manual Arm / Disarm Inputs (factory keyless controls system)
Tracking Port
This 4 pin port is used for Code Alarm Car Link or Vehicle Tracking accessories.
