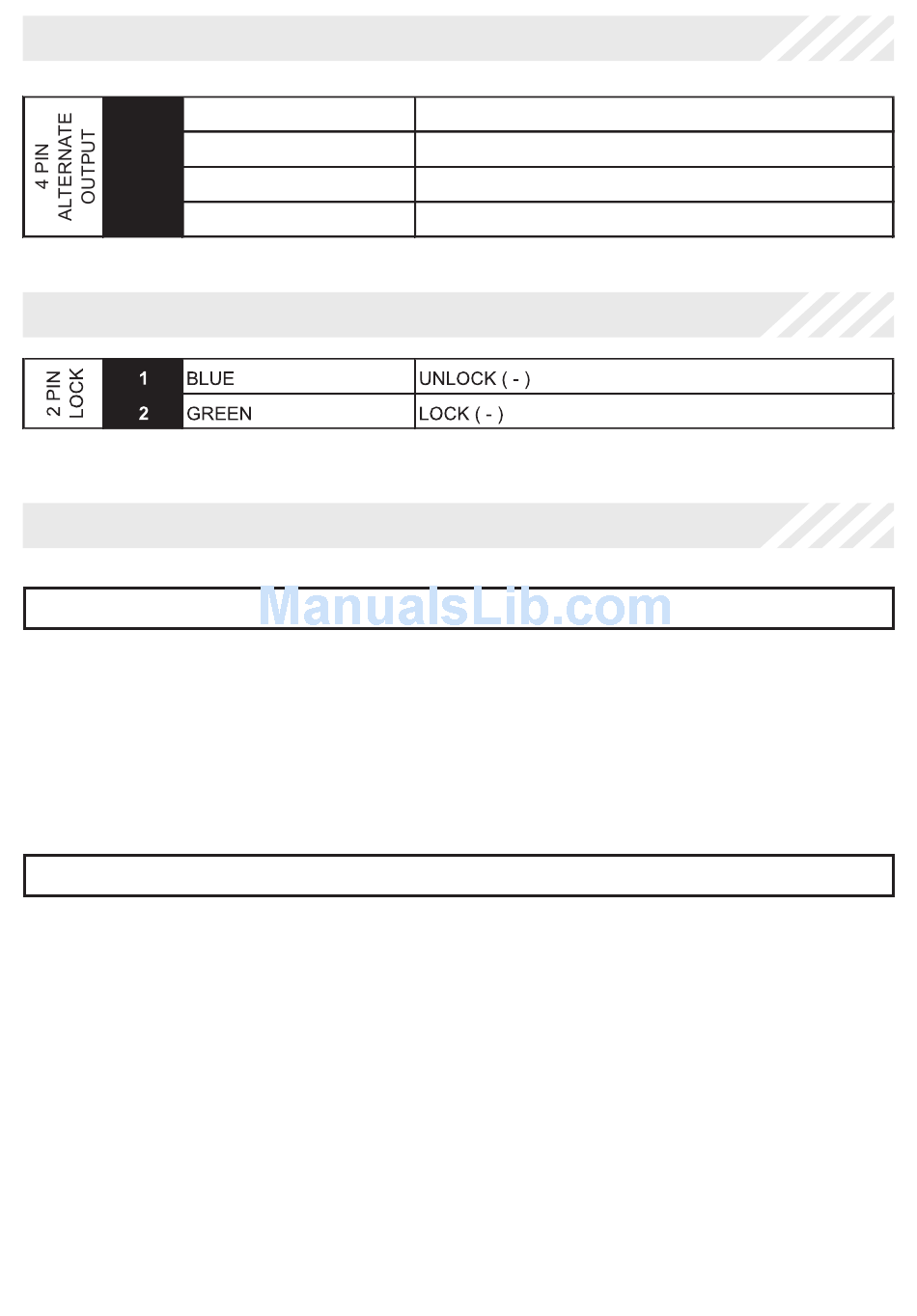

4 Pin Alternate Harness
1
2
3
4
2 Pin Door Lock Harness
11 Pin Main Harness
1
GRAY/RED
Locate the vehicle's parking brake wire.
Verification: This wire will register ground when the vehicle's PARKING
BRAKE is engaged.
NOTE: The following connection is required for Manual Transmission
Mode.
2
PURPLE
Locate the vehicle's dome light or door pin switch wire.
Verification: This wire will register positive voltage (POS) when the door is
opened and the interior light is on. This wire will
register ground or "0" Volts when the door is closed and the interior light is
off.
Connect the PURPLE wire to the vehicle's positive door input wire(s).
NOTE: Certain vehicles may require multiple connections. Refer to vehicle
application guide.
ca5152. 2011 Audiovox Electronics Corporation. All rights reserved.
LT GREEN/BLACK
LT BLUE
GREEN/WHITE
BLACK/YELLOW
FACTORY DISARM / PULSE BEFORE START ( - )
FACTORY ARM / PULSE AFTER START ( - )
PULSE AFTER SHUTDOWN ( - )
PULSE DURING CRANK ( - )
PARKING BRAKE INPUT ( - )
DOOR TRIGGER INPUT ( + )
5
