3D RF Emitter

The 3D RF emitter is designed to be placed near the projector and aimed at the
screen. It receives the 3D sync signal from the projector and emits RF pulses that
reach the 3D glasses RF receiver.
The emitter does not require a battery.
Note: The emitter emits sync pulses only when the projector displays 3D content.

3D Glasses

When displaying 3D content, the projector alternately displays one image for the left
eye and one image for the right eye in rapid succession. The 3D glasses turn on and off
their lenses, in sync with the projector, so that each eye receives exactly the image
intended for it. The sync is possible thanks to the RF pulses received by the glasses
from the 3D RF emitter.
❶
❷
❸
❹
❺

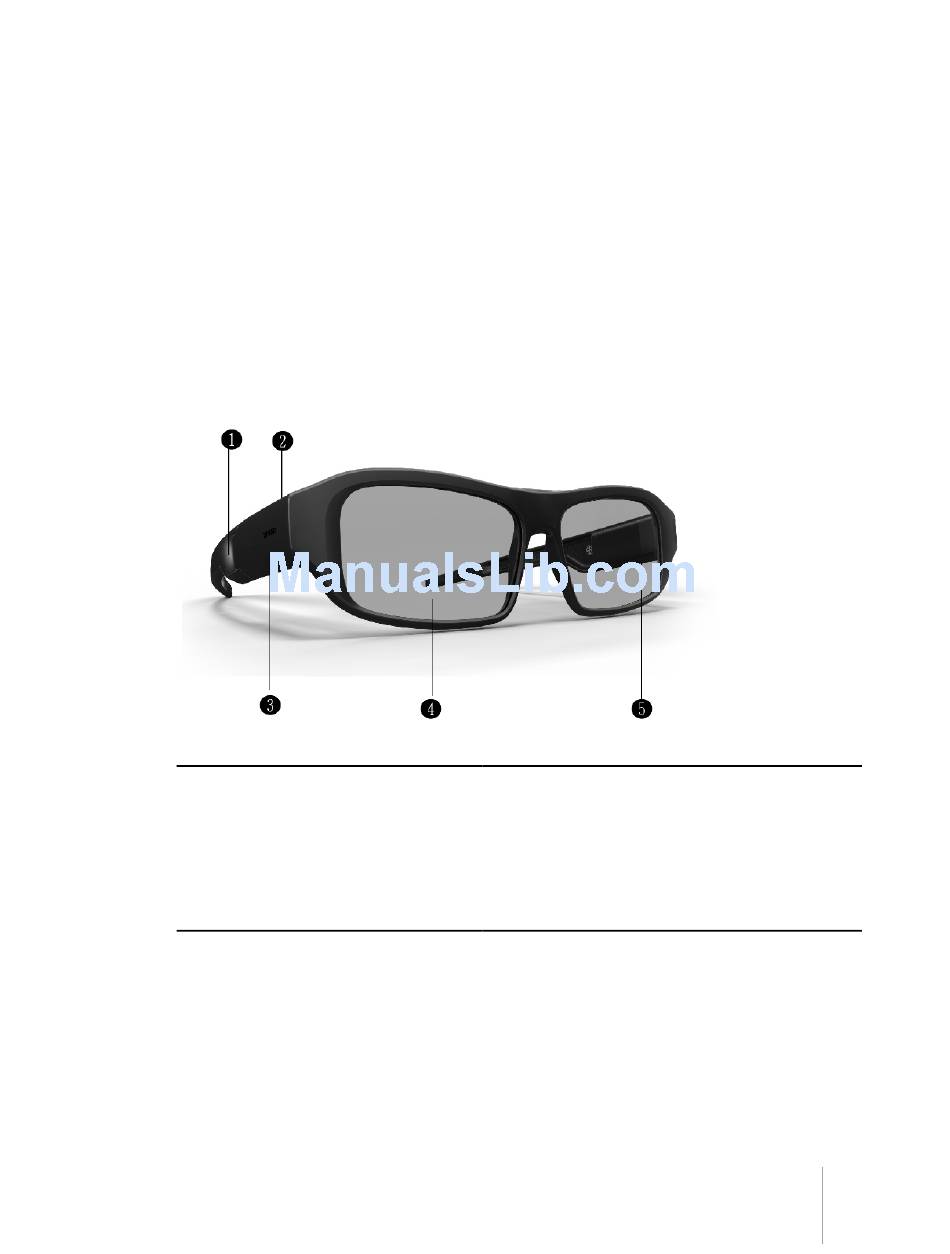

2 Overview
Button
LED
Micro USB port
Lens
RF Receiver
Button for ON and OFF
Indicating glasses status
To charge the glasses
Liquid crystal shutter
Receive RF signals from 3D Emitter
SUPERLUMIS 13
