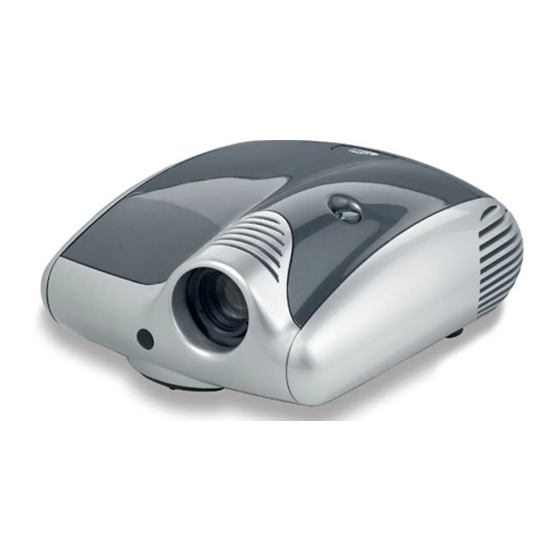

Summary of Contents for Sim2 Grand Cinema C3X

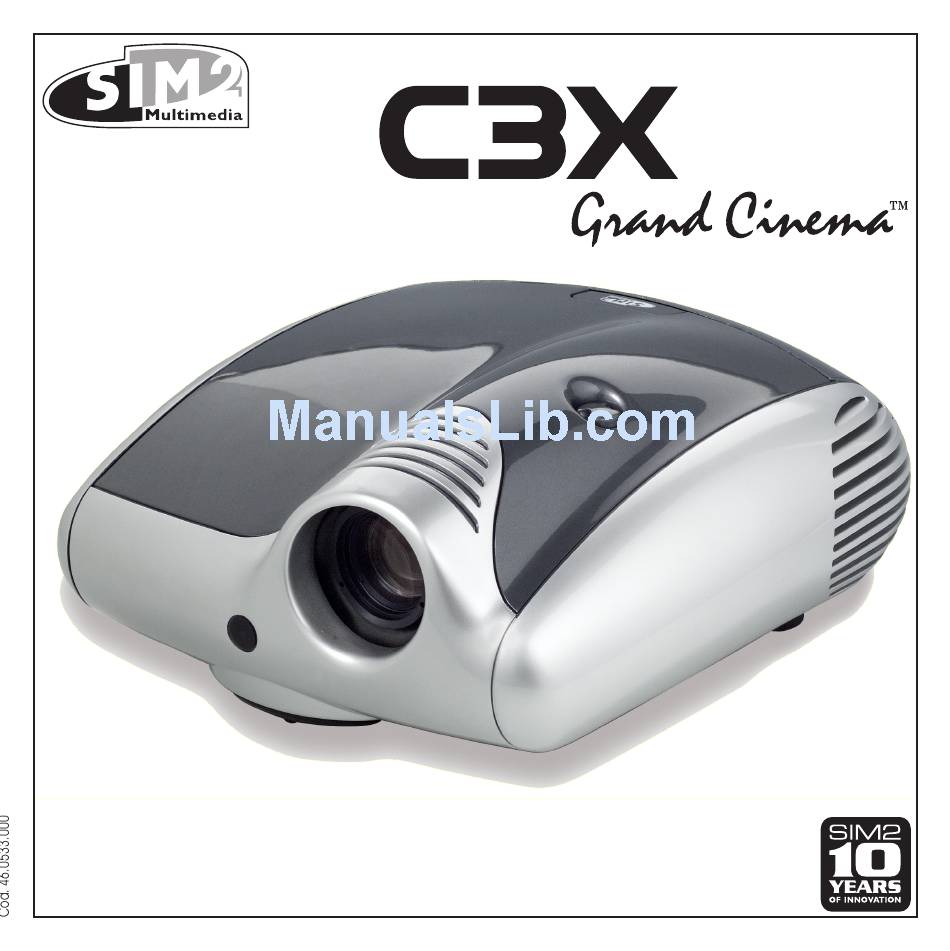

- Page 1 User and Installation Manual C3X - C3X LITE...
- Page 2 1 TELECOMANDO E TASTIERA DI CONTROLLO Turn on the back light Display the source Selection Menu Activates the On Screen Display Menu Navigates menu pages Freezes a moving picture Active le réglage du zoom de l’objectif. Selects focus lens adjustement Select Auto Adjust (automatic optimisation of the displayed image) BACK LIGHT...
-
Page 3: Table Of Contents
On Screen Display; alternatively, the unit can be controlled by from a home automation system through the serial port. SIM2 carries out comprehensive functional testing in order to gua- rantee the maximum product quality. For this reason, when you start using the product lamp operating hours may already be at between 30 and 60. -
Page 4: Important Safety Instruction
1. When your electrical or electronic equipment is no longer useful to you, “take it back” to your local or regional waste collection administration for recycling. 2. In some cases, your “end of life” product may be “traded in” for credit towards the purchase of new SIM2 Multimedia equipment. Call SIM2 Multimedia to se if this program is available in your area. - Page 5 PROjectOR 1 Projection lens. 2 Aesthetic embrasures 3 Remote control front / IR sensor 4 Cooling air inlet vents Adjustable levelling feet 6 Adjustable carry-handle 7 Lamp Box 8 Fused power socket 9 Main power switch 10 Main function keys • Read this manual carefully and keep it in a safe place for future consultation. This manual contains important information on how to install and use this equipment correctly. Before using the equipment, read the safety prescriptions and instructions carefully. Keep the manual for future consultation.
- Page 6 • Prevent the unit from overheating. In order to allow the Projector cooling, keep at least 40 cm ( 16”) of space between the rear of the projector and the nearest wall or obstruction. Do not place the devices near heat sources such as heaters, radiators or other devices that generate heat (including amplifiers).
-
Page 7: Unpacking
The carton should contain the following: - the projector - the remote control - four 1.5V AAA batteries (for remote control) - three power cables for the projector (EU, UK, USA) - the user and installation manual. If any accessories are missing, contact your Dealer as soon as possible (Fig. -
Page 8: Installation
If you use a bracket different to the one supplied by SIM2 Multimedia, you must make sure that the projector is at least 65 mm (2-9/16 inch) from the ceiling and that the bracket is not obstructing the air vents on the lid and on the bottom of the projector. - Page 9 S RG OT E AU DIO The Orientation adjustment in the Set up menu will allow the projector to be used for desktop front, ceiling front, desktop rear and ceiling rear installations (Fig. 9). +1 2V US B CO NT...
-
Page 10: Switching On And Off The Projector
I O O E S C I N P Power Plug Upon switch on (in position I) the projector will initialise (red and green LEDs on). Followed by stand-by mode (red LED on) (Fig. 13). E S C I N P... -
Page 11: Connection
SWITCHING OFF AND RETURNING TO STAND-BY By remote control: press By keyboard: press key When switching off, the projector goes in to stand-by memo- rising the input selection at the time of switch-off. Status Initialisation Standby Cooling Overtemperature Fan Error... - Page 12 C3X - CONNECTION + 1 2 U S B 1 . 1 Television receiver DVD Player Videorecorder camcorder Game console RGB - YPrPb GRAPHICS RGB R / P S-VIDEO C / Y C O N T R O B / P L ( R VIDEO S 2 3...
-
Page 13: Composite Video
COMPOSITE VIDEO This input should be connected to a Composite Video signal (CVBS) by means of a cable with an RCA connector. The connector on the source is usually yellow and is frequently labelled VIDEO. Although other types of signals are preferable (since they allow better picture quality), Composite Video signal is still very com- mon, and nearly all television receivers, video-recorders, DVD players, camcorders, etc., are equipped with it. -
Page 14: Motorised Projection Screen Output
The remote control sends commands to the projector via infrared signals. It is possible to control the projector by pointing the remote control at the screen; the sensor at the front of the projector will pick up the reflected infrared commands. (Fig. 19). RS232 INTERFACE CONNECTOR... -
Page 15: On Screen Menu
9 ON SCREEN MENU All system functions can be activated from the keypad or re- mote control with the aid of a practical and comprehensive system of on screen menus. INPUTS The input selection menu (Inputs) is called by pressing 0 on the remote control and, when no other menu is displayed, using the ▲... - Page 16 Aspect Colour Temperature Gamma Correction Overscan Position Y/C Delay Other adjustments (marked by the < symbol) provide subme- nus, which appear as a superimposed window in which the selection is made with the ◀ e ▶ keys (Fig. -a). These submenus are accessed by pressing the ◀ key, while exit and return to the upper level occurs by pressing MENU+/-.
-
Page 17: Cinema Mode
CINEMA MODE In AUTO the deinterlacer recognises if the video signal source is a movie film (obtained from a Telecine device with 3: or : pull-down) and applies a deinterlace algorithm optimised for this type of signal. If the video signal source is not identified as a film, or if you select NO the deinterlacer applies a Motion compensated algorithm optimised for video camera signals. -
Page 18: Gamma Correction
(blacks, dark, medium, light grey, whites) in the projected image. The projector is equipped with several gamma functions, al- lowing the best display of any image in relation to the video source type, ambient light conditions, and the personal pref- erences of the viewer. - Page 19 and image positioning, calling the automatic control procedure from the AUTO button on the remote control or keypad. When this procedure is called it is helpful to have a white or light coloured background on the screen in the current picture. FREQUENCY/PHASE These adjustments, available for progressive signals and for signals from Pc, ensure correspondence between the number...
- Page 20 AU DIO HORIZONTAL/VERTICAL KEYSTONE To obtain maximum quality of the projected image, we re- commend the installation of the projector on a level platform parallel and central to the screen. Adjust the feet underneath to obtain a level position, lining up the base of the projected image to the base of the projection screen (Fig.
- Page 21 The main window shows all the inputs available on the Projector. If one or more inputs are not utilized, it is often helpful to blank them from the input list (accessed with the 0 key).
-
Page 22: Insert Text
a specific input. You can use up to 1 alphanumeric letters to name the source (for more details check the “Insert text” section). INSERT TEXT You will be able to insert text easily and rapidly by accessing the text insertion menu (fig. 31). The text insertion mode remains the same if text is being inserted for the first time or if a previously inserted name is being edi- ted. - Page 23 Gamma correction The following click of the key (F1 or F) allows to choose between the different gamma curves available. SOURCE INFORMATION When active (YES) each source change will show the information related to the signal. If not active (NO) there will be no information on the selected source..
- Page 24 Memory was previously recalled will be automatically applied. INFO Displays the current status of the projector and information concerning the projected video/graphic signal. Fig.34 This function is displayed on pressing (or, in the absence of the On Screen Display, the ▶...
-
Page 25: Quick Menus
QUICK MENUS The quick menus provide access to the main adjustments that affect image quality, without calling the main On Screen menus. BRIGHTNESS, cONTRAST, cOLOUR, TINT, SHARPNESS and FILTER adjustments appear at the bottom of the screen one after the other when the ▼... -
Page 26: Cleaning And Maintenance
(from stand-by). This will allow the lamp to cool down sufficiently. • If the lamp doesn’t come on – even though the projector has had sufficient time to cool down – seek technical assistance from your nearest Dealer. -
Page 27: Optional Accessories 7
CAUTION: for ceiling installation, by means of suspension bracket, carefully follow the instructions and safety instructions recom- mended by the Manufacturer in the bracket’s literature. Rivolgetevi sempre al vostro centro di assistenza per sostituire l’obiettivo. Utilizzate solo accessori originali o approvati da SIM2 Multimedia. -
Page 28: A - Technical Specifications 8
1 active with 16:9 aspect ratio selected) - 1 Optical S/PDIF audio output Toslink con- nector GENERAL PROJECTOR Power supply cable: Supply: Consumption: Fuse: Dimensions of projector: Weight of projector: Operation temperature: Transportation temp.: Storage temperature: Humidity: Safety: Transportability: Compatibility: Transportation: / 1 kΩ... - Page 29 B ON SCREEN MENU LAYOUT Picture Video • S-Video [NTSC] YCrCb15kHz RGBS 15kHz Brightness Brightness Contrast Contrast Color Color Tint Sharpness Sharpness Filter Filter Cinema Mode Cinema Mode Video Type Video Type Noise reduction Noise reduction Not active Flesh tone correction Image Video •...
- Page 30 Screen control Setup Orientation Keystone Lens Lamp Power Power ON Test patterns Auto Initial settings Stand-by Menu Language Source list F1/F2 keys Source info OSD background OSD Position OSD Timeout 1 VIDEO 2 S-VIDEO 3 COMPONENT / RGBS 4 GRAPHICS RGB HDMI Memories Memories...
- Page 31 C DIMENSIONS 285.3 280.6 41.5 72.6 431.4...
- Page 32 SIM Multimedia S.p.a. • Viale Lino Zanussi, 11 • 33170 Pordenone - ITALY Phone +39.434.383.53-56 • Fax +39.434.38360-61 www.sim.com • e-mail: info@sim.it SIM USA Inc. • 10108 USA Today Way • 3305 Miramar FL - USA Phone +1.954.44999 • Fax +1.954.44998 www.simusa.com •...
