Assembly - Freemotion Treadmill User Manual

A
SSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly can be completed using a 3/8" hex
key, a 7/32" hex key, and a Phillips screwdriver.

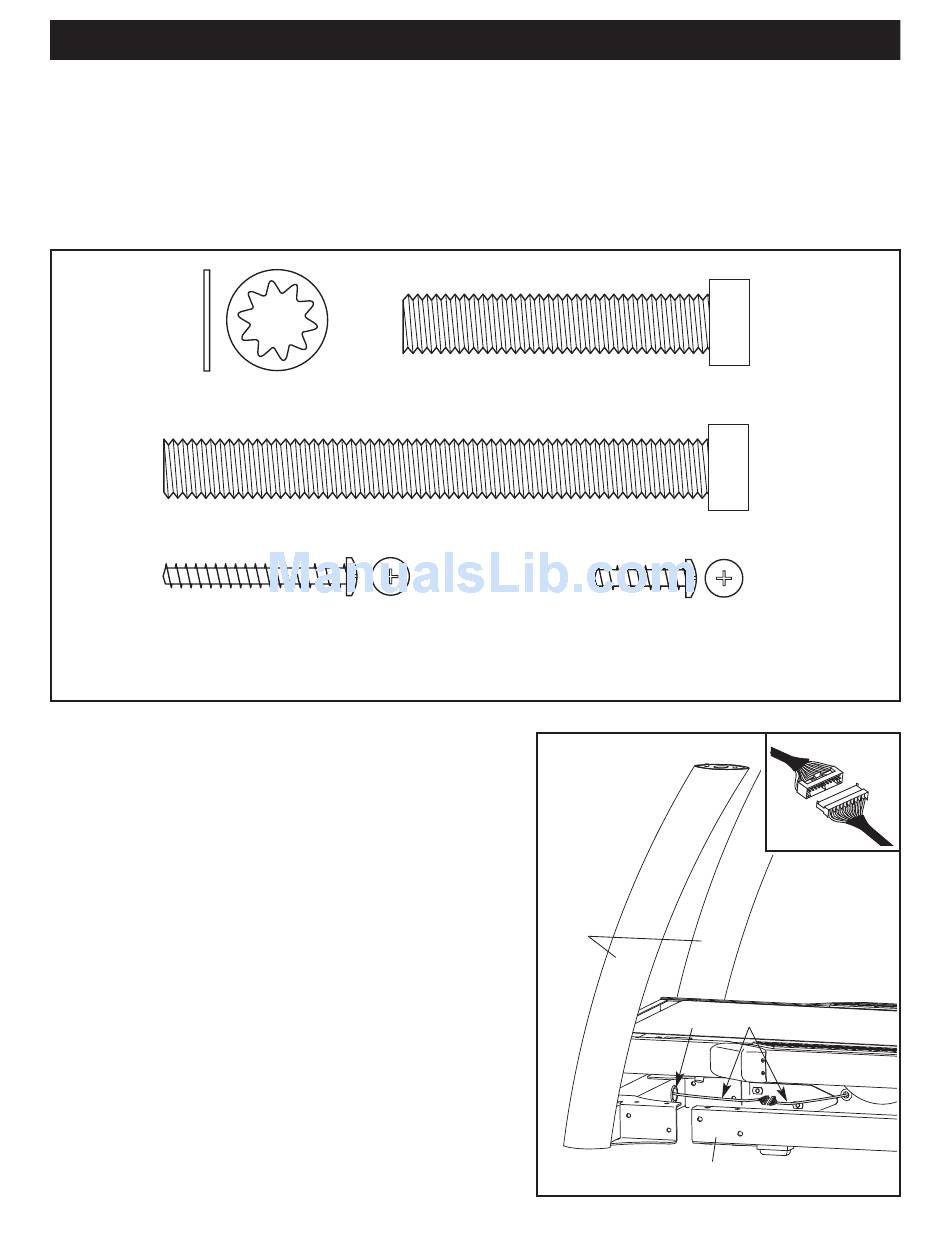

For help identifying assembly hardware, see the drawings below. Note: If a part is not found in the part bags,
check to see if the part has been preattached. To avoid damaging plastic parts, do not use power tools for

assembly.

1/2" Star
Washer (124)–4
Console Plate Screw
*These Screws are included only with the Workout TV console treadmill.
1. Place the Uprights (93) near the front of the Base Frame
(56) as shown.
Connect the indicated wires on the right side of the tread-
mill. See the inset drawing. The connectors should
slide together easily and snap into place. If they do
not, turn one connector and try again. IF THE CONNEC-
TORS ARE NOT INSERTED PROPERLY, THE CON-
SOLE MAY BE DAMAGED WHEN THE POWER IS
TURNED ON.
Insert the excess wire into the indicated hole in the
Uprights (93).
Top Base Bolt (96)–4
(94)–4*
Side Base Bolt (95)–4
Display Mounting Screw
(114)–5*
1
LEFT
93
7
RIGHT
Hole Wires
56
