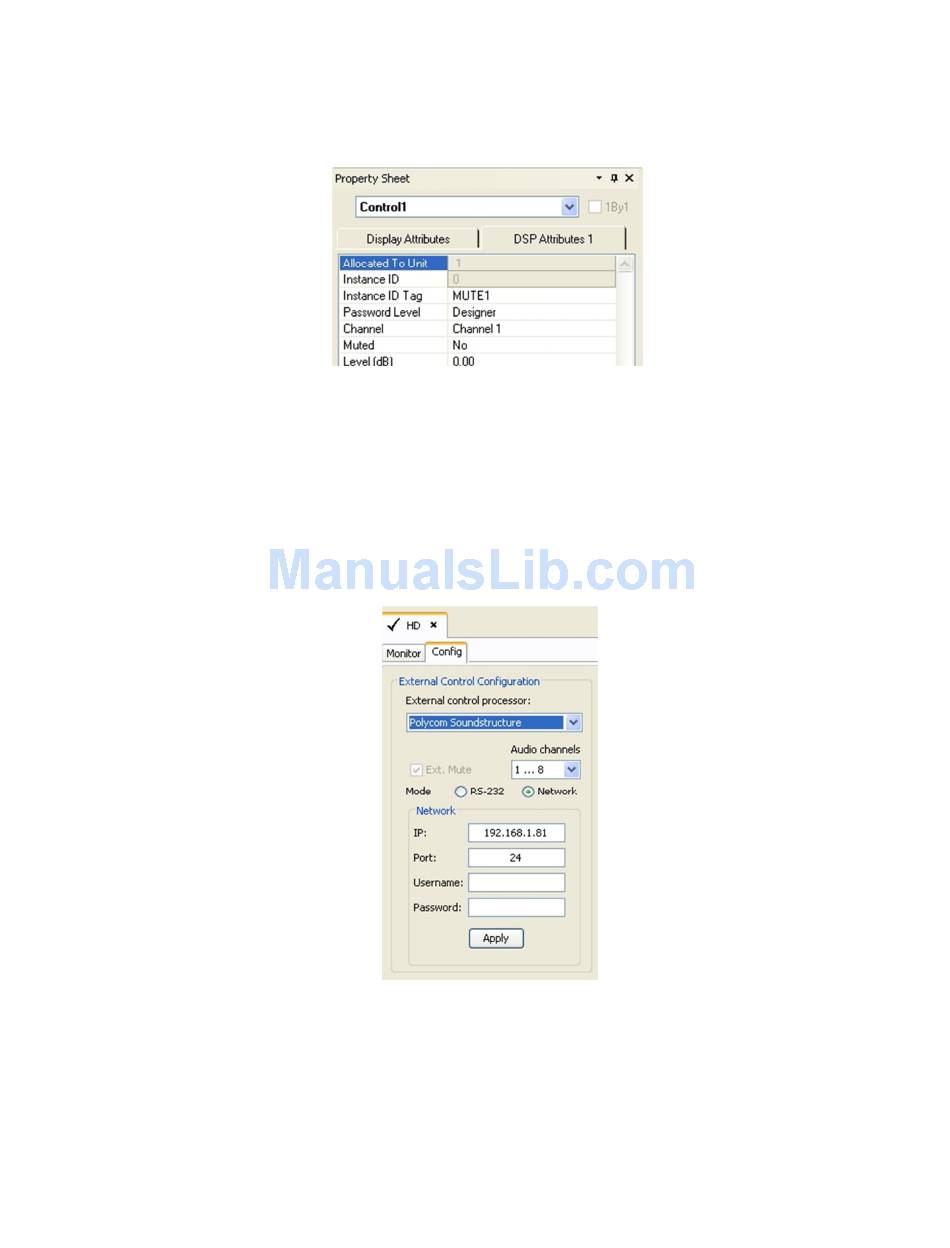

So for example, if you set the 'Audio channels' for the microphones to 1-8 in the Control Panel, then
the Base Station will use the instance ID tag of "MUTE1", and control the first 8 mutes in that fader
block.
Note: Instance ID tags are case sensitive and must be entered correctly in order to function
properly. A "level block" must be used as the method of muting.
Polycom SoundStructure
When using the Base Station along with a Polycom SoundStructure, you must select the
corresponding DSP product line from the "Serial Control Processor" menu in the Revolabs HD
Control Panel software. You must also set the RS-232 or Network settings of the Base Station to
match the communication settings of the Polycom SoundStructure as well as select the 'Audio
Channels' of the microphones that the Base Station is to simulate.(i.e. 1-8, 9-16, etc.)
Each Base station will control the mutes of each individual microphone channel, within the DSP
programming, using that channel's name. The name structure is as follows:
Channels 1-8
Channels 9-16
Channels 17-24
Channels 25-32
Channels 33-40
Revo 1 - Revo 8
Revo 9 - Revo 16
Revo 17 - Revo 24
Revo 25 - Revo 32
Revo 33 – Revo 40 (EU & CN Versions Only)
