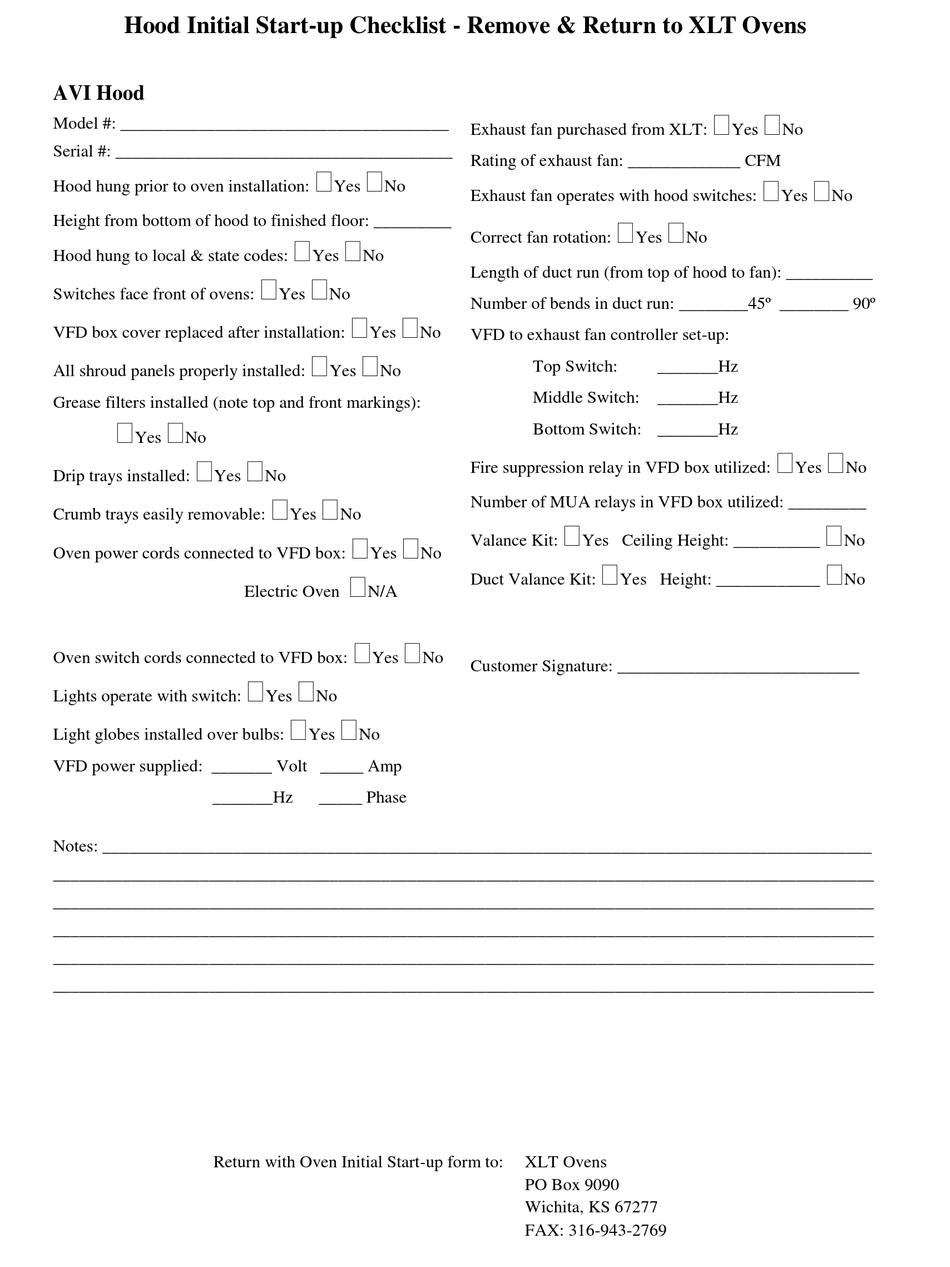

Hood Initial Start-up Checklist - Remove & Return to XLT Ovens
AVI Hood
Model #: ______________________________________
Serial #: _______________________________________
Hood hung prior to oven installation:
Height from bottom of hood to finished floor: _________
Hood hung to local & state codes:
Switches face front of ovens:
VFD box cover replaced after installation:
All shroud panels properly installed:
Grease filters installed (note top and front markings):
 
Yes No

Drip trays installed: Yes
Crumb trays easily removable:
Oven power cords connected to VFD box:
Oven switch cords connected to VFD box:
Lights operate with switch:
Light globes installed over bulbs:
VFD power supplied: _______ Volt _____ Amp
_______Hz
Notes: _________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
Return with Oven Initial Start-up form to:
 
Yes No
 
Yes No
 
Yes No
 
Yes No
 
Yes No

No
 
Yes No
 
Yes No

Electric Oven N/A
 
Yes
 
Yes No
 
Yes No
_____ Phase
Exhaust fan purchased from XLT:
Rating of exhaust fan: _____________ CFM
Exhaust fan operates with hood switches:
Correct fan rotation:
Length of duct run (from top of hood to fan): __________
Number of bends in duct run: ________45º ________ 90º
VFD to exhaust fan controller set-up:
Top Switch:
Middle Switch: _______Hz
Bottom Switch: _______Hz
Fire suppression relay in VFD box utilized:
Number of MUA relays in VFD box utilized: _________

Valance Kit: Yes Ceiling Height: __________
Duct Valance Kit:
No
Customer Signature: ____________________________
XLT Ovens
PO Box 9090
Wichita, KS 67277
FAX: 316-943-2769
 
