Summary of Contents for SecurityMan DigiAir-SD

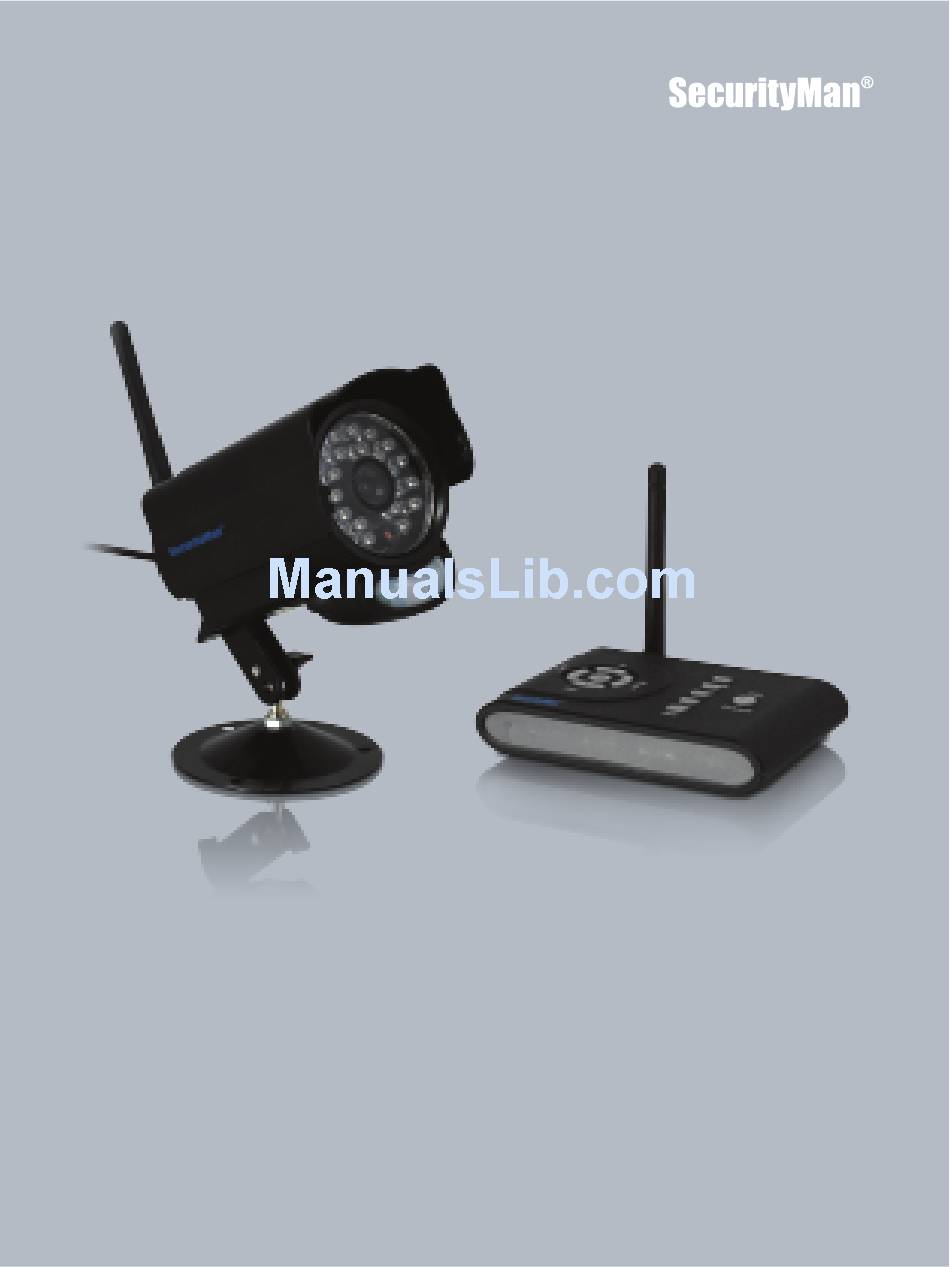

- Page 1 DigiAir-SD User’s Manual Digital Outdoor Wireless Camera System Kit with PIR motion, 2-way Audio, Night Vision and SD Digital Video Recorder...
-
Page 2: Fcc Information
Limitation of Liability The liability of SecurityMan Inc, arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall SecurityMan be liable for costs of procurement of substitute products or services, or for any lost profits, or for any consequential, incidental, direct or indirect damages, however caused and on any theory of liability, arising from this warranty and sale. -
Page 3: Table Of Contents
Table of Content Introduction Important Restrictions Accessories Specification Features Product Basics Camera (SM-60DT) Receiver (SM-60DR) & Buttons Function Quick Start User’s Interface Menu Setup System Setting Date/Time Setting Video System Camera Rotation SD Format Default Setting Version Record Setting Video Setting Motion Record Time Motion recording active in QUAD channel display view Motion recording active in Single channel display view... -
Page 4: Introduction
Introduction Thank you for choosing the DigiAir-SD Digital Outdoor Wireless Camera System Kit. DigiAir-SD records and digitizes streaming video on to a standard SD card (up to 32GB capacity). It implements MPEG4 video compression format for smooth recording or JPEG picture recording. DigiAir-SD features 2-way audio communication between camera and receiver, scheduled, manual and motion detect recording with time/date stamp, which makes the DigiAir-SD an ideal choice for your recording needs. - Page 5 ● DO NOT use this product to carry out any illegal activities such as sneak preview, and etc. SecurityMan shall not be responsible for any consequences of illegal conducts made by users. ● DO NOT put the plastic package bags in reach of children or babies.
- Page 6 ● DO NOT put the camera in wet places where water might splash or where rainwater and mist might erode (Except weather-proof series). It might cause fire, shock, short circuit, etc. ● DO NOT disassemble or repair the camera, receiver or other relevant peripheral equipment s by yourselves.
- Page 7 ● DO NOT touch, shake or hold the antenna. ouching, shaking or holing the antenna might influence the receiving of electromagnetic wave, and thereby influence the receiving effect. ● DO NOT use the camera in complex environment, The obstruction of stumbling block will affect the electromagnetic wave and influence the receiving range.
-
Page 8: Accessories
Accessories Receiver/Recorder*1 Wireless Camera*1 Antenna*2 Adapter*2 AV cable*1 Bracket*1 User’s Manual Screws*3 & accessories... -
Page 9: Specification
Specification Frequency 18M 2400-2483.5MHz (CH1/CH2/CH3/CH4/Loop) Modulation GFSK Antenna Omni 3dBi Transmission Distance Up to 330ft (100m) clear line of sight; up to 130ft indoor Operating Temperature -10°C to 60°C (14°F to140°F) Operating Humidity 20% - 80% RH Video System NTSC or PAL Video Resolution VGA 640x 480, QVGA 330x240/ZOOM... -
Page 10: Features
• Digital signal, worry free of interception by neighbor with wireless device(s) • Upgradable by adding 3 more digital wireless cameras (only one active channel for recording) or integrate up to 3 more DigiAir-SD kits (ch2/ch3/ch4) • Camera features built-in infrared LEDs for night vision up to 50ft (B/W) •... -
Page 11: Product Basics
Product Basics Camera (SM-60DT) Sun Visor Power Socket Receiver (SM-60DR) & Buttons Function Audio/Video Output Power Socket... -
Page 12: Quick Start
AV Output to Input TV/DVR/VCR 4. Plug one end of the AC adapter to DigiAir-SD receiver (DC in) and the other end into an electrical outlet, as shown below. receiver 5. Insert an SD card (not included) into the SD card slot located on the rear of the receiver and then... - Page 13 6. A window boot up screen will display as shown below, and then to the main user’s interface. 7. Enable the intercom feature by pressing the Talk button. Sound is transferred from the receiver to the camera by pressing and holding the Talk button and speaking into the Mic (located on the front of the receiver);...
-
Page 14: User's Interface
a) In Video Mode, AVI video recording will start to record and the RECORD indicator located in front of the receiver will light up to indicate the receiver is in record mode and the • REC will appear in red at the top center of the screen. The RECORD indicator light will turn off after motion finished recording and resume motion video stand-by mode and the NEW indicator of the receiver will light up. -
Page 15: File Name
Signal Intensity The Signal Intensity shows the signal strength between the transmitter and the receiver. The more bars, the better the transmission signal image. Resolution Select between VGA and QVGA resolution quality to display and record videos and take snapshots. Higher resolution VGA will display and record up to 11 frames per second and the lower resolution QVGA will display and record up to 30 frames per second. -
Page 16: Menu Setup
SD Card icon Once the SD card (storage media) is inserted into the SD slot, the SD icon and Free Space (in MB) will appear on the screen as shown in the above illustration. Both the SD icon and Record symbol will flash on the screen to indicate that the storage media is full. The screen will not display the SD icon or Free Space, if the SD card is not inserted correctly or cannot be identified by the recorder (support up to 32GB of memory). -
Page 17: System Setting
System Setting From the Menu Setup window, select System Setting as illustrated below. The System Setting consists of Date/Time, Video System, Camera Rotation, SD Format, Default Setting, and Version. Camera Rotation SD Format Default Setting Date/Time Setting In the System Setting highlight and press the OK button on Date/Time to setup the current date and time as shown below. -
Page 18: Camera Rotation
Camera Rotation In the System Setting highlight and press the OK button on the Camera Rotation as shown below. Auto Sequence Sequential Setting The Auto Sequence is use to setup the camera sequential rotation period between cameras. The default Auto Sequence is set to OFF. To change the value, press the UP or DOWN buttons to toggle between OFF, 5 sec, 10 sec, 15 sec, 25 sec, or 30 sec. -
Page 19: Version
Default Setting A message “Restore default, are you sure?” will appear in red color, press the UP or DOWN buttons to select YES or NO (default) to proceed with system restore. If YES is selected the recorder will default all the setting back to the original factory default setting, otherwise press the MENU at any time to exit out of Default without restoring factory default setting. -
Page 20: Video Setting
Video Setting In the Record Setting highlight and press the OK button on Video Setting as shown below. Video Setting Press the UP and DOWN button to make a selection between VGA (640x480 display resolution, default), QVGA (display with 320×240 display resolution) and ZOOM (camera(s) image will be zoomed in). -
Page 21: Motion Recording Active In Single Channel Display View
Note: In QUAD screen live display view; Manual recording and Schedule recording is not operable, please change the live screen display to single full screen for manual recording and Schedule recording. Under QUAD display view; only the OK, QUAD, and MENU buttons operates. -
Page 22: Overwrite
When the Date/Time Stamp is enabled, the system will display the date and time to real-time monitoring and the recorded video/photo files. Press the UP and DOWN button to make a selection between ON (default) or OFF, then press OK to save the setting and exit Date/Time Stamp or press the MENU button to exit without saving. -
Page 23: Camera Pairing
Camera Pairing From the Menu Setup window, select Camera Pairing as illustrated below. Camera Pairing In Camera Pairing window, press the UP and DOWN button to select the desired camera to pair, and then press the OK button to enable pairing. When pairing is enabled, the screen will go black and the indicator message “Please press Pair Key on Camera side”... -
Page 24: Deleting File/Folder
In the playback directory files (VIDEO or PICTURE), press the UP and DOWN button to browse through the dated files and then press the OK button to start playback. Select the folder icon and press OK button at any time to step back to the previous directory. During playback, press the LEFT button to REW (rewind) at 1X, 2X, 4X and 8X the normal playback speed and press the RIGHT button to FF (fast forward) at 2X, 4X, 8X, 16X, 32X and 64X the normal playback speed. -
Page 25: Pc Playback
PC Playback Since the DigiAir-SD recorder stored recorded data into an SD (Secure Digital) memory card, the card can be ejected from the recorder and plug into a media card reader on a PC to read, playback, delete file(s), and file backup (copy/paste) as shown below. Some computers come with built-in card reader and others may not but third party card reader can always be purchase for integration.
