Summary of Contents for SecurityMan 76001C

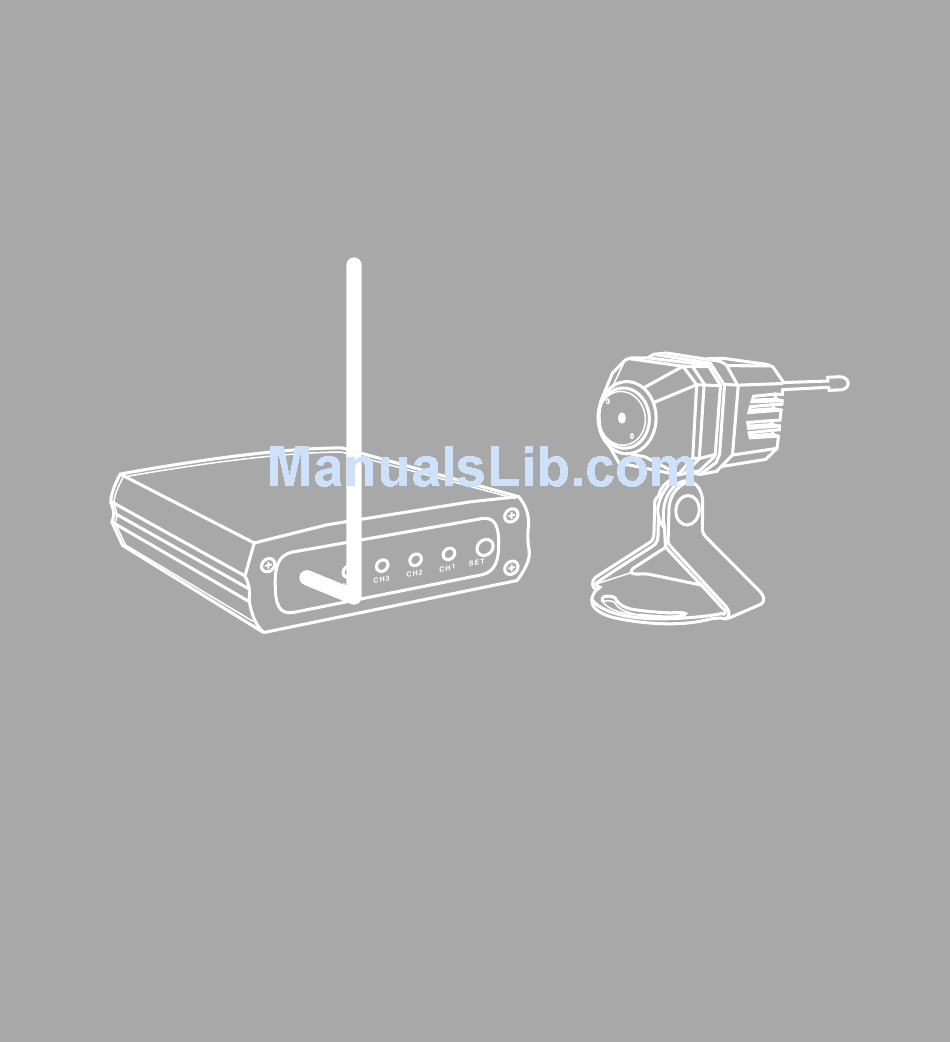

- Page 1 SecurityMan ® Mini-AirWatch 2.4GHz Wireless Color Camera Kit User Guide...
- Page 2 Copyright Notice This manual is furnished under license and may be used or copied only in accordance with the terms of such license. Except as permitted by such license, no part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or any means, electronic, mechanical, recording, or otherwise, including translation to another language or format, without the prior written permission of SecurityMan.
- Page 3 Warranty SecurityMan warrants that this product will be free from defects in materials and workmanship for period of time specified on the product packaging. This limited warranty shall commence from the date of purchase. SecurityMan Products warranty is not transferable and is limited to the original purchaser.
- Page 4 Notice: 2.4Ghz wireless camera works at ISM band. It may cause interferences with other wireless equipment that operates at the same band. Please turn off one of the equipment to eliminate the interference. Product Assurance 2.4Ghz wireless camera will emit electromagnetic wave, just like other wire- less products.
- Page 5 Conditions Please read the following messages to make sure whether your working envi- ronment is suitable. • Ensure there is enough space around the receiver for ventilation. • The temperature should be kept between –20˚C and 50˚C (-4F – 122˚F). The relative humidity should remain from 20% to 80%.
- Page 6 Warning: • In order to avoid inflammation or electric shock, this machine should be kept away from exposure to rain or moist, and it shall not be put in or near bath- rooms, washing pools, washhouses, moist basements, or swimming pools. •...
- Page 7 DO NOT put the package plastic bags in reach of children or babies. *It might cause asphyxia if children or babies putting the bags into their mouths. DO NOT plug the AC adapter into the out- let in improper situation. *Plugging AC adapter with wet hand might cause electric shock.
- Page 8 DO NOT disassemble or repair the cam- era, the receiver and other relevant periph- eral equipment. *Improper disassembly might cause damages to the product or the peripheral equipment. DO NOT use the receiver on the surface of thermo labile material. *Please embed thermal insulating material when using on the surface of the thermo labile material.
- Page 9 DO NOT let several cameras with same frequency work at the same time. *The overlap of the electromagnetic wave sig- nal of the same frequency might cause severe interferences and unable to receive signals. Please adjust the brightness on TV or on monitor to achieve optimum efficiency.
-
Page 10: Table Of Contents
Contents Introduction Package Contents Technical Support Product Basics Installation Diagram Installation A) Setting up the Receiver B) Setting up the Receiver with TV/Monitor C) Setting up the Camera D) Setting up the Receiver to match camera’s frequency E) Adjust the camera’s focal length Specification Troubleshooting... -
Page 11: Introduction
Introduction Thank you for purchasing Mini-AirWatch Wireless Camera Kit. It consists of a Color Video Camera with built-in 2.4GHz Video Transmitter, and a Video Receiver unit which you connect to a TV anywhere in your home (up to 100ft. away from the camera). The Camera converts the video and audio signals into radio signals and transmits them to the Video Receiver. -
Page 12: Product Basics
Product Basics Camera Camera Back ZT-809T CMOS DC8V 2.4GHz NTSC Camera Frequency Power Jack Receiver Antenna LED channel Indicator Channel Switch Adjustable lens Antenna Bracket Power On/Off Switch Power Jack DC 12V DC12V POWER Audio Output Video Output Holes for Focus Adjustment Tool Focus Adjustment Tool AUDIO... -
Page 13: Installation Diagram
Battery Clip To Camera Power Jack Installation Diagram 9V battery or 8V AC adapter WARNING: When using power adapter, make sure the voltage indica- tions on the adapters are compatible to the devices to avoid potential damages for incorrect usage of power. 9V Battery Connector (battery included) -
Page 14: Installation
Installation A) Setting up the Receiver Connect the antenna to the receiver. B) Setting up the Receiver with TV/Monitor Connect one end of the A/V cable to the A/V out jacks of the Receiver. Connect the other end to your TV/Monitor A/V jacks. Plug the Receiver’s Power Supply (12V DC Adapter) into any wall out- let and plug its jack into the Receiver. -
Page 15: C) Setting Up The Camera
C) Setting up the Camera Place the camera at desired location. Plug the power adapter or battery clip jack into the power jack at the back of the camera. Plug the power adapter to any DC outlet or plug a 9V battery to the battery clip. -
Page 16: E) Adjust The Camera's Focal Length
E) Adjust the camera’s focal length Adjust the camera’s focal length to make the picture more clear. You can also adjust the TV/Monitor brightness, contrast, color to get the best picture. Adjustable lens Holes for Focus Adjustment Tool Focus Adjustment Tool... -
Page 17: Specification
Specification Specifications of Camera (ZT-809T) Image Sensor CMOS Total Pixels Horizontal Resolution View Angle Minimum Illumination Video Gain Control Frequency Focus Transmission Power Modulation Mode Bandwidth Microphone Power Supply Consumption Current Operation Temperature Storage Temperature Operation Humidity Dimensions (W x L x H) Weight Mounting Bracket... - Page 18 Specifications of Receiver (ZT-707) Receiving Frequency Intermediate Frequency Demodulation Mode Antenna Local Leakage at Input Teminal Receiving Sensitivity Video Output Level Audio Output Level Power Supply Consumption Current Operating Temperature Storage Temperature Operating Humidity Dimensions (WxLxH) Weight *2,400 – 2,483Mhz frequency range: Actual transmission range may vary according to weather, location, interfer- ence &...
-
Page 19: Troubleshooting
Troubleshooting Abnormal Phenomena Possible Reasons/Solutions *Check the camera / receiver connected to power supplies, and power on. *Check if the channel of receiver is corresponding to camera; *Check the distance and blocks. *Interfered by other sources; *Check the distance and blocks. *Mismatching system of PAL TV and NTSC cameras or vice versa. - Page 20 www.securitymaninc.com...
