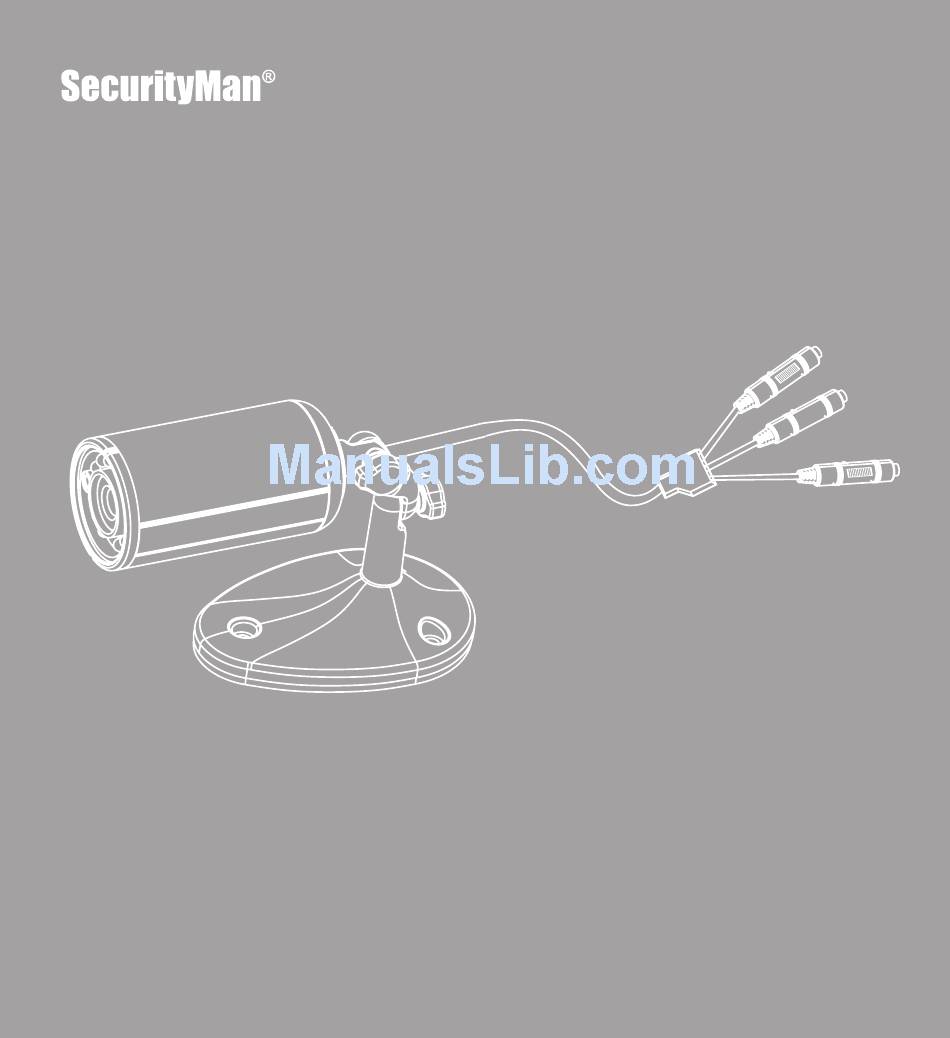

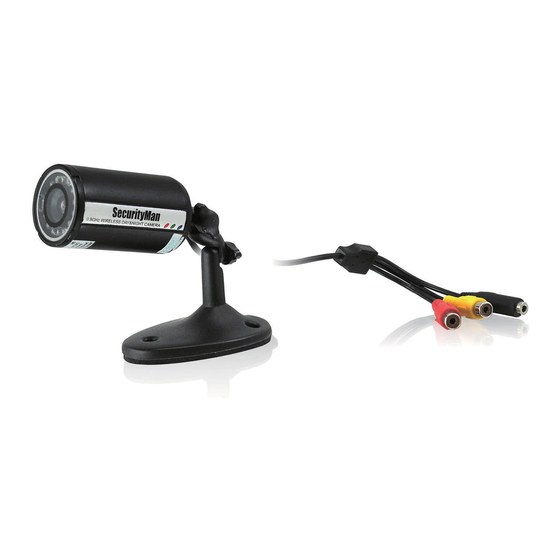

- Page 1 User’s Manual SM-302 Weatherproof Color Camera with Audio & 100 Feet Cable...
- Page 2 Limitation of Liability The liability of SecurityMan arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall SecurityMan be liable for costs of procurement of substitute products or services, or for any lost profits, or for any consequential, incidental, direct or indirect damages, however caused and on any theory of liability, arising from this warranty and sale.
- Page 3 SecurityMan 4601 E. Airport Drive, Ontario, CA91761, USA TEL: 909-230-6668 FAX: 909-230-6889 Email: info@securitymaninc.com Website: http://www.securitymaninc.com Copyright 2010 by SecurityMan v2.0 For Customer Service: 888-977-3777...
- Page 4 Radio waves might potentially influence heart pacemak- ers and lead to respiratory disturbances. DO NOT use this product for any illegal activities. SecurityMan shall not be responsible for any consequences as a result of your illegal use.
-
Page 5: Table Of Contents
CONTENTS Introduction Package Contents Product Features Product Basics Installation & Setup Camera installation Night vision Specifications Troubleshooting... -
Page 6: Introduction
Introduction Thank you for purchasing the SM-302 indoor/outdoor bullet color camera with night vision and audio. It can be input to TV, VCR or DVR for crystal clear sound and picture. Applications for homes and businesses surveillance. Package Contents •... -
Page 7: Product Features
Product Features • D.I.Y. (Do-it-yourself) pack - crystal clear color camera and mounting bracket • Built-in IR LEDs for night vision (up to 23ft, B/W) • Built-in microphone for audio monitoring • Weatherproof camera; applications for outdoor and indoor, wall-mount or ceiling mount •... -
Page 8: Product Basics
Product Basics audio red Audio(red) video(yello Video(Yellow) -
Page 9: Installation Setup
Installation Setup Connect one end of the 100ft power receptacle to the camera’s power input socket, connect the A/C adapter (8VDC 300mA) to the other end of the 100ft cable. Finally, connect the power adapter to an electrical outlet as illustrated below. -
Page 11: Camera Installation
Camera Installation angle. -
Page 12: Night Vision
Night Vision... -
Page 13: Specifications
SPECIFICATIONS Image Sensor 1/4” Color CMOS Video Resolution 510x492 (NTSC) Horizontal Resolution 420 TV Lines Audio Microphone built-in Lens 3.6mm Waterproof IP54 Viewing Angle 45° Connector Interface Audio/Video(RCA) Power Consumption 200mA(IR ON)/80mA(IR OFF) Operating Temperature -10°C~+50°C / +14°F~+122°F Operating Humidity 85%RH Dimensions (WxDxH) 2.4”x1.4”x1.4”... -
Page 14: Troubleshooting
Troubleshooting Problem Adjust the contrast or brightness on the monitor or TV. Check the DC adapter to be connected to the camera and the other end of the adapter is connected to an electrical outlet Check to sure the YELLOW cable is connected to the camera and the other end is connected into a monitor or TV video input.
