SecurityMan SM-823T User Manual

2.4GHz Wireless Outdoor/Indoor
Color Camera
(Night Vision/Audio)

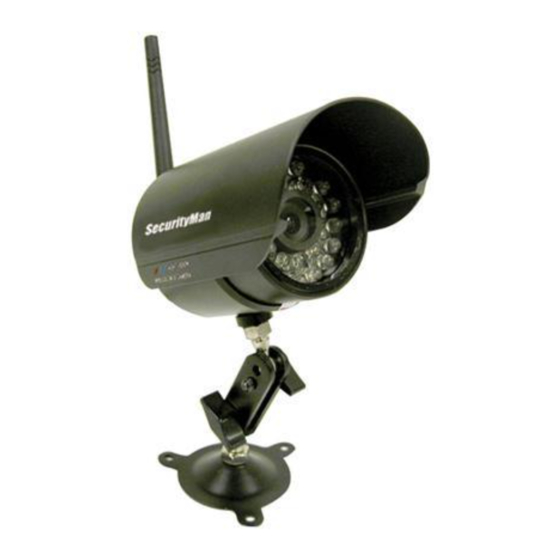

Thank you for purchasing 2.4GHz Wireless Color Camera with night vision and audio.
This is a convenient wireless outdoor/indoor security camera for home or business use.
Package Contents
1 x Wireless outdoor/indoor color camera (SM-823T), antenna and mounting hardware
1 x 12V power AC adapter

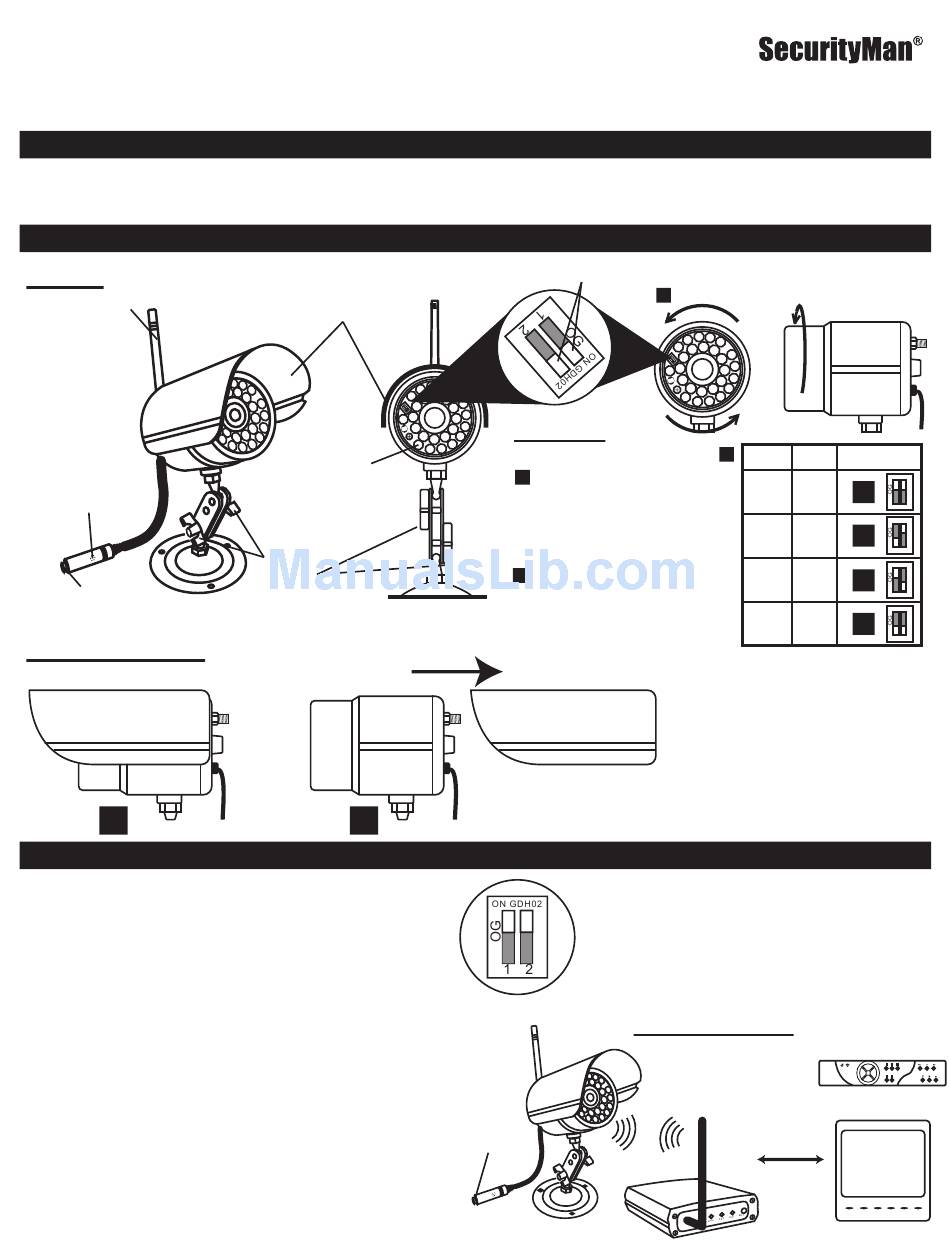

Hardware Basics
Camera
Antenna
Microphone
Built-in
(not weather-
proof, for indoor
use only)
Power Jack
Camera Sunshade
A
Setting up the Camera and Receiver
Setting up the Camera
1) Set the camera to desired Dip-Switch Channel
2) Place the camera at desired location.
3) Plug the power adapter jack into the power jack
4) Plug the power adapter to any DC outlet
5) Mark down the Dip-Switch Channel of each camera.
(The receiver will receive signal from camera's
corresponding Dip-Switch Channel and display in
different channels. For example, Channel 1 on the TV/
Monitor will display the image from Camera 1 only).
Setting up the Receiver to match
camera's frequency
Press the Channel Switch button until the LED channel
indicator light match to the camera's frequency.
*Please refer to the receiver manual for more information
User Guide (SM-823T)
Sunshade
Infrared LEDs
for night vision
Bracket
(with 2 adjustable
viewing angle)
B
Switch
Dip-Switch
1 To adjust the dip-switch
channel for the camera,
unscrew to remove the
front portion of the camera
2
Use a pointed object to
set the dip-switch to
desired channel
Note: The SM-823T camera's Dip-Switch
setting has been preset to Ch1. Please
set it to different channel when multiple
wireless cameras are used.
Camera
Installation Diagram
AC
adapter
unscrew to remove the
front portion of the camera
1
2
1 2
ON ON
OFF ON
ON OFF
OFF OFF
For outdoor use, you should
attach the sunshade to reduce
sun reflection (A). For indoor
use, please detach the sunshade
from the camera to prevent
dark images. (B)
Receiver
A / V Cable
Channel
ON GDH02
1
1 2
ON GDH02
2
1 2
ON GDH02
3
1 2
ON GDH02
4
1 2
VCR/DVR
Or
TV/ Monitor
