INSTALLATION NOTES
Twisted-pair Cable
• Category 5 twisted-pair cable is recommended; Category 3 and 4
are supported at reduced cable lengths.
Fiber Extension Cable
• Be certain that the fiber extension cable is correct for distances
required at the site installation.
Twisted-pair
4 3 2 1
4 3 2 1 C/RI S/RO
Switches Pinning
Config RJ-45
Switches
• Switches on the side of the media converter are used to configure
each media converter according to its location in the Token Ring
network. SET THE SWITCHES ON THE MEDIA CONVERTER
BEFORE CONNECTING TO POWER.
Using the switch setting references on page 3 and pages 4-5:
• Be certain that the media converter mode is set correctly for the
site installation
• Be certain that the media converter active/passive state is set
correctly for the site installation
• Be certain that the media converter IEEE 802.5j compliance
/non-compliance state is set correctly for the site installation
• Be certain that the twisted-pair cable configuration is set
correctly (straight through/RO or crossover/RI) for the site
installation.
Power Connections
• Install the media converter with the power supply provided.
(Output 9 VDC regulated, 550 mA).
• Connect the power supply cable to the media converter BEFORE
connecting the power supply cable to the AC outlet.
• Do NOT connect more than two media converters in series.
2

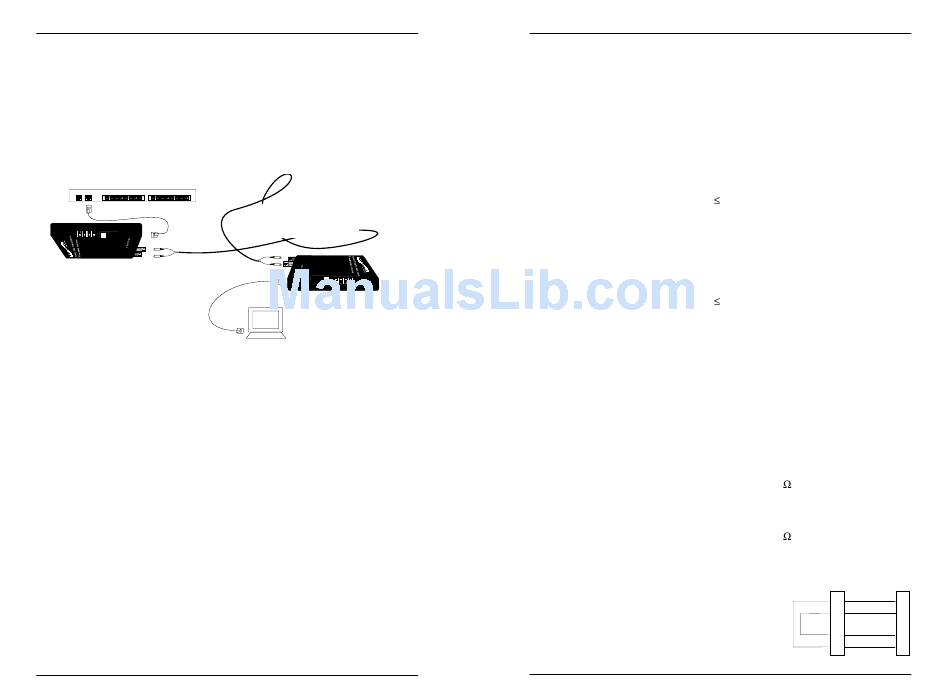

Fiber Network Extension
2 kilometers - multimode
15 kilometers - singlemode
RJ-45 Config
Pinning Switches
S/RO C/RI 1 2 3 4
1 2 3 4
Twisted-pair
TOKEN RING CABLE SPECIFICATIONS
The physical characteristics of the media cable must meet or exceed IEEE 802.5
and 802.5j specifications.
Fiber Cable and Connector Specifications
Cable Characteristics:
MULTIMODE
Fiber Optic Cable Recommended:
Fiber Optic Transmitter Power:
Fiber Optic Receiver Sensitivity:
Wavelength:
Bit error rate:
Maximum Cable Distance:
SINGLEMODE
Fiber Optic Cable Recommended:
Fiber Optic Transmitter Power:
Fiber Optic Receiver Sensitivity:
Wavelength:
Bit error rate:
Maximum Cable Distance:
Connector Characteristics:
ST type connectors (SMA type available upon request)
Twisted Pair Cable and Connector Specifications
Cable Characteristics:
Category 3 wire or better is required; category 5 wire is recommended. Either
shielded twisted pair (STP) or unshielded twisted pair (UTP) can be used. DO
NOT USE FLAT OR SILVER SATIN WIRE.
Category 3:
Gauge
Attenuation
Differential Characteristic Impedance
Category 5:
Gauge
Attenuation
Differential Characteristic Impedance
Maximum Cable Distance:
Connector Characteristics:
Twisted pair connection requires two active
pairs configured as straight through. The two
active pairs in a Token Ring network are pins
4 & 5 and pins 3 & 6. Use only dedicated
wire pairs (such as blue/white & white/blue,
orange/white & white/orange) for the active
pins.
62.5 / 125 µm multimode fiber
min: -19.0 dBm max: -14.0 dBm
min: -32.5 max: -14.0
dBm dBm
850nM
-9
10
2 kilometers
9 µm singlemode fiber
min: -25.0 max: -22.0
dBm dBm
min: -32.5 max: -14.0
dBm dBm
1300nM
-9
10
15 kilometers
24 to 22 AWG
28 dB/1000' @ 10 MHz
100 ±10% @ 10 MHz
24 to 22 AWG
20 dB/1000' @ 10 MHz
100 ±10% @ 10 MHz
)
50 meters (165 feet
Straight Through Cable
3
4
Twisted Twisted
Pair #1 Pair #2
5
6
3
4
5
6
7
