Media ACM ASM feeder removal

1.
Remove the left side cover. See
2.
Remove the LVPS/HVPS. See
3.
Remove the duplex. See
4.
Remove the main motor gear drive. See
5.
Loosen the media feed clutch. See
Warning: Do not cut the cable (leave the media feed clutch hanging).
6.

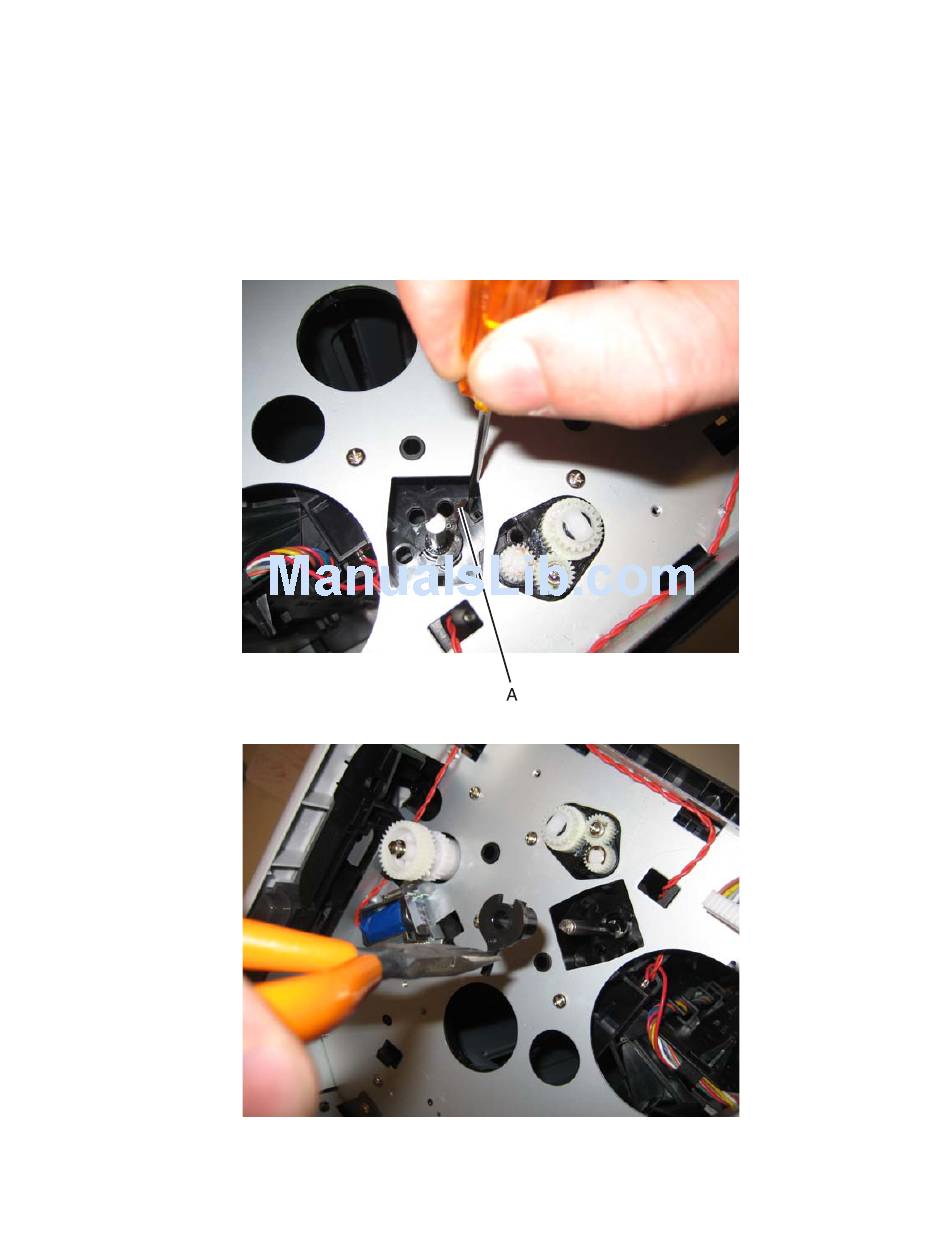

Use a screwdriver to pop the shaft retainer tab (A) loose from the ACM feed shaft.
7.
Use a small pair of pliers to remove the shaft retainer tab.
"Left side cover removal" on page
"LVPS/HVPS removal" on page
"Duplex removal" on page
"Main motor gear drive removal" on page
"Media feed clutch removal" on page
4-24.
4-27.
4-11.
4-38.
Repair information
4513-200, -220, -230
4-30.
4-35
