Rear exit guide assembly with sensor and reversing solenoid removal

1.
Remove the top cover. See
2.
Remove the rear door and rear cover. See
3.

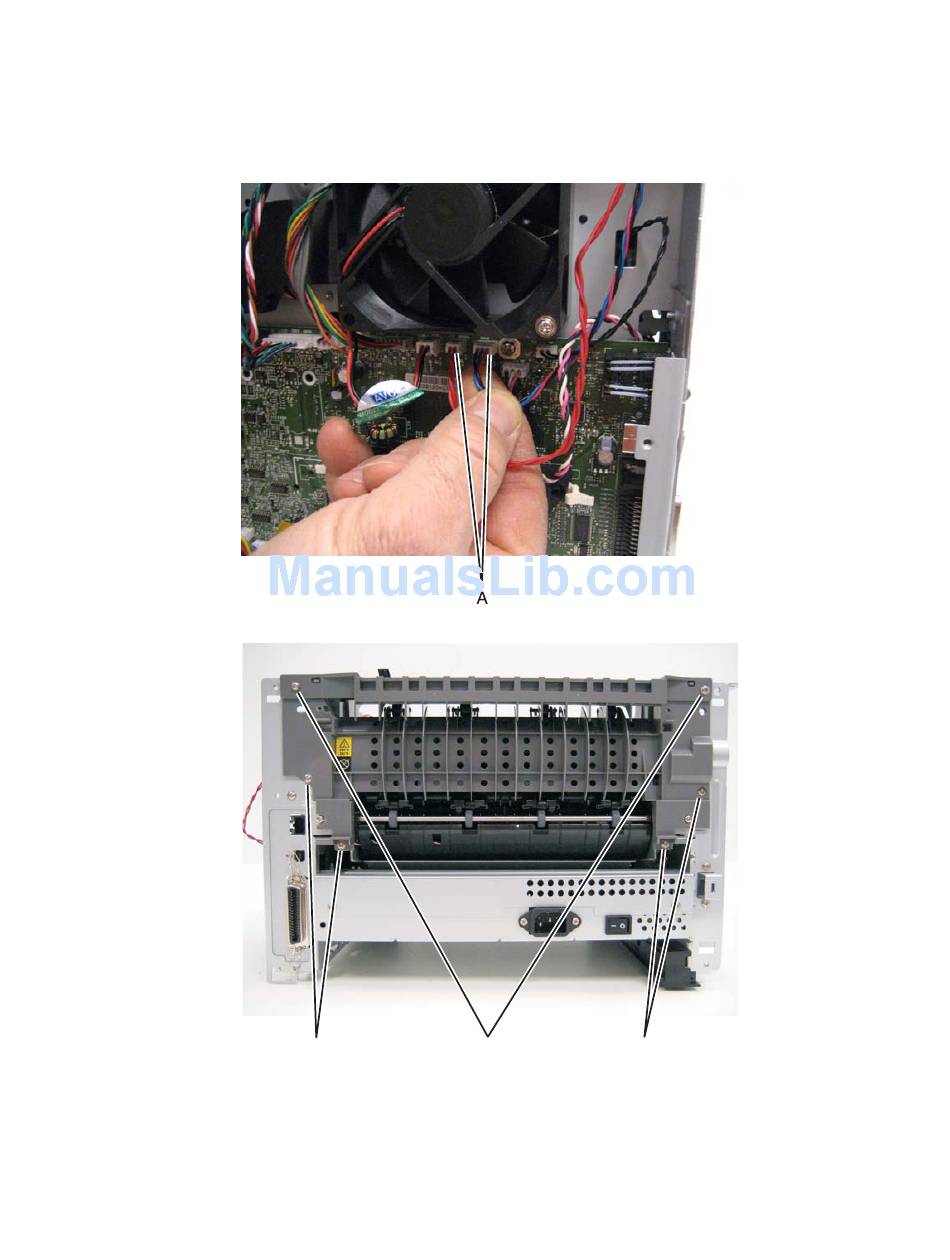

Disconnect the narrow media sensor cable and the reversing solenoid cable (A).
4.
Remove the six screws (B) from the rear exit guide assembly.
"Top cover assembly removal" on page
"Rear door and rear cover removal" on page
B B
4513-200, -220, -230
4-55.
4-49.
B
Repair information
4-51
