TONER CARTRIDGE REMANUFACTURING INSTRUCTIONS
LEXMARK
E260 • 360 • 460 • X264 • 363 • 364
®

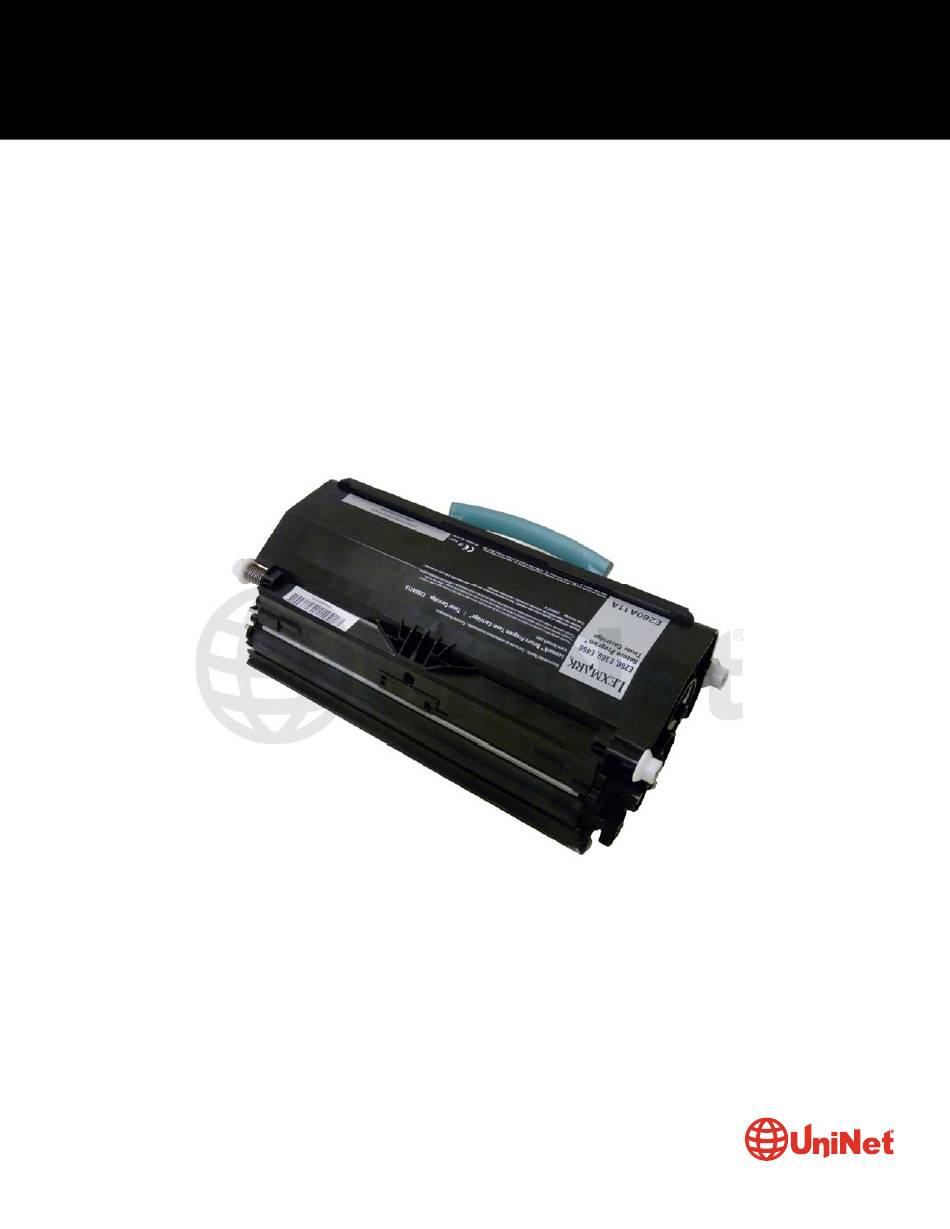

TONER CARTRIDGE
www.uninetimaging.com
© 2010 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only.
UniNet Imaging does not warrant downloaded information. Unauthorized sale, reproduction or distribution of this article is prohibited. For additional support, please contact techsupport@uninetimaging.com
Advertisement
Related Manuals for Lexmark E260
Summary of Contents for Lexmark E260
- Page 1 LEXMARK E260 • 360 • 460 • X264 • 363 • 364 ™ TONER CARTRIDGE REMANUFACTURING INSTRUCTIONS LEXMARK E260 • 360 • 460 • X264 • 363 • 364 ® TONER CARTRIDGE www.uninetimaging.com © 2010 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only.
-
Page 2: Toner Cartridges
It should also be noted that the OEM high yield cartridges only work in the E360 and E460 series, not the E260 series. Also the Extra high yield cartridges are only used in the E460 series. There is also a special 18,000 page EHY cartridge for use in the E462 Only. - Page 3 LEXMARK E260 • 360 • 460 • X264 • 363 • 364 MFP TONER CARTRIDGE REMANUFACTURING INSTRUCTIONS CARTRIDGES FOR USE IN THE E260/360/460 - EUROPE & THE MIDDLE EAST Part# Type Yield 0E260A11E Std. Return cartridge 3,500 0E260A21E Standard cartridge...
-
Page 4: Tools Needed
LEXMARK E260 • 360 • 460 • X264 • 363 • 364 MFP TONER CARTRIDGE REMANUFACTURING INSTRUCTIONS MACHINES BASED ON THIS ENGINE Lexmark E260d Lexmark E260dn Lexmark E360d Lexmark E362dn Lexmark E460dn Lexmark E460dw Lexmark E462 Lexmark X264 Lexmark X363 Lexmark X264 How to take test prints as well as cartridge troubleshooting are covered at the end of the article. - Page 5 LEXMARK E260 • 360 • 460 • X264 • 363 • 364 MFP TONER CARTRIDGE REMANUFACTURING INSTRUCTIONS 1. Remove the developer roller screw and cover. Remove the screw and bend the cover out from the middle. There are two pins on each side that will break if you just pull it off.
- Page 6 LEXMARK E260 • 360 • 460 • X264 • 363 • 364 MFP TONER CARTRIDGE REMANUFACTURING INSTRUCTIONS 4. Remove the leaf spring. The doctor blade will come loose. Place the blade aside. 5. On the gear side of the cartridge, remove the developer roller drive gear. This gear locked on the shaft.
- Page 7 LEXMARK E260 • 360 • 460 • X264 • 363 • 364 MFP TONER CARTRIDGE REMANUFACTURING INSTRUCTIONS 6. Remove the screw and the top idler gear. 7. Remove the developer roller drive gear. 8. Remove the large idler gear by pressing 9.
- Page 8 LEXMARK E260 • 360 • 460 • X264 • 363 • 364 MFP TONER CARTRIDGE REMANUFACTURING INSTRUCTIONS 10. Remove the feed roller gear. 11. Remove the two screws and the gear plate. This has a tight fit. Pry off carefully.
- Page 9 LEXMARK E260 • 360 • 460 • X264 • 363 • 364 MFP TONER CARTRIDGE REMANUFACTURING INSTRUCTIONS 14. Wipe the developer roller with a clean lint free cloth and 15. Install the gear plate and two screws. re-install the developer roller. At this point we do not recommend that any chemicals be used to clean this roller.
- Page 10 LEXMARK E260 • 360 • 460 • X264 • 363 • 364 MFP TONER CARTRIDGE REMANUFACTURING INSTRUCTIONS 17. Install the developer roller gear (lock it in place), top idler gear with screw, the bottom Idler gear with screw, and the large idler gear (snaps in place).
- Page 11 LEXMARK E260 • 360 • 460 • X264 • 363 • 364 MFP TONER CARTRIDGE REMANUFACTURING INSTRUCTIONS 19. Re-install the developer roller cover and screw. 20. Fill the cartridge with the proper amount of toner for E260/360/460/X264/363/364 and install the fill plug.
-
Page 12: Printer Error Codes
LEXMARK E260 • 360 • 460 • X264 • 363 • 364 MFP TONER CARTRIDGE REMANUFACTURING INSTRUCTIONS 23. If the felt cover is available, wrap the cartridge as shown. This cover helps protect the developer roller from damage. Aftermarket covers are in development.
