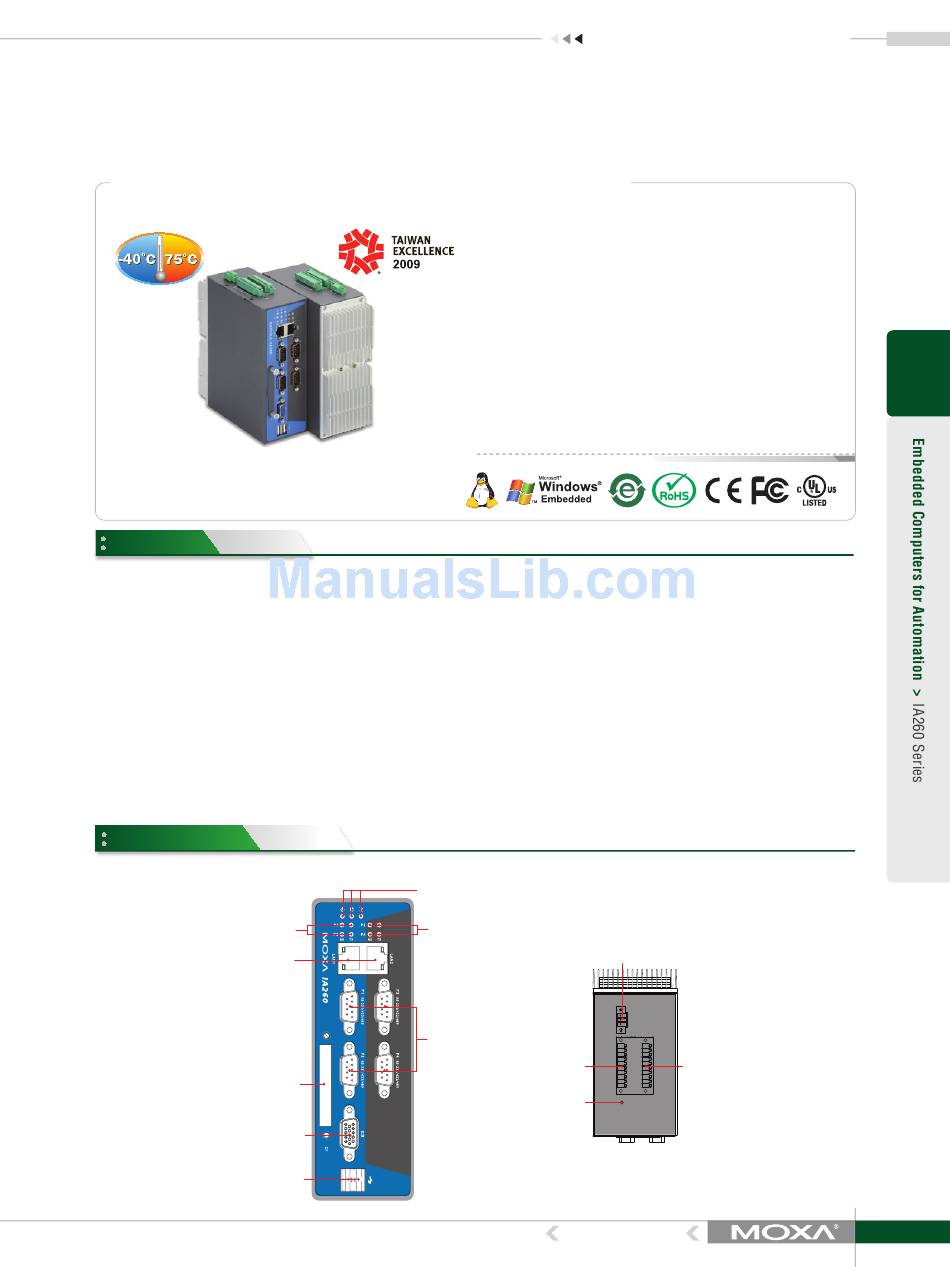

IA260 Series
RISC-based computers with 4 serial ports, dual LANs,
VGA, DIO, CompactFlash, USB
The certifi cation logos shown here apply to some or all of the products in this
section. For details, see "Regulatory Approvals" under "Specifi cations" below.
Overview
The IA260 embedded computers come with 4 RS-232/422/485 serial
ports, dual Ethernet ports, 8 digital input channels, 8 digital output
channels, a VGA output, 2 USB hosts, and a CompactFlash socket.
The computers are housed in a compact, IP40 protected, industrial-
strength aluminum case.
The IA260 computers use the Cirrus Logic EP9315 ARM9, 32-bit, 200
MHz RISC CPU. This powerful computing engine supports several
useful communication functions, but will not generate too much heat.
The built-in 32 MB NOR Flash ROM and 128 MB SDRAM give you
enough memory to run your application software directly on the IA260.
The patented "H-Type" heat dissipation design makes the IA260 an
ideal computing unit for applications in extremely hot field sites,
since it can directly transmit heat from inside the housing to the

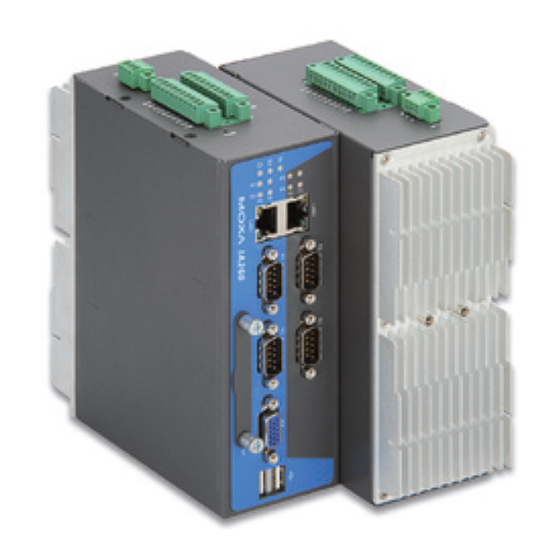

Appearance
LED Indicators
Serial, Tx/Rx
10/100 Mbps
Ethernet x 2
CompactFlash
Socket
VGA Output
USB 2.0 Host x 2
›
Cirrus Logic EP9315 ARM9 CPU, 200 MHz
›
128 MB RAM on-board, 32 MB fl ash disk
›
4 software-selectable RS-232/422/485 serial ports
›
VGA interface for fi eld site monitoring
›
Dual 10/100 Mbps Ethernet for network redundancy
›
8+8 DI/DO channels, up to 30 VDC
›
12 to 48 VDC power input design
›
Supports CompactFlash and USB 2.0 hosts
›
Ready-to-run Linux/WinCE 6.0 platform
›
H-type heat dissipation design for system reliability
›
-40 to 75°C wide operating temperature model available
air. With its built-in VGA output interface, the IA260 computers are
suitable for use with SCADA systems in industrial applications, such
as factory automation, production line process monitoring, and mining
automation, that require VGA and HMI features.
The IA260 computers support RS-232/422/485, digital I/O, and have
dual LAN ports, making them ideal as communication platforms for
industrial applications that require network redundancy. In addition
to the standard model, a wide temperature (-40 to 75°C) model is
available for use in harsh industrial automation environments.
The IA260 computers come with Windows CE 6.0 pre-installed, and
support general Windows and .NET 2.0 computing environments. This
means that programs developed for standard PC operating systems
with tools such Embedded Visual C++ or Visual Studio 2005 can run
on the IA260 without much porting effort.
Front View
LED Indicators
Power, Ready,
Storage
4 R T
LED Indicators
Serial, Tx/Rx
RS-232/422/485
Serial Port x 4
