Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
EXPC-1519 Series
Edition 1.0, September 2015
Technical Support Contact Information
www.moxa.com/support
2015 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802015190010
*1802015190010*
Advertisement
Table of Contents
Related Manuals for Moxa Technologies EXPC-1519 Series
Summary of Contents for Moxa Technologies EXPC-1519 Series
-

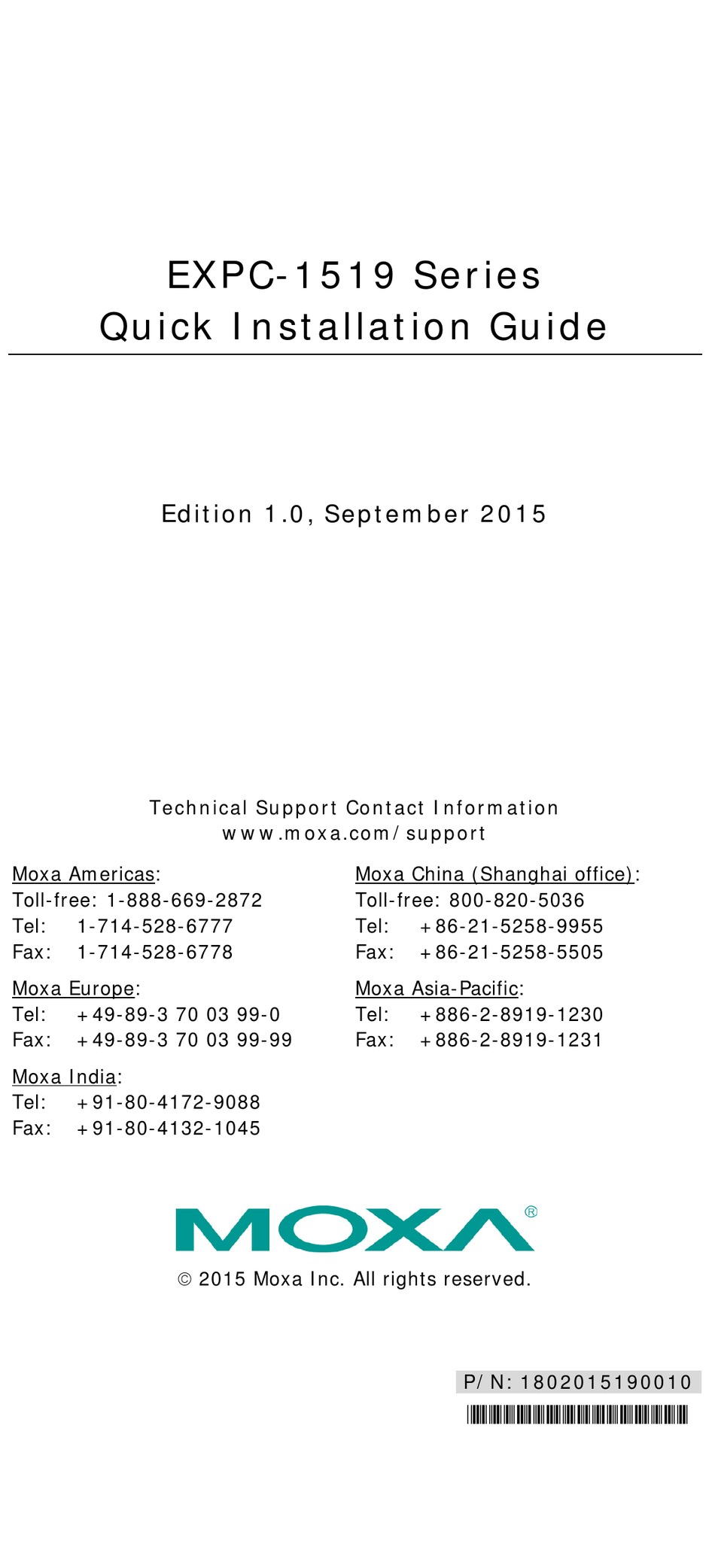

Page 1: Quick Installation Guide
EXPC-1519 Series Quick Installation Guide Edition 1.0, September 2015 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0... -
Page 2: Package Checklist

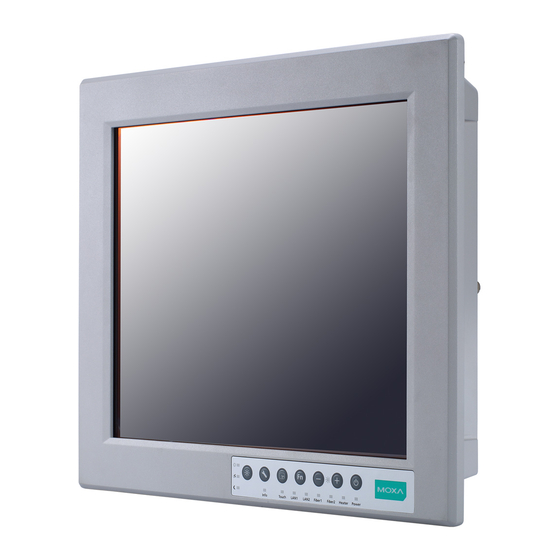

Overview The EXPC-1519 series Zone 2 panel computers feature advanced 3rd generation Intel® Core™ processors—i7-3555LE and Celeron 1047UE—with 4 GB of system memory expandable to 16 GB, delivering a reliable, high-performance platform of wide versatility for use in harsh oil and gas environments. - Page 3 Bottom View Applies to: EXPC-1519-C1-S1-T, EXPC-1519-C7-S1-T, EXPC-1519-C1-S2-T, EXPC-1519-C7-S2-T Bottom View Applies to: EXPC-1519-C1-S3-T, EXPC-1519-C7-S3-T The accessories provided with the product include an AC power connector, DC power connector, USB connector, and RJ45 connector. Install the items required for your own application. The following figure shows what the computer should look like after all the connectors are installed.
- Page 4 The following table describes the LEDs on the front panel. Color Description Green Power is on and functioning normally. Power Power is off. Green Fiber port is connected. Fiber 1/ Fiber 2 Fiber port is not connected. Green LAN port is connected. LAN 1/ LAN 2 LAN port is not connected.
-
Page 5: Pin Assignments
CFast card into the slot, and then replace the slot cover. Grounding the EXPC-1519 Series Proper grounding and wire routing help limit the effects of noise from electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting the power source. - Page 6 3. Assemble the cable and connector kit in together, as illustrated in the following figure. Serial Ports The EXPC-1519 series features two software-selectable RS-232/422/485 serial ports, using a DB9 connector. RS-485 RS-485 Pin RS-232 RS-422...
- Page 7 EXPC-1519-C1-S2-T / EXPC-1519-C7-S2-T Terminal Block For the EXPC-1519-C1-S2-T and EXPC-1519-C7-S2-T SKU, all data input and output goes through terminal block. Refer to the pin assignment table below for details. Function Pin Definition USB1/ USB2 USB1- USB1- USB2- USB2- DATA- DATA+ DATA- DATA+ USB3/...
- Page 8 Once the system is ready, the Power LED turns on. To power off the EXPC-1519 series, we recommend using the power off procedure for the OS you are using. If the system does not power off properly, you can press the Power button for about 4 seconds to force the power to turn off.
