Moxa Technologies IA260 Quick Installation Manual

IA260
Quick Installation Guide
First Edition, September 2008

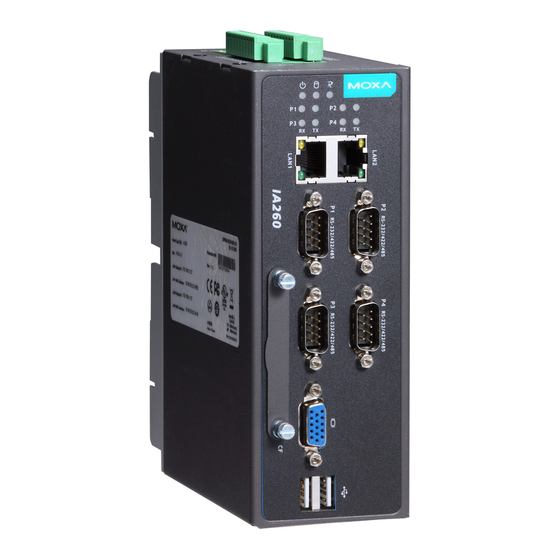

1. Overview
The IA260 embedded computer comes with four RS-232/422/485 serial
ports, dual 10/100 Mbps Ethernet ports, 8 digital input and 8 digital
output channels, VGA output, a CompactFlash socket for mass storage
expansion, and USB ports for keyboard/mouse connection or mass
storage disk expansion. These features make the IA260 ideal for
embedded applications in harsh industrial environments, such as SCADA
systems and manufacturing automation.
2. Package Checklist
Before installing the IA260, verify that the package contains the
following items:
1 IA260 Embedded Computer
Wall-Mounting Kit
DIN-Rail Mounting Kit (attached to the product's casing)
Quick Installation Guide
Document and Software CD
Cross-over Ethernet cable
CBL-4PINDB9F-150: 150 cm, 4-pin header to DB9 female console
port cable
Universal Power Adaptor
Product Warranty Statement
NOTE: Please notify your sales representative if any of the above items
are missing or damaged.

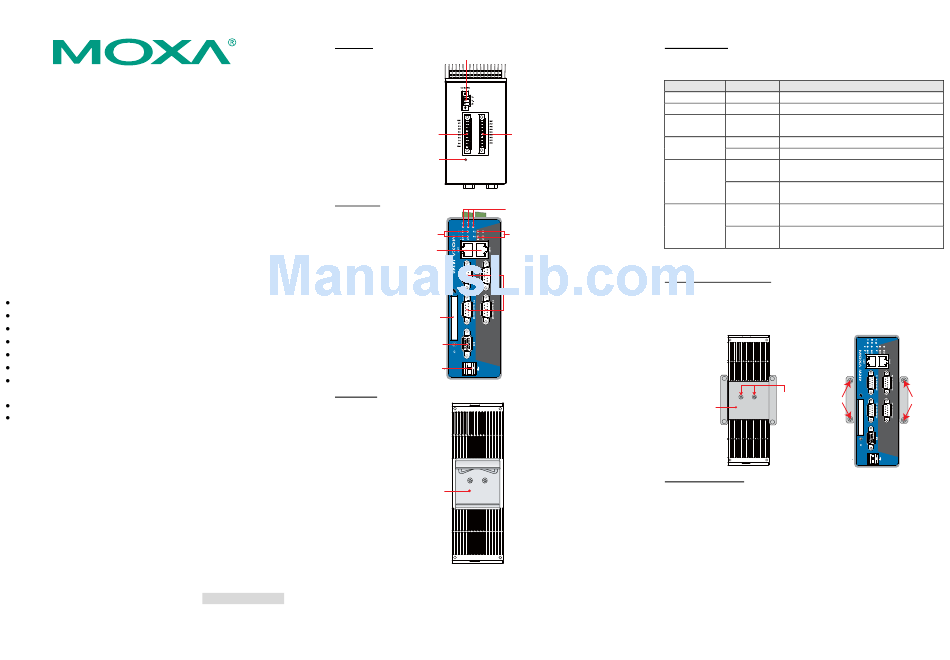

3. IA260 Panel Layout
The following figures show the panel layouts of the IA260.
— 1 —
Top View
Front View
Rear View
P/N: 1802002600020
Power Input (12 to 48 VDC)
DI x 8 DO x 8
Reset
LED Indicators
Power, Ready, Storage
4 R T
LED Indicators
LED Indicators
Serial, Tx/Rx
Serial, Tx/Rx
10/100 Mbps
Ethernet x 2
RS-232/422/485
Serial Port x 4
CompactFlash
Socket
VGA Output
USB 2.0 Host x 2
DIN-rail Kit
— 2 —
LED Indicators
The IA260 has 15 LED indicators on the front panel. Refer to the
following table for information about each LED.
LED Name LED Color LED Function
Power Green Power is on
Ready Green OS is ready and functioning normally
Data is being written to or read from the
Storage Green
storage unit.
Orange 10 Mbps Ethernet connection
LAN 1/2
Green 100 Mbps Ethernet connection
Serial port is transmitting TX data to the
Orange
serial device.
P1-P4 (Tx)
Off Serial port is not transmitting TX data to
the serial device.
Orange Serial port is receiving RX data from the
serial device.
P1-P4 (Rx)
Off Serial port is not receiving RX data from
the serial device.
4. Installing the IA260
Wall or Cabinet Mounting
The IA260 comes with one metal bracket for attaching it to a wall or the
inside of a cabinet. Using two screws for the bracket, first attach the
bracket to the rear of the IA260. Next, use four screws per side to attach
the IA260 to a wall or cabinet.
Screws
Screws
Wallmount Kit
DIN-Rail Mounting
The aluminum DIN-Rail attachment plate is already attached to the
product casing. When attaching the plate to the IA260, make sure that the
stiff metal spring is at the top.
— 3—
4 R T
Screws
