- Page 1 ThinkCore W315/325/345 Hardware User’s Manual www.moxa.com/product First Edition, May 2007 Moxa Systems Co., Ltd. Tel: +886-2-2910-1230 Fax: +886-2-2910-1231 Web: www.moxa.com MOXA Technical Support Worldwide: support@moxa.com The Americas: support@usa.moxa.com...
-
Page 2: Copyright Notice
ThinkCore W315/325/W345 Hardware User’s Manual The software described in this manual is furnished under a license agreement and may be used only in MOXA is a registered trademark of The Moxa Group. All other trademarks or registered marks in this manual belong to their respective manufacturers. -
Page 3: Table Of Contents
Introduction ...1-1 Overview... 1-2 Package Checklist ... 1-2 Product Features ... 1-3 Product Hardware Specifications... 1-3 Hardware Block Diagram ... 1-5 ThinkCore W315 ... 1-5 ThinkCore W325 ... 1-6 ThinkCore W345 ... 1-6 Chapter 2 Hardware Introduction...2-1 Appearance ... 2-2 ThinkCore W315 ... -
Page 4: Chapter 1 Introduction
The ThinkCore W315/W325/W345 series of wireless RISC-based embedded computers feature a GSM/GPRS module, RS-232/422/485 serial ports, and an Ethernet port in a small, rugged chassis. In addition, the W325 and W345 models come with an SD slot, and the W345 also has two USB 2.0 hosts and one relay output channel. -
Page 5: Overview
ThinkCore W315/325/W345 Hardware User’s Manual Overview The ThinkCore W315/W325/W345 wireless embedded computers are designed around the MOXA ART ARM9 32-bit RISC processor. Unlike the X86 CPU, which uses a CISC design, the MOXA ART ARM9 uses RISC architecture and modern semiconductor technology to provide a powerful computing engine without generating a significant amount of heat. -
Page 6: Product Features
ThinkCore W315/325/W345 Hardware User’s Manual Product Features W315/W325/W345 series embedded comptuers have the following features: MOXA ART 32-bit ARM9 RISC industrial communication processor 32 MB on-board RAM (64 MB for W345) 16 MB built-in flash memory RS-232/422/485 serial ports with software selectable interface Baudrate between 50 and 921.6Kbps;... - Page 7 ThinkCore W315/325/W345 Hardware User’s Manual Coding Schemes GPRS Terminal Device Class CSD Data Transmission Rate SIM Control Antenna Network Communication Protection Serial Communication Serial Port Protection Data bits Stop bit(s) Parity Flow Control Speed LEDs System GPRS Serial Power Requirements...
-
Page 8: Hardware Block Diagram
ThinkCore W315/325/W345 Hardware User’s Manual Operating Temperature -10 to 60°C (14 to 140°F), 5 to 95% RH Storage Temperature Regulatory Approvals Safety Other Warranty Hardware Block Diagram ThinkCore W315 Power Circuit Watchdog RS-232/422/485 -20 to 80°C (-4 to 176°F), 5 to 95% RH... -
Page 9: Thinkcore W325
ThinkCore W315/325/W345 Hardware User’s Manual ThinkCore W325 Power Circuit Watchdog UART Serial Port 1 RS-232/422/485 ThinkCore W345 GSM/GPRS USB 2.0 Host x 2 Power Circuit Watchdog UART Serial Port 1 Ethernet GSM/GPRS Cellular 32MB UART MOXA ART CPU 16MB 32-bit ARM9... -
Page 10: Chapter 2 Hardware Introduction
In this chapter, we cover the following topics: Appearance ThinkCore W315 ThinkCore W325 ThinkCore W345 Dimensions ThinkCore W315... -
Page 11: Appearance

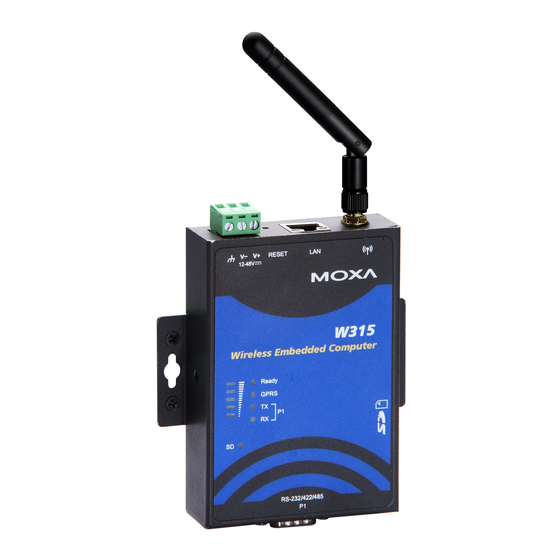

ThinkCore W315/325/W345 Hardware User’s Manual Appearance ThinkCore W315 (10/100BaseTx) 12 to 48 VDC ThinkCore W325 (10/100BaseTx) 12 to 48 VDC Wireless GSM/GPRS antenna Ethernet Serial console port Wireless Embedded Computer 1. Internal SD Slot for RS-232/422/485 Storage Expansion 2. Internal SIM Card Slot... -
Page 12: Thinkcore W345
ThinkCore W315/325/W345 Hardware User’s Manual ThinkCore W345 Reset Button Ethernet (10/100BaseTx) Relay Output 12 to 48 VDC Top View Relay Output USB 2.0 Host RELAY Reset 12-48V Ethernet 12 to 48 VDC 10/100BaseTX Front View USB 2.0 Host x 2... -
Page 13: Dimensions
ThinkCore W315/325/W345 Hardware User’s Manual Dimensions ThinkCore W315 ThinkCore W325 Wireless Embedded Computer RS-232/422/485 26 mm (1.02 in) 77 mm (3.03 in) 88 mm (3.46 in) 100 mm (3.94 in) RE SET 12 -48V W325 Wireless Embedded Computer Re ady... -
Page 14: Thinkcore W345
ThinkCore W315/325/W345 Hardware User’s Manual ThinkCore W345 38 mm (1.50 in) 40.5 mm (1.59 in) RELAY Reset 12-48V W345 GPR S 150 mm (5.91 in) 161 mm (6.34 in) 173 mm (6.81 in) Hardware Introduction... -
Page 15: Led Indicators
ThinkCore W315/325/W345 Hardware User’s Manual LED Indicators Note that the W315 does not have an SD slot, so it does not have an SD LED. LED Name Ready GPRS Signal Strength P1-P4 P1-P4 Reset Button Hold in the reset button for 5 seconds to load the factory default configuration. After loading the factory defaults, the system will reboot automatically. -
Page 16: Real Time Clock
ThinkCore W315/325/W345 Hardware User’s Manual Real Time Clock The embedded computer’s real-time clock is powered by a lithium battery. We strongly recommend that you NOT replace the lithium battery on your own. If the battery needs to be changed, please contact the MOXA RMA service team. -
Page 17: Hardware Connection Description
Hardware Connection Description Chapter 3 The ThinkCore W300 series wireless embedded computers support multiple types of connections. GSM/GPRS, Ethernet, and one or more serial ports are built into every model. In addition, the computers come with a serial console port for monitoring bootup messages. All models include an SD storage expansion, USB ports for additional device and storage options, and relay output connections. -
Page 18: Installing The W315/W325/W345
Installing the W315/W325/W345 Wall or Cabinet Mounting The ThinkCore W315/325/345 embedded computers have built-in “ears” for attaching the embedded computers to a wall or the inside of a cabinet. We suggest using two screws per ear to attach the W315/325/345 to a wall or cabinet. The heads of the screws should be less than 6.0 mm in diameter, and the shafts should... -
Page 19: Wiring Requirements
ThinkCore W315/325/W345 Hardware User’s Manual Wiring Requirements This section describes how to connect serial devices to the embedded computer. You should read and follow these common safety precautions before proceeding with the installation of any electronic device: Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point. -
Page 20: Connecting Data Transmission Cables
ThinkCore W315/325/W345 Hardware User’s Manual ATTENTION This product should be mounted to a well-grounded mounting surface such as a metal panel. 12-48V Connecting Data Transmission Cables This section describes how to connect the W315/325/345 embedded computers to the network, serial devices, and a serial COM terminal. -
Page 21: Connecting To A Serial Device
Serial Console Port & Pinouts Connecting an Antenna The ThinkCore W315/325/345 embedded computers come with a 1 dBi antenna for GPRS communication. Connect the antenna to the SMA connector located on the front panel of the embedded computer. Connect the antenna to the computer by rotating it in a clockwise direction. - Page 22 ThinkCore W315/325/W345 Hardware User’s Manual W315/W325 SIM Card/SD Card Slot Follow these steps to install a SIM card: Before you install a SIM card, make sure the embedded computer is powered off. Step1: Use a screwdriver to remove the protective cover to access the slot. Note that the SD slot Step2: and SIM card slot for the W315/W325 share the same protective cover.
-
Page 23: Installing An Sd Card For Storage Expansion
Installing an SD Card for Storage Expansion The ThinkCore W315/W325/W345 provide an SD slot for storage expansion. The SD slot allows users to plug in a Secure Digital (SD) memory card compliant with SD standard V1.0 for up to 1 GB of additional memory space. -
Page 24: Usb (W345 Only)
ThinkCore W315/325/W345 Hardware User’s Manual W345 The SD slot is located on the front panel of the W345. To install an SD card, you must first remove the protective cover to access the slot, and then plug the SD card directly into the slot. -
Page 25: Appendix A Fcc Warning Statement
Appendix A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 26: Appendix B Service Information
Appendix B This appendix shows you how to contact MOXA for information about this and other products, and how to report problems. In this appendix, we cover the following topics: MOXA Internet Services Problem Report Form Product Return Procedure Service Information... -
Page 27: Moxa Internet Services
ThinkCore W315/325/W345 Hardware User’s Manual MOXA Internet Services Customer satisfaction is our primary concern. To ensure that customers receive the full benefit of our products, MOXA Internet Services has been set up to provide technical support, driver updates , product information, and user’s manual updates. -
Page 28: Problem Report Form
ThinkCore W315/325/W345 Hardware User’s Manual Problem Report Form MOXA ThinkCore W315/325/345 Series Customer name: Company: Tel: Email: MOXA Product: Serial Number: _________________ Problem Description: Please describe the problem clearly. Include as many details as you can. This will help us reproduce the problem, and expedite the repair of your product. -
Page 29: Product Return Procedure
ThinkCore W315/325/W345 Hardware User’s Manual Product Return Procedure For product repair, exchange, or refund, the customer must: Provide evidence of original purchase. Obtain a Product Return Agreement (PRA) from the sales representative or dealer. Fill out the Problem Report Form (PRF). Include as much detail as possible for a shorter product repair time.
