- Page 1 Quick Installation Guide EtherFast 10/100Mbps Switch Model No.: SP616R Website http://www.micronet.info...
- Page 2 Introduction Micronet SP616R provides powerful, high-performance Ethernet switch, with all ports capable of 10 and 100Mbps auto-negotiation operation. Store-and-forward switching mode promises the low latency plus eliminates all the network errors, including runt and CRC error packets. To work under full-duplex mode, transmission and reception of the frames can occur simultaneously without causing collisions as well as double the network bandwidth.
-
Page 3: Package Contents
Package Contents Before you start installing the device, verify the following items are in the package: One SP616R Ethernet Switch Quick Installation Guide One power cord Rack-Mount accessories Features Complies with 10Base-T/100Base-TX specifications of the IEEE802.3/802.3u standard Support Auto-Negotiation function to automatically select... -
Page 4: Physical Description

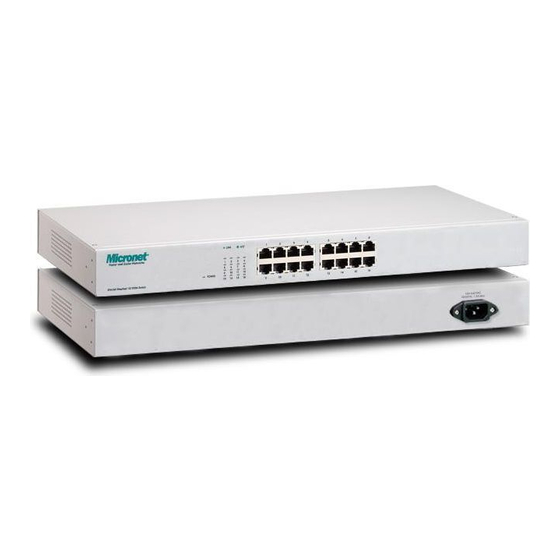

Physical Description SP616R front view SP616R rear view Please refer to the following table for LED definition Status Operation Steady Green Power is on Power Power is off Steady Green A valid link is established LINK/ACT No link is established... -
Page 5: Installation
Installation Micronet SP616R Switches do not require software configuration. Users can immediately use any of the features of this product simply by attaching the cables and turning on the power. Rack Mounting The switch can be mounted in an EIA standard 19-inch rack, which can be placed in a wiring closet with other equipment. - Page 6 speed (10/100Mbps) and mode (Full/Half Duplex). If the attached device does not support auto-negotiation or has auto-negotiation disabled, an auto-sensing process is initiated to select the speed and set the duplex mode to half-duplex. Switch-to-switch Connections In making a switch interconnection, you could use any port to connect another switch with straight or crossover cable.
- Page 7 Network Application...
-
Page 8: Specifications
Specifications IEEE802.3, IEEE802.3u Standard IEEE802.3x : Flow Control Interface 16 * RJ-45 ports (10/100Mbps) 10BASE-T: Category 3, 4, 5 UTP/STP Cable Connections 100BASE-TX: Category 5 UTP/STP 20M(Full duplex)/10M(Half duplex) Network Speed 200M(Full duplex)/100M(Half duplex) Features Auto-negotiation, Auto Uplink Switch Fabric 3.2Gbps Memory 4 MByte... - Page 9 FCC Certifications This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 10 CE Mark Warning This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class A for ITE, the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility. Company has an on-going policy of upgrading its products and it may be possible that information in this document is not up-to-date.
- Page 11 Appendix A. Fast Ethernet Technology The growing importance of LANs and the increasing complexity of desktop computing applications are fueling the need for high performance networks. A number of high-speed LAN technologies have been proposed to provide greater bandwidth and improve client/server response times.
- Page 12 Switching is a cost-effective way of increasing the total network capacity available to users on a local area network. A switch increases capacity and decreases network loading by dividing a local area network into different segments. Each segment has its own bandwidth and it does not compete with others for network transmission capacity.
- Page 13 the network. Switch, on the other hand, is less expensive, easier to setup, and practically maintenance free, which make it an ideal solution to today’s local area network congestion problems. C. RJ-45 Pin Assignment According to the EIA/TIA 586B standard, the color sequence of Cat.5 UTP is as following figure.
- Page 14 Contact Media Direct Interface Signal TX + (transmit) TX - (transmit) Rx + (receive) Not used Not used Rx - (receive) Not used Not used...
