MicroNet SP6124A Quick Installation Manual

Hardware Installation
This switch can be placed on your desktop directly, or mounted in a
rack. Users can display all the features of the switch by simply
attaching the cables and turning the power on.
Desktop Installation
1.Attach the provided robber feet to the bottom of the switch to keep
1. the switch from slipping. The recommend position has been
1. square-marked.
2.Install the switch on a level surface that can support the weight of
1. the unit and the relevant components.
3.Plug the switch with the female end of the provided power cord
1. and plug the male end to the power outlet.
Rack-mount Installation
The switch can be mounted in a standard 19" rack with two optional
rack mounting brackets and screws, which are used for rack
mounting the unit.
Procedures to rack-mount the switch in the rack:
1.Disconnect all the cables from the switch before continuing.
2.Place the unit the right way up on a hard, flat surface with the
1. front facing you.
3.Locate a mounting bracket over the mounting holes on one side
1. of the unit.
4.Insert the screws and fully tighten with a suitable screwdriver.
5.Repeat the two previous steps for the other side of the unit.
6.Insert the unit into the rack and secure with suitable screws.
7.Reconnect all the cables.
Specification
Standards IEEE802.3, 10Base-T
IEEE802.3u, 100Base-TX
IEEE802.3ab, 1000Base-T
IEEE802.3az (EEE)
IEEE802.3x Flow Control
Interface 24 10/100/1000 Mbps RJ-45 ports
NWay Protocol Support 10Mbps/100Mbps: Full-duplex,
Half-duplex 1000Mbps: Full-duplex
Switching Capacity 48 Gbps
MAC Address 8K
Jumbo Frame 9K Bytes
Packet Buffer 3.5Mbits
Power 100-240V, 50-60Hz
Dimension 430 x 250 x 44 mm
Temperature
Operating: 0~40 C, Storage: -20~70 C
Humidity
Operating: 10~90% (Non-Condensing)
P/N 2300-0678
5
O
WEEE Directive & Product Disposal
At the end its serviceable life ,this product should not be treated
as household or general waste. It should be handed over to the
applicable collection point for the recycling of electrical and
electronic equipment, or returned to the supplier for disposal.
7
Network Cables
1. Crossover or straight-through cable: All the ports on the
switch support Auto-MDI/MDI-X functionality. Both straight-through
or crossover cables can be used to connect the switch with PCs as
well as other devices like switches, hubs or routers.
2. Category 3, 4, 5, 5e or 6 UTP/STP cable: To make a valid
connection and obtain the optimal performance, appropriate cables
corresponding to different transmitting/receiving speed is required.
To choose a suitable cable, please refer to the following table.
Network Speed
10M
100M
1000M
[Tips:] To performing this switch well, we strongly recommend
below installation environment:
1. The switch is placed with appropriate ventilation environment. A
1. minimum 25mm space around the unit is recommended.
2. The switch and the relevant components are away from sources
1. of electrical noise such as radios, transmitters and
1. broadband amplifiers.
3. The switch is away from environments beyond
1. recommend moisture.
Communicate via
Quick Installation Guide

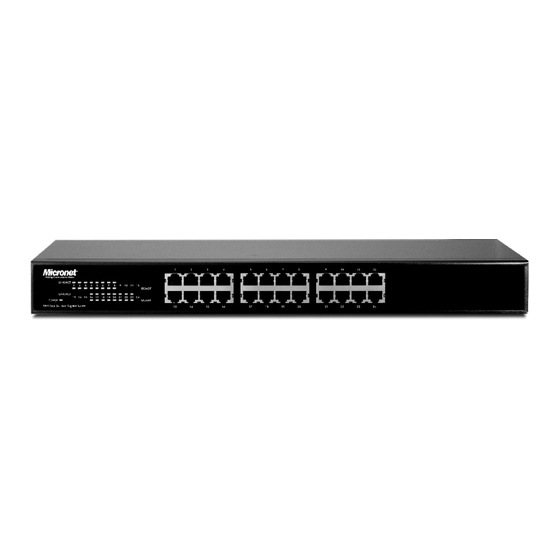

24-port Gigabit Switch
Model No.: SP6124A
O
Max. Length
Cable Type
Cat. 3,4,5 5e 100 meters
UTP/STP
Cat. 5
100 meters
UTP/STP
Cat. 5e, 6
100 meters
UTP/STP
