User's Manual
EtherFast 10/100M Smart Switch
Model No.: SP616DB / SP624DB
http://www.micronet.info

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP616DB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MicroNet SP616DB

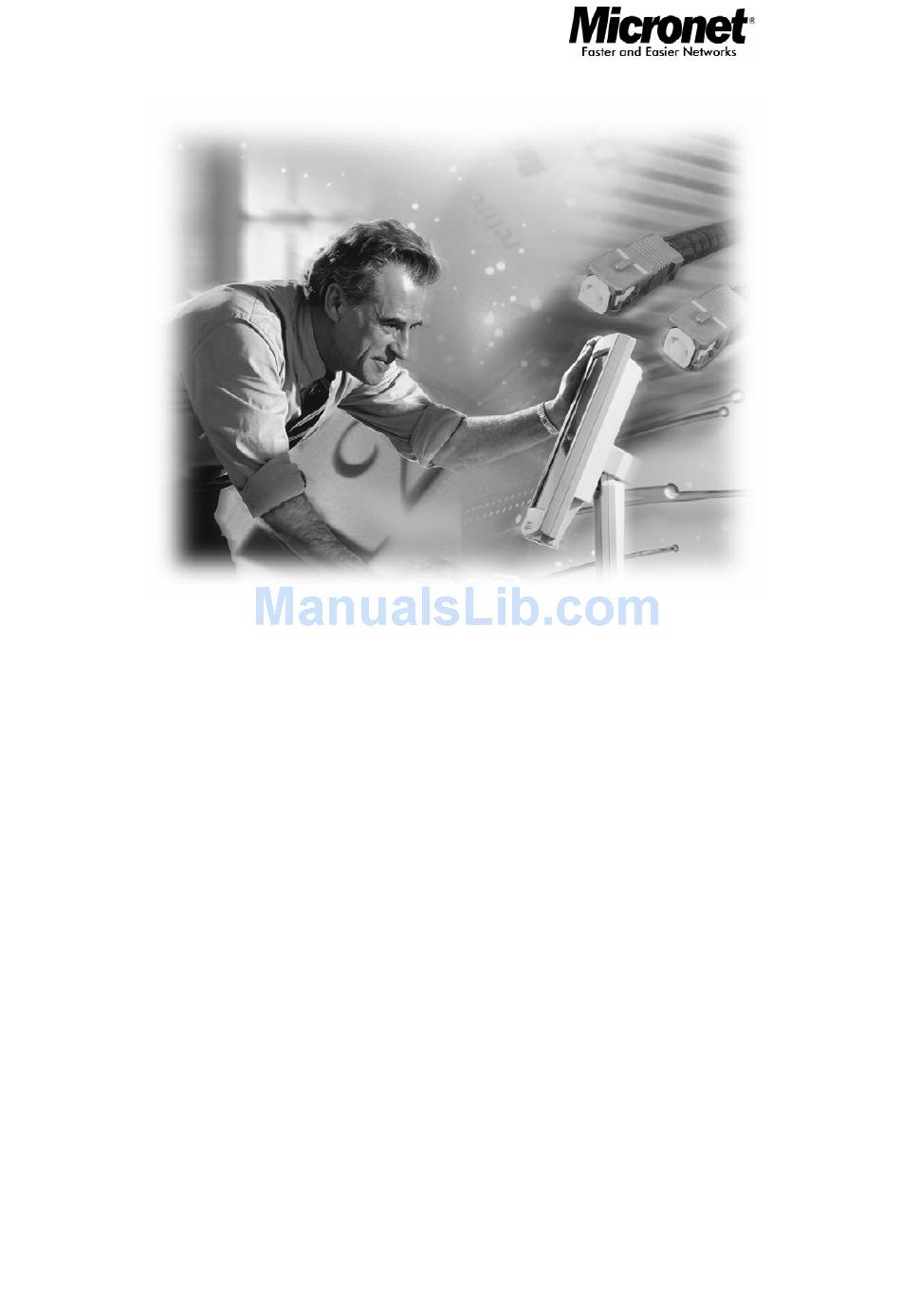

  • Page 1 User’s Manual EtherFast 10/100M Smart Switch Model No.: SP616DB / SP624DB http://www.micronet.info...
  • Page 2: Package Contents

    Rack Ears with Screws and Rubber Foots Features Micronet SP616DB/SP624DB has the following key features: Provide 16 (SP616DB) or 24 (SP624DB) RJ-45 ports of 10/100 Mbps, auto negotiation Provide one expansion slot for optional fiber optic module Provide one web-based console port Provide 2K (SP616DB)/10K (SP624DB) MAC address and 2M (SP616DB)/1.5M (SP624DB)
  • Page 3 This LED comes on when the switch is properly connected to power and turned on. TX/FX Push Button The push button is located at the right side of port 16 (SP616DB) or port 24 (SP624DB). Release this button to use RJ-45 port 16 (SP616DB) or port 24 (SP624DB), and press this button to use the 100BASE-FX module.
  • Page 4: Installation

    The switch can sit on desktop or any flat surface with adequate space and ventilation. If you want to place it onto a shelf, make sure the shelf can withstand the weight of the switch. Step 1: Simply put the switch on the desired place.
  • Page 5 Step 2: Prepare cable with corresponding connectors for each type of port in use. Step 3: Connect one end of the cable to the switch and the other end to a desired device. Step 4: Once the connections between two end-devices are made successfully, turn on the power.
  • Page 6: Switch Configuration

    Switch Configuration Setting UP Console Port Connection SP616DB/SP624DB provides one RJ-45 console port and a web-based interface, allowing users to configure and manage the switch remotely from web browser. Connect UTP/STP cable to SP616DB/SP624DB’s console port. Figure 5: Connect directly to PC In the web browser, specify the default IP address of SP616DB/SP624DB (192.168.1.10).
  • Page 7 Figure 9: System Change Switch Name: Type a switch name and replace the current switch name with a new one. (Please restart your Computer once the Switch Name is replaced and saved under “Save Configuration “by the new name ).
  • Page 8 Refresh: Click the Refresh button and refresh back to the last saved IP Configurations. IP Address, Netmask, Default Gateway: You can see and change the IP Address, Netmask, and Default Gateway of the Ethernet Switch. Apply: Click the Apply button and apply the new IP Configurations.
  • Page 9 VLAN Figure 12: VLAN VLAN: Click and choose the ports to be added into the VLAN groups. Apply: Click the Apply button and apply the new settings of the VLAN groups. Note: all Ports have to be selected to one of the VLAN Groups, those Port/Ports were not selected will be notified by the alarm message which shows “Non-Identify VLAN Group “.
  • Page 10 SP616DB: Figure 13: Trunk of SP616DB Disable: Click and choose the Disable to disable the Trunk Group 1 or Trunk Group 2. Trunk Group 1: Click and choose the Port 1, 2 to be added into the Trunk Group 1.
  • Page 11 Click the Ok or Cancel button to or not to save the configurations. Note: the Cancel button will discard any data you have changed since the last "Save" operation. Without clicking Ok button, the switch does not save any changes you may have made.
  • Page 12: Specifications

    Specifications IEEE standard IEEE 802.3,10BaseT IEEE 802.3u,100BaseTX/FX Port SP616DB: 16 10/100 Mbps ports SP624DB: 24 10/100 Mbps ports Speed 200 Mbps full-duplex 100 Mbps half-duplex Dimension 440 × 207 × 44 mm rack-mount size Weight SP616DB: 1.94 kg SP624DB: 2.07 kg...
