- Page 1 Quick Installation Guide EtherFast 10/100M Switch Model No.: SP624EA Website http://www.micronet.info...
- Page 2 Introduction Micronet SP624EA provides powerful, high-performance Ethernet switch, with all ports capable of 10 and 100Mbps auto-negotiation operation. Store-and-forward switching mode promises the low latency plus eliminates all the network errors, including runt and CRC error packets. To work under full-duplex mode, transmission and reception of the frames can occur simultaneously without causing collisions as well as double the network bandwidth.
-
Page 3: Package Contents
Package Contents Before you start installing the device, verify the following items are in the package: One SP624EA Ethernet Switch Quick Installation Guide One power cord Wall-Mount accessories Features Complies with 10Base-T/100Base-TX specifications of the IEEE802.3/802.3u standard Support Auto-Negotiation function to automatically select optimal speed (10/100Mbps) and mode (Full/Half Duplex) 8K MAC address table 320 Kbyte memory buffer... -
Page 4: Physical Description

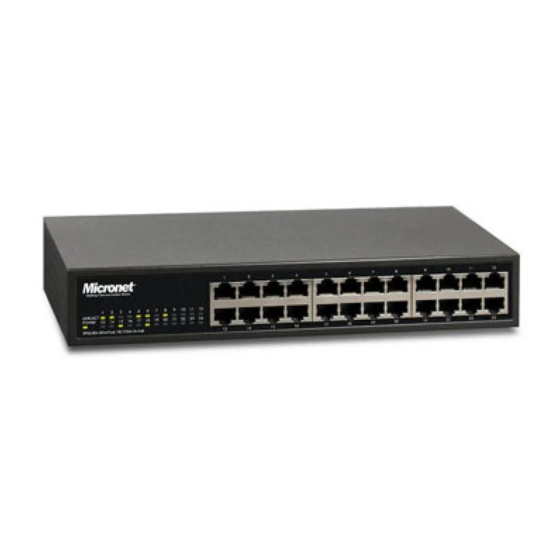

Physical Description SP624EA front panel view SP624EA rear panel view Please refer to the following table for LED definition Status Operation Steady Green Power is on Power Power is off Steady Green A valid link is established LINK/ACT No link is established Blinking Green Transmitting or receiving data... -
Page 5: Installation
Installation Micronet SP624EA Switches do not require software configuration. Users can immediately use any of the features of this product simply by attaching the cables and turning on the power. Connect each station to the switch by twisted-pair cable. Plug one RJ-45 connector into a RJ-45 port of the switch, and plug the other RJ-45 connector into the station’s network adapter. -
Page 6: Specifications
Specifications IEEE802.3, IEEE802.3u Standard IEEE802.3x : Flow Control Interface 24 * RJ-45 ports (10/100Mbps) 10BASE-T: Category 3, 4, 5 UTP/STP Cable Connections 100BASE-TX: Category 5 UTP/STP 10/100Mbps & Full/Half duplex mode Network Speed auto detection Uplink Auto Uplink (Auto MDI / MDI-X) Switch Fabric 4.8Gbps Memory... - Page 7 CE Mark Warning This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class A for ITE, the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility. Company has an on-going policy of upgrading its products and it may be possible that information in this document is not up-to-date.
