MicroNet SP6108I Quick Installation Manual

8-port 10/100/1000tx unmanaged industrial switch

Advertisement

Quick Links

Wiring the Fault Alarm Contact

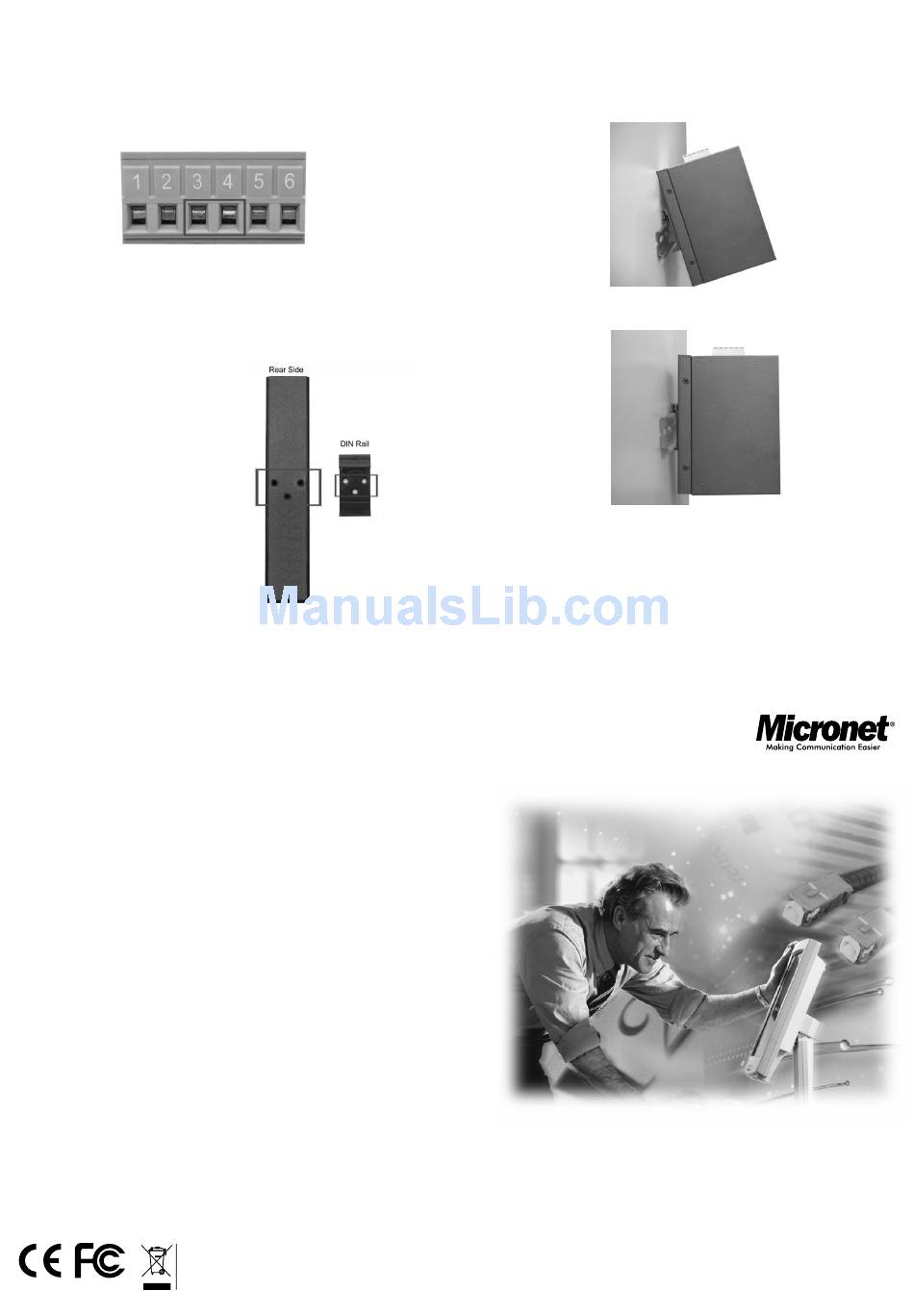

The fault alarm contact is in the middle of terminal block
connector as the picture shows below. Inserting the wires, it will
detect the fault status which the power is failure or port link
failure (for managed model) and form an open circuit.
Insert the wires into the fault alarm contact (No. 3 & 4)
Note: The wire gauge for the terminal block should be in the
range between 12~ 24 AWG.
DIN-Rail Mounting
The DIN-Rail is screwed on the
industrial switch when out of
factory. If the DIN-Rail is not
screwed on the industrial
switch, please see the
following figure to screw the
DIN-Rail on the switch. Follow
the steps below to hang the
industrial switch.
Installation Steps
1. Unpacked the Industrial switch packing.
2. Check whether the DIN-Rail is screwed on the Industrial
2.
switch. If not, please refer to DIN-Rail Mounting section for
2.
DIN-Rail installation. If you want to wall mount the Industrial
2.
switch, then please refer to Wall Mount Plate Mounting
2.
section for wall mount plate installation.
3. To hang the Industrial switch on the DIN-Rail track or wall,
2.
please refer to the Mounting Installation section.
4. Power on the Industrial switch. How to wire the power; please
2.
refer to the Wiring the Power Inputs section. The power LED
2.
on the Industrial switch will light up. Please refer to the LED
2.
Indicators section for meaning of LED indicators.
5. Prepare the twisted-pair, straight through Category 5e/above
2.
cable for Gigabit Ethernet connection.
6. Insert one end of Category 5e or above cables into the
2.
Industrial switch Ethernet port (RJ-45 port) and another end
2.
of category 5e or above cables to the network devices'
2.
Ethernet port (RJ-45 port), ex: switch, PC or Server. The UTP
2.
port (RJ-45) LED on the Industrial switch will light up when
2.
the cable is connected with the network device. Please refer
2.
to the LED Indicators section for LED light meaning.
7. When all connections are all set and LED indicators all show
2.
in normal, the installation is complete.
WEEE Directive & Product Disposal
At the end its serviceable life ,this product should not be treated
as household or general waste. It should be handed over to the
applicable collection point for the recycling of electrical and
electronic equipment, or returned to the supplier for disposal.
5
7
1. Use the screws to screw on the DIN-Rail on the industrial
1.
switch.
2. To remove the DIN-Rail, reverse the step 1.
3. Insert the top of DIN-Rail into the track.
4. Then, lightly push the button of DIN-Rail into the track.
5. Check the DIN-Rail is tightly on the track.
6. To remove the industrial switch from the track, reverse the
1.
steps above.
Quick Installation Guide
8-port 10/100/1000TX Unmanaged
Industrial Switch
Model No.: SP6108I/SP6108H
Web: www.micronet.com.tw
6
