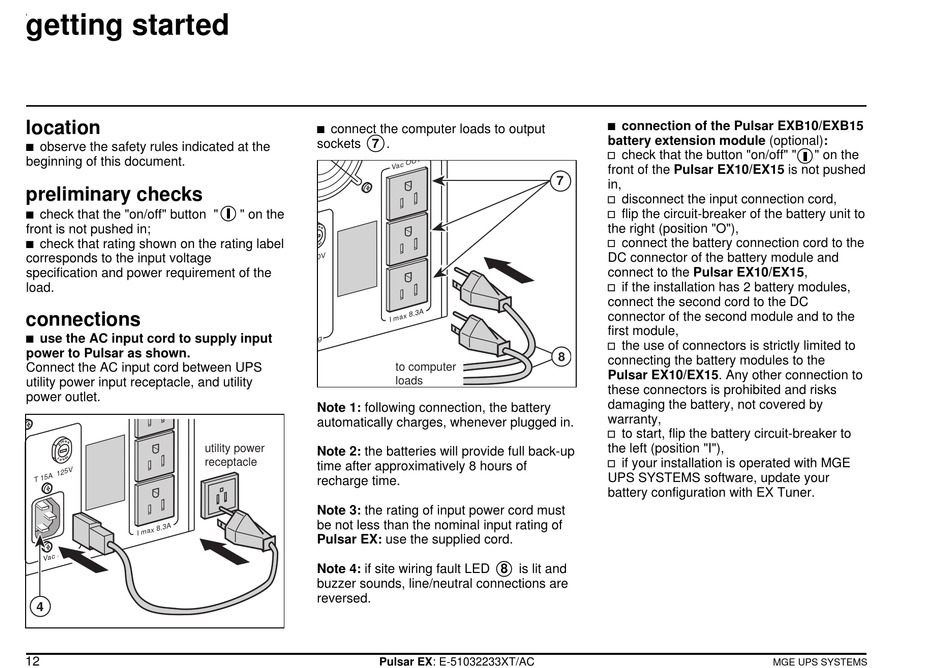

getting started

location

observe the safety rules indicated at the
beginning of this document.

preliminary checks

check that the "on/off" button "
front is not pushed in;
check that rating shown on the rating label
corresponds to the input voltage
specification and power requirement of the
load.

connections

use the AC input cord to supply input
power to Pulsar as shown.
Connect the AC input cord between UPS
utility power input receptacle, and utility
power outlet.
? utility power
receptacle
I N
V a c
4
12
connect the computer loads to output
sockets 7 .
O U T
V a c
" on the
?
n g
to computer
loads
Note 1: following connection, the battery
automatically charges, whenever plugged in.
Note 2: the batteries will provide full back-up
time after approximatively 8 hours of
recharge time.
Note 3: the rating of input power cord must
be not less than the nominal input rating of
Pulsar EX: use the supplied cord.
Note 4: if site wiring fault LED 8 is lit and
buzzer sounds, line/neutral connections are
reversed.
Pulsar EX: E-51032233XT/AC
connection of the Pulsar EXB10/EXB15
battery extension module (optional):
check that the button "on/off" "
front of the Pulsar EX10/EX15 is not pushed
7
in,
disconnect the input connection cord,
flip the circuit-breaker of the battery unit to
the right (position "O"),
connect the battery connection cord to the
DC connector of the battery module and
connect to the Pulsar EX10/EX15,
if the installation has 2 battery modules,
connect the second cord to the DC
connector of the second module and to the
first module,
the use of connectors is strictly limited to
8
connecting the battery modules to the
Pulsar EX10/EX15. Any other connection to
these connectors is prohibited and risks
damaging the battery, not covered by
warranty,
to start, flip the battery circuit-breaker to
the left (position "I"),
if your installation is operated with MGE
UPS SYSTEMS software, update your
battery configuration with EX Tuner.
" on the
