Installation instructions
This appliance must be installed by an authorised person
and in compliance with:
1. AS 5601 'Gas Installations' (Australia) or nZS
5261 'Installation of Gas Burning Appliances and
Equipment' (new Zealand) or the relevant installation
code for gas appliances of your country.
2. The local gas fitting regulations, municipal building
codes, electrical wiring regulations and any other
relevant statutory regulations.
3. The particular instructions as given below.

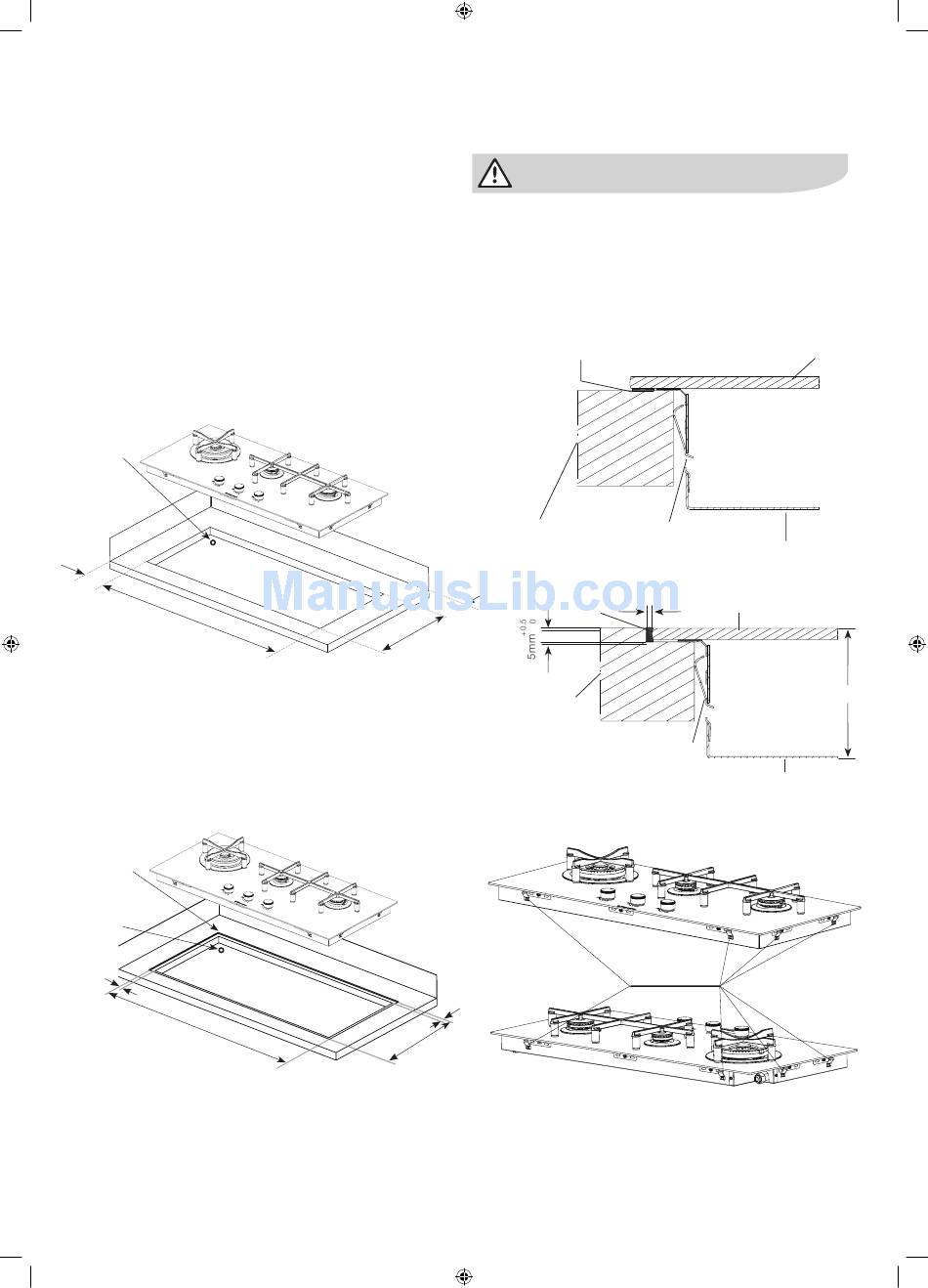

Figure 5a – Proud Fit
Gas supply
connection
location
110 min*
880
*to combustible surface
Figure 5b – Flush Fit
R7 TYP
Gas supply
connection
location
17
+ 1
914
0
The flush fit recess is 5mm deep. Refer Figure 6b for side
view detail.
caution
Cooktops are supplied set up for natural gas (NG).
To use on LPG, the injectors must be changed using
the conversion kit supplied. Refer LP conversion on
page 10.
4. A certificate of compliance MUST be given to the
customer after the application is successfully installed.
Figure 6a – Proud Fit
Foam seal
Benchtop
Figure 6b – Flush Fit
Silicone
133 min*
380
Benchtop
Figure 7
17
+ 1
414
0
Hob
Spring clip
Burner box
2mm
Hob
Spring clip
Burner box
positioning clip
location
46mm
